CPU2006 license: | 872 | Test date: | Dec-2010 |
---|---|---|---|
Test sponsor: | HITACHI | Hardware Availability: | Apr-2010 |
Tested by: | HITACHI | Software Availability: | Dec-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5630 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.40 GHz |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1, 2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC, running at 1066 MHz) |
Disk Subsystem: | 4 x 146 GB 10000 rpm SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 5.4.3, Advanced Platform, Kernel 2.6.18-164.9.1.el5 on an x86_64 |
Compiler: | Intel C++ Compiler 11.1 for Linux Build 20091012 Package ID: l_cproc_p_11.1.059 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

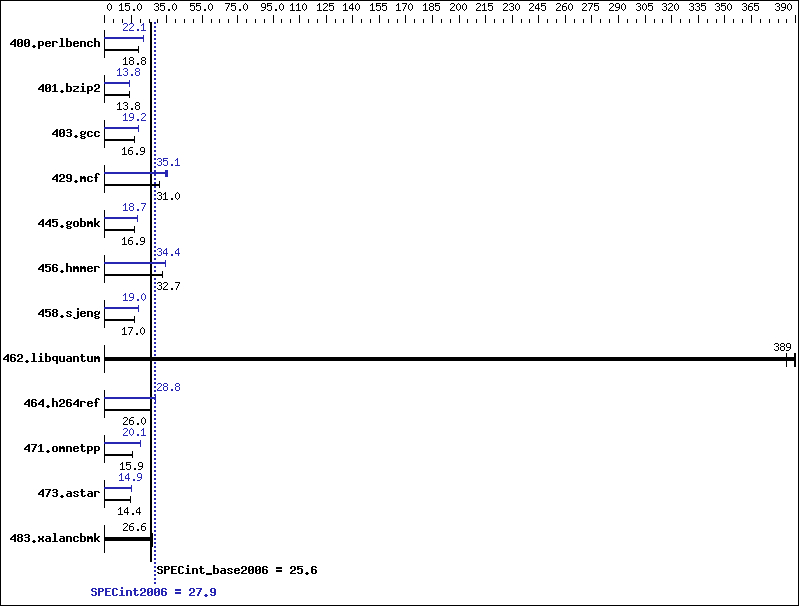

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 520 | 18.8 | 519 | 18.8 | 520 | 18.8 | 442 | 22.1 | 441 | 22.1 | 442 | 22.1 |
401.bzip2 | 699 | 13.8 | 699 | 13.8 | 698 | 13.8 | 697 | 13.8 | 698 | 13.8 | 698 | 13.8 |
403.gcc | 477 | 16.9 | 475 | 16.9 | 475 | 16.9 | 420 | 19.2 | 420 | 19.2 | 419 | 19.2 |
429.mcf | 295 | 31.0 | 295 | 31.0 | 294 | 31.1 | 268 | 34.1 | 260 | 35.1 | 259 | 35.2 |
445.gobmk | 621 | 16.9 | 622 | 16.9 | 622 | 16.9 | 562 | 18.7 | 561 | 18.7 | 560 | 18.7 |
456.hmmer | 285 | 32.8 | 286 | 32.7 | 285 | 32.7 | 271 | 34.4 | 271 | 34.4 | 271 | 34.4 |
458.sjeng | 711 | 17.0 | 710 | 17.0 | 710 | 17.0 | 636 | 19.0 | 637 | 19.0 | 636 | 19.0 |
462.libquantum | 53.8 | 385 | 53.1 | 390 | 53.2 | 389 | 53.8 | 385 | 53.1 | 390 | 53.2 | 389 |
464.h264ref | 850 | 26.0 | 848 | 26.1 | 850 | 26.0 | 770 | 28.8 | 768 | 28.8 | 769 | 28.8 |
471.omnetpp | 394 | 15.9 | 394 | 15.9 | 393 | 15.9 | 312 | 20.1 | 312 | 20.1 | 312 | 20.0 |
473.astar | 488 | 14.4 | 486 | 14.4 | 488 | 14.4 | 470 | 14.9 | 470 | 14.9 | 469 | 15.0 |
483.xalancbmk | 259 | 26.6 | 258 | 26.7 | 261 | 26.5 | 259 | 26.6 | 258 | 26.7 | 261 | 26.5 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
BIOS Settings: Intel HT Technology = Disabled Data Reuse Optimization = Disabled
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
429.mcf: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m64 | |
471.omnetpp: | icpc -m32 |
400.perlbench: | -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
