SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

Tyan YR190B8228,
AMD Opteron 4122

SPECfp®2006 = 26.9

CPU2006 license: 49 Test date: Nov-2010
Test sponsor: Advanced Micro Devices Hardware Availability: Aug-2010
Tested by: Advanced Micro Devices Software Availability: May-2010

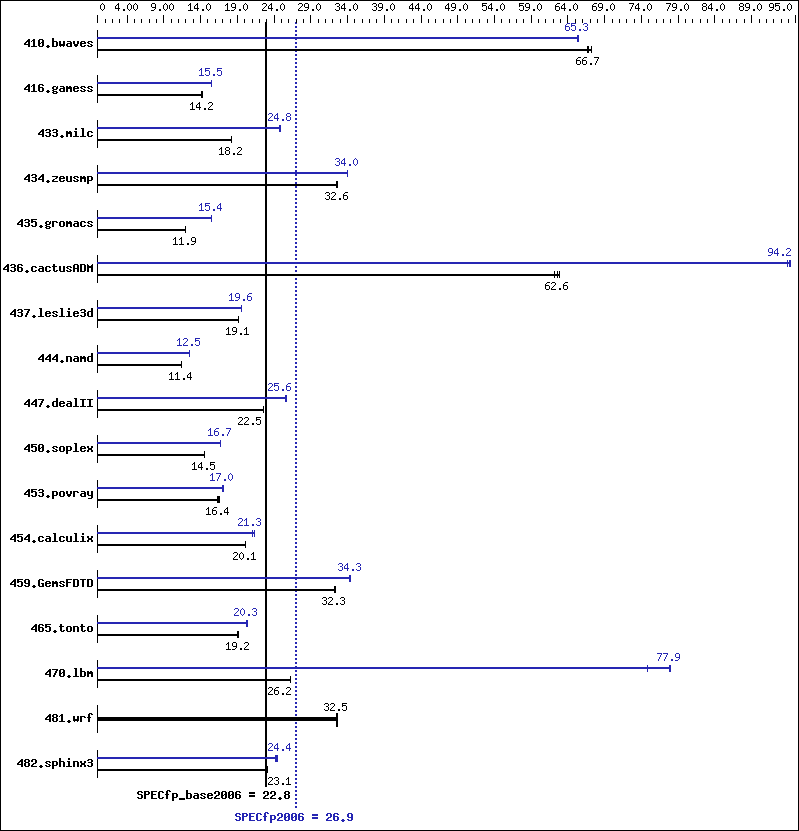

Benchmark results graph
Hardware
CPU Name: AMD Opteron 4122
CPU Characteristics:
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (2 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 128 GB SATA SSD
Crucial RealSSD C300 CTFDDAC128MAG-1G1
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64),
Kernel 2.6.27.19-5-default
Compiler: x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 204 66.6 202 67.2 204 66.7 208 65.3 208 65.3 208 65.4
416.gamess 1376 14.2 1382 14.2 1374 14.2 1265 15.5 1266 15.5 1261 15.5
433.milc 505 18.2 504 18.2 505 18.2 370 24.8 370 24.8 370 24.8
434.zeusmp 279 32.6 279 32.6 279 32.6 268 34.0 268 34.0 268 34.0
435.gromacs 599 11.9 599 11.9 599 11.9 462 15.4 462 15.4 462 15.4
436.cactusADM 191 62.6 192 62.2 190 62.9 127 94.2 127 94.3 127 93.8
437.leslie3d 492 19.1 492 19.1 490 19.2 481 19.6 481 19.6 481 19.5
444.namd 705 11.4 706 11.4 706 11.4 642 12.5 642 12.5 642 12.5
447.dealII 508 22.5 508 22.5 508 22.5 447 25.6 446 25.6 447 25.6
450.soplex 575 14.5 576 14.5 574 14.5 500 16.7 499 16.7 499 16.7
453.povray 323 16.4 322 16.5 326 16.3 311 17.1 312 17.0 314 16.9
454.calculix 411 20.1 411 20.1 411 20.1 387 21.3 391 21.1 387 21.3
459.GemsFDTD 329 32.3 329 32.3 328 32.3 309 34.4 309 34.3 309 34.3
465.tonto 513 19.2 516 19.1 513 19.2 485 20.3 486 20.2 482 20.4
470.lbm 524 26.2 524 26.2 524 26.2 176 77.9 176 77.9 184 74.8
481.wrf 342 32.6 343 32.5 343 32.5 342 32.6 343 32.5 343 32.5
482.sphinx3 844 23.1 841 23.2 845 23.1 805 24.2 800 24.4 798 24.4

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=1000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

powersave -f was used to set the CPU frequency to its maximum.

Binaries were compiled on SLES10 SP2 with binutils 2.18

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002-speed-libs-revA/64:/root/work/cpu2006/amd1002-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

 -march=barcelona   -Ofast   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0   -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=barcelona   -Ofast   -apo   -CG:movnti=1   -CG:local_sched_alg=1   -CG:locs_shallow_depth=1   -CG:compute_to=on   -HP:bdt=2m:heap=2m   -LNO:prefetch=3
470.lbm:  -march=barcelona   -Ofast   -mso   -apo   -CG:sse_cse_regs=0   -LNO:prefetch_ahead=4   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:compute_to=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -OPT:alias=restricted   -m3dnow   -IPA:inline=off
482.sphinx3:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:local_sched_alg=1   -INLINE:aggressive=on

C++ benchmarks:

444.namd:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -CG:compute_to=on   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m:heap=2m
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:  -march=barcelona   -Ofast   -apo   -OPT:malloc_alg=2   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -LNO:blocking=off   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ignore_feedback=off   -LNO:apo_use_feedback=on   -WOPT:aggstr=0
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:prefetch=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -march=barcelona   -Ofast   -apo   -LNO:blocking=off   -LNO:interchange=off   -LNO:fusion_peeling_limit=0   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -CG:compute_to=on   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=barcelona   -Ofast   -apo   -OPT:unroll_size=256   -LNO:prefetch_ahead=4   -LNO:parallel_overhead=32768   -GRA:prioritize_by_density=on   -m3dnow   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=barcelona   -Ofast   -apo   -LNO:fission=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:local_sched_alg=1   -HP
465.tonto:  -march=barcelona   -Ofast   -apo   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -apo   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -LANG:heap_allocation_threshold=1000   -LNO:prefetch_ahead=1   -HP:bdt=2m:heap=2m
454.calculix:  -march=barcelona   -Ofast   -LNO:prefetch_ahead=30   -CG:load_exe=0   -CG:ptr_load_use=0   -CG:local_sched_alg=2   -CG:compute_to=on   -WOPT:unroll=2   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m   -apo
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 15:23:31 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 3 February 2011.
