SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

PRIMERGY TX300 S6, Intel Xeon E5606, 2.13 GHz

CPU2006 license: 19 Test date: Dec-2010
Test sponsor: Fujitsu Hardware Availability: Feb-2011
Tested by: Fujitsu Software Availability: Nov-2010

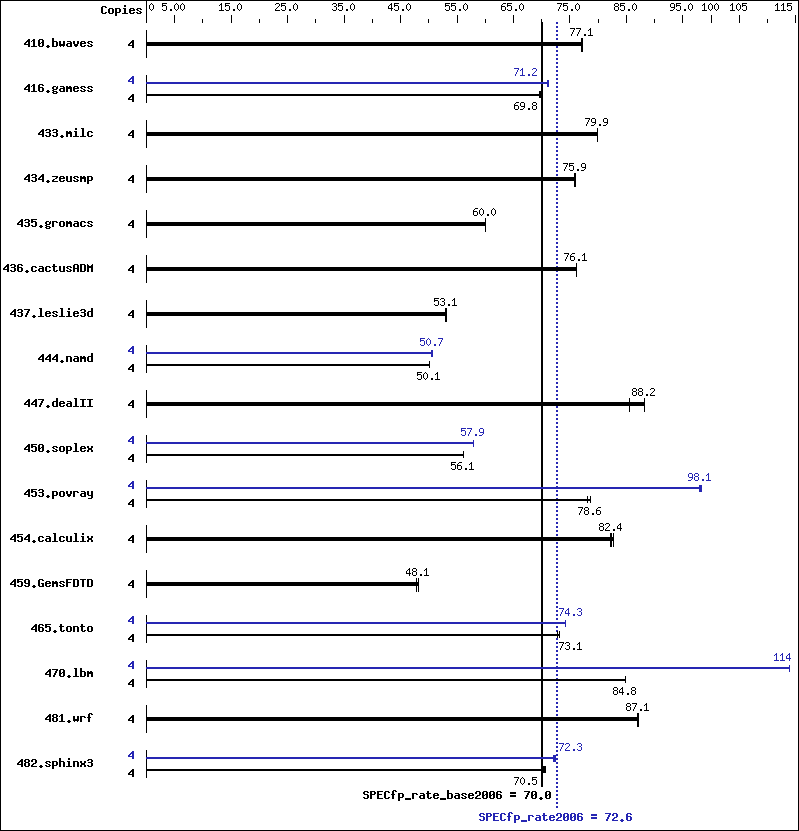

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5606
CPU Characteristics:
CPU MHz: 2133
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB 2Rx4 PC3-10600R-9, ECC, running at
1067 MHz and CL7)
Disk Subsystem: 1 x SAS, 300 GB, 10000 RPM
Other Hardware: --
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64) with SP1,
Kernel 2.6.32.12-0.7-default
Compiler: Intel C++ and Fortran Intel 64 Compiler XE
for applications running on Intel 64
Version 12.0.0.082 Build 20101006
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: none

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 706 77.0 704 77.3 705 77.1 4 706 77.0 704 77.3 705 77.1
416.gamess 4 1123 69.8 1121 69.9 1125 69.6 4 1100 71.2 1099 71.2 1102 71.1
433.milc 4 460 79.8 460 79.9 460 79.9 4 460 79.8 460 79.9 460 79.9
434.zeusmp 4 480 75.8 479 75.9 479 76.0 4 480 75.8 479 75.9 479 76.0
435.gromacs 4 476 60.0 475 60.1 476 60.0 4 476 60.0 475 60.1 476 60.0
436.cactusADM 4 628 76.1 627 76.2 628 76.1 4 628 76.1 627 76.2 628 76.1
437.leslie3d 4 708 53.1 709 53.0 707 53.2 4 708 53.1 709 53.0 707 53.2
444.namd 4 640 50.1 641 50.1 640 50.1 4 635 50.5 633 50.7 633 50.7
447.dealII 4 519 88.2 519 88.2 535 85.6 4 519 88.2 519 88.2 535 85.6
450.soplex 4 595 56.1 595 56.1 595 56.1 4 577 57.8 575 58.0 576 57.9
453.povray 4 271 78.6 272 78.2 271 78.6 4 216 98.3 217 98.1 217 98.0
454.calculix 4 399 82.7 401 82.3 400 82.4 4 399 82.7 401 82.3 400 82.4
459.GemsFDTD 4 880 48.2 888 47.8 882 48.1 4 880 48.2 888 47.8 882 48.1
465.tonto 4 538 73.1 538 73.1 540 72.9 4 530 74.3 530 74.3 531 74.2
470.lbm 4 648 84.8 648 84.8 648 84.8 4 483 114   482 114   483 114
481.wrf 4 512 87.2 513 87.1 514 86.9 4 512 87.2 513 87.1 514 86.9
482.sphinx3 4 1110 70.3 1106 70.5 1103 70.7 4 1080 72.2 1078 72.3 1076 72.4

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 BIOS configuration:
 Data Reuse Optimization = Disable

General Notes

 This result was measured on the PRIMERGY TX300 S6. The PRIMERGY TX300 S6
 and the PRIMERGY TX300 S6 are electronically equivalent.

 For information about Fujitsu please visit: http://www.fujitsu.com
 Binaries were compiled on SLES 10 SP1 with Binutils 2.18.50.0.7.20080502

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -ansi-alias

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -ansi-alias

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -ansi-alias

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
482.sphinx3:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3   -ansi-alias   -opt-prefetch   -auto-ilp32
482.sphinx3:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2

C++ benchmarks:

444.namd:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revA.20110222.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revA.20110222.00.xml.
