CPU2006 license: | 3 | Test date: | Feb-2011 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Feb-2011 |
Tested by: | Hewlett-Packard Company | Software Availability: | Aug-2010 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6176 |
CPU Characteristics: | |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
Other Cache: | None |
Memory: | 64 GB (16 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 300 GB 10 K SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | x86 Open64 4.2.4 Compiler Suite (from AMD) |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

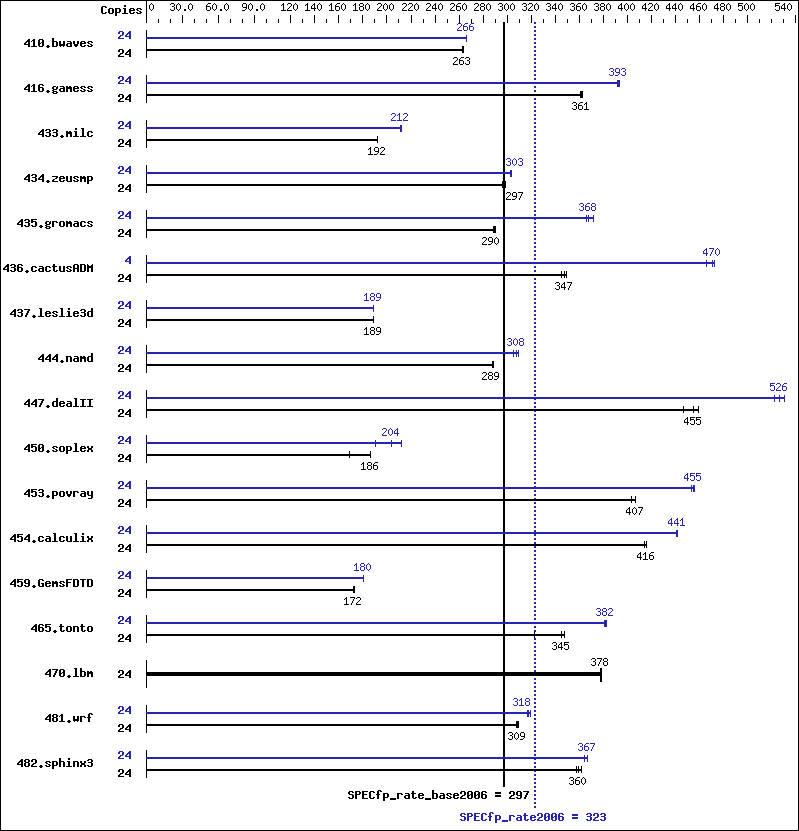

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1241 | 263 | 1237 | 264 | 1239 | 263 | 24 | 1224 | 266 | 1224 | 267 | 1224 | 266 |
416.gamess | 24 | 1297 | 362 | 1300 | 361 | 1301 | 361 | 24 | 1200 | 392 | 1194 | 394 | 1196 | 393 |
433.milc | 24 | 1147 | 192 | 1146 | 192 | 1147 | 192 | 24 | 1041 | 212 | 1041 | 212 | 1041 | 212 |
434.zeusmp | 24 | 734 | 297 | 737 | 296 | 732 | 298 | 24 | 721 | 303 | 719 | 304 | 720 | 303 |
435.gromacs | 24 | 592 | 290 | 595 | 288 | 591 | 290 | 24 | 468 | 366 | 461 | 372 | 466 | 368 |
436.cactusADM | 24 | 830 | 345 | 826 | 347 | 822 | 349 | 4 | 101 | 472 | 103 | 466 | 102 | 470 |
437.leslie3d | 24 | 1195 | 189 | 1193 | 189 | 1197 | 188 | 24 | 1195 | 189 | 1195 | 189 | 1195 | 189 |
444.namd | 24 | 669 | 288 | 667 | 289 | 666 | 289 | 24 | 625 | 308 | 630 | 306 | 621 | 310 |
447.dealII | 24 | 598 | 459 | 603 | 455 | 615 | 447 | 24 | 526 | 522 | 522 | 526 | 517 | 531 |
450.soplex | 24 | 1188 | 169 | 1074 | 186 | 1072 | 187 | 24 | 1053 | 190 | 983 | 204 | 944 | 212 |
453.povray | 24 | 317 | 403 | 314 | 407 | 314 | 407 | 24 | 282 | 453 | 281 | 455 | 280 | 456 |
454.calculix | 24 | 476 | 416 | 478 | 414 | 477 | 416 | 24 | 448 | 441 | 449 | 441 | 448 | 442 |
459.GemsFDTD | 24 | 1471 | 173 | 1481 | 172 | 1481 | 172 | 24 | 1411 | 180 | 1413 | 180 | 1410 | 181 |
465.tonto | 24 | 731 | 323 | 679 | 348 | 685 | 345 | 24 | 618 | 382 | 620 | 381 | 618 | 382 |
470.lbm | 24 | 873 | 378 | 871 | 379 | 873 | 378 | 24 | 873 | 378 | 871 | 379 | 873 | 378 |
481.wrf | 24 | 868 | 309 | 867 | 309 | 871 | 308 | 24 | 845 | 317 | 844 | 318 | 838 | 320 |
482.sphinx3 | 24 | 1300 | 360 | 1293 | 362 | 1306 | 358 | 24 | 1276 | 367 | 1284 | 364 | 1274 | 367 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm.nr_hugepages=10800 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
BIOS Configuration: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "450" LD_LIBRARY_PATH = "/cpu2006/amd1002mc-rate-libs-revC/64:/cpu2006/amd1002mc-rate-libs-revC/32" OMP_NUM_THREADS = "6" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-march=barcelona -mso -Ofast -OPT:malloc_alg=1 -HP:bdt=2m |
-march=barcelona -mso -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -HP:bdt=2m |
-march=barcelona -mso -Ofast -HP |
-march=barcelona -mso -Ofast -OPT:malloc_alg=1 -HP:bdt=2m -HP |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | -march=barcelona -mso -Ofast -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -HP:bdt=2m:heap=2m -LNO:prefetch=3 |
470.lbm: | basepeak = yes |
482.sphinx3: | -march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on |
