SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Fire X4270 M2 (Intel Xeon X5690 3.47 GHz)

SPECfp®2006 = 64.2

CPU2006 license: 6 Test date: Feb-2011
Test sponsor: Oracle Corporation Hardware Availability: Mar-2011
Tested by: Oracle Corporation Software Availability: Nov-2010

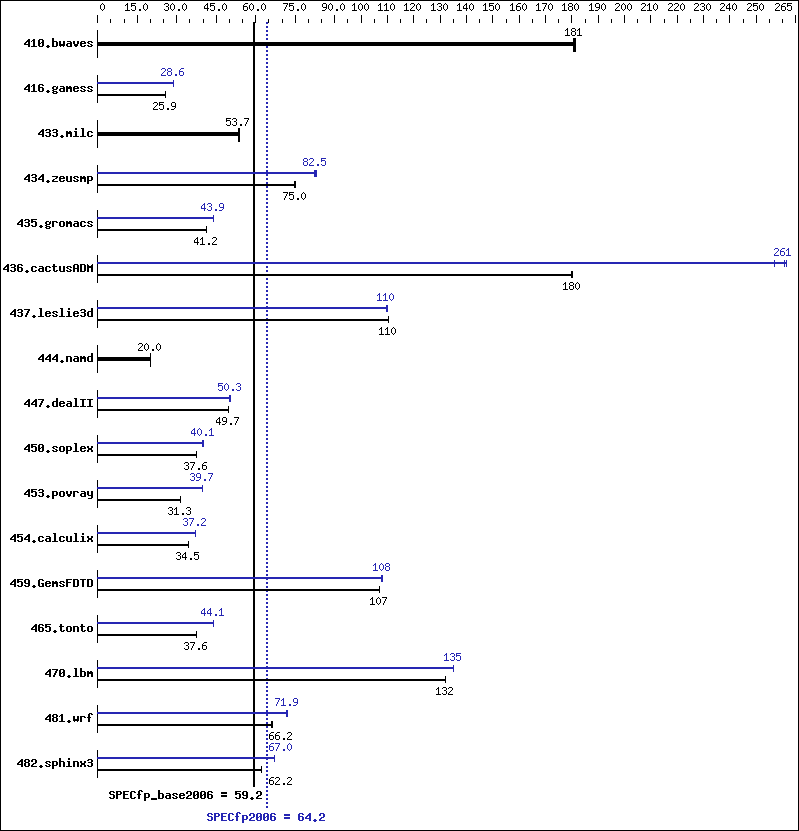

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5690
CPU Characteristics: Intel Turbo Boost Technology up to 3.73 GHz
CPU MHz: 3467
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 300 GB 10000 RPM SAS2
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: Yes
File System: ufs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: Microquill SmartHeap V9.01
Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 75.3 180   75.1 181   75.0 181   75.3 180   75.1 181   75.0 181
416.gamess 757   25.9 757   25.9 757   25.9 685   28.6 685   28.6 685   28.6
433.milc 171   53.7 171   53.6 171   53.7 171   53.7 171   53.6 171   53.7
434.zeusmp 122   74.9 121   75.0 121   75.1 111   82.2 110   82.5 110   82.9
435.gromacs 173   41.2 173   41.3 173   41.2 162   44.0 163   43.8 163   43.9
436.cactusADM 66.3 180   66.3 180   66.4 180   45.7 262   46.5 257   45.8 261
437.leslie3d 85.3 110   85.2 110   85.3 110   85.6 110   85.7 110   85.5 110
444.namd 402   20.0 402   20.0 402   20.0 402   20.0 402   20.0 402   20.0
447.dealII 230   49.7 230   49.7 230   49.7 228   50.1 228   50.3 227   50.4
450.soplex 222   37.6 222   37.6 222   37.6 208   40.1 208   40.2 211   39.6
453.povray 170   31.2 169   31.5 170   31.3 134   39.7 134   39.7 134   39.6
454.calculix 241   34.3 239   34.5 239   34.5 221   37.2 222   37.2 222   37.2
459.GemsFDTD 99.3 107   99.3 107   99.3 107   98.4 108   98.3 108   98.3 108
465.tonto 262   37.6 262   37.6 261   37.6 223   44.1 223   44.1 223   44.0
470.lbm 104   132   104   132   104   132   102   135   102   135   102   135
481.wrf 169   66.3 169   66.0 169   66.2 155   71.9 155   71.9 156   71.8
482.sphinx3 314   62.2 313   62.3 313   62.2 291   67.0 291   67.0 291   67.0

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Submit Notes

 The config file option 'submit' was used.
 pbind was used to bind the process to a thread

Operating System Notes

 ulimit -s unlimited  (shell)

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    lpg_alloc_prefer=1

Platform Notes

Load Default BIOS Settings and then change the following
  Hardware Prefetch Enabled
  Adjacent Cache Line Prefetch Enabled
  L1 Data Prefetch Enabled

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "12"
SUNW_MP_PROCBIND = "23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0"
SUNW_MP_THR_IDLE = "SPIN"

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xautopar   -xreduction

C++ benchmarks:

 -fast   -xipo=2   -m64   -xalias_level=compatible   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xautopar   -xreduction

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xautopar   -xreduction   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xautopar   -xreduction

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -m64
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=no%simd   -xalias_level=compatible   -library=stlport4   -qoption iropt -Atile:skewp   -qoption iropt -Ainline:cs=700

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -xvector=no%simd
434.zeusmp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -Qoption ube -xprefetch_mult=2   -xautopar   -xreduction
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -stackvar   -xprefetch=no%auto   -xalias   -xautopar   -xreduction   -Qoption iropt -Aparallel:nthreads=6   -lumem

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xvector=no%simd   -xipo=2   -m64   -xpagesize=2M   -Qoption ube -fsimple=3   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xtarget=nehalem   -m64   -xautopar   -xreduction   -lmvec   -xpagesize=2M   -W2,-Aparallel:nthreads=24   -Qoption iropt -Aparallel:nthreads=24   -lumem
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xunroll=3   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=4K   -xprefetch=no%auto   -xautopar   -xreduction   -Qoption iropt -Aparallel:nthreads=6

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.20110303.html,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.20101027.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.20110303.xml,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.20101027.xml.
