CPU2006 license: | 19 | Test date: | Feb-2011 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Feb-2011 |
Tested by: | Fujitsu | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5647 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 2933 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x SAS, 300 GB, 10000 RPM |
Other Hardware: | -- |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

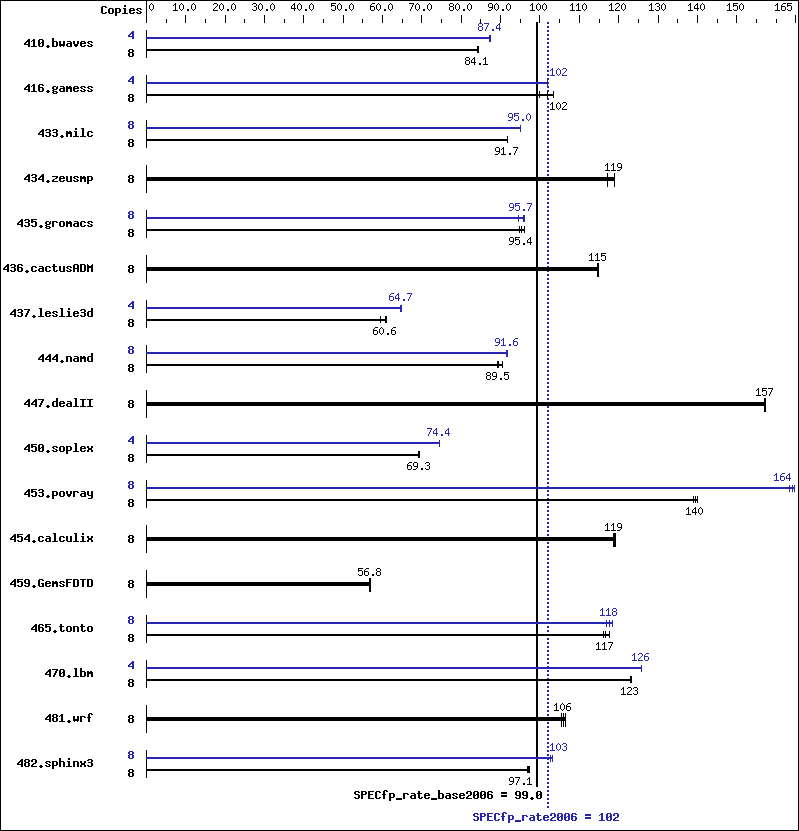

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 1288 | 84.4 | 1292 | 84.1 | 1293 | 84.1 | 4 | 622 | 87.4 | 621 | 87.5 | 623 | 87.3 |
416.gamess | 8 | 1567 | 100 | 1516 | 103 | 1537 | 102 | 4 | 768 | 102 | 769 | 102 | 769 | 102 |
433.milc | 8 | 801 | 91.7 | 801 | 91.7 | 801 | 91.7 | 8 | 773 | 95.0 | 773 | 95.1 | 773 | 95.0 |
434.zeusmp | 8 | 613 | 119 | 621 | 117 | 612 | 119 | 8 | 613 | 119 | 621 | 117 | 612 | 119 |
435.gromacs | 8 | 599 | 95.4 | 602 | 94.9 | 595 | 95.9 | 8 | 604 | 94.6 | 595 | 95.9 | 597 | 95.7 |
436.cactusADM | 8 | 833 | 115 | 834 | 115 | 833 | 115 | 8 | 833 | 115 | 834 | 115 | 833 | 115 |
437.leslie3d | 8 | 1240 | 60.6 | 1266 | 59.4 | 1232 | 61.1 | 4 | 583 | 64.5 | 581 | 64.7 | 581 | 64.7 |
444.namd | 8 | 710 | 90.4 | 717 | 89.5 | 720 | 89.1 | 8 | 701 | 91.6 | 700 | 91.6 | 699 | 91.8 |
447.dealII | 8 | 582 | 157 | 581 | 157 | 582 | 157 | 8 | 582 | 157 | 581 | 157 | 582 | 157 |
450.soplex | 8 | 963 | 69.3 | 963 | 69.3 | 964 | 69.2 | 4 | 448 | 74.4 | 448 | 74.4 | 448 | 74.4 |
453.povray | 8 | 304 | 140 | 305 | 140 | 306 | 139 | 8 | 259 | 164 | 261 | 163 | 258 | 165 |
454.calculix | 8 | 554 | 119 | 555 | 119 | 556 | 119 | 8 | 554 | 119 | 555 | 119 | 556 | 119 |
459.GemsFDTD | 8 | 1496 | 56.7 | 1493 | 56.8 | 1492 | 56.9 | 8 | 1496 | 56.7 | 1493 | 56.8 | 1492 | 56.9 |
465.tonto | 8 | 670 | 118 | 675 | 117 | 677 | 116 | 8 | 674 | 117 | 664 | 119 | 669 | 118 |
470.lbm | 8 | 893 | 123 | 893 | 123 | 894 | 123 | 4 | 437 | 126 | 437 | 126 | 437 | 126 |
481.wrf | 8 | 839 | 107 | 847 | 106 | 843 | 106 | 8 | 839 | 107 | 847 | 106 | 843 | 106 |
482.sphinx3 | 8 | 1602 | 97.3 | 1610 | 96.8 | 1605 | 97.1 | 8 | 1513 | 103 | 1517 | 103 | 1517 | 103 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Hugepages were not configured on the system
BIOS configuration: Data Reuse Optimization = Disable Performance/Power Setting = Traditional
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
