CPU2006 license: | 9019 | Test date: | Feb-2011 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | Mar-2011 |
Tested by: | Cisco Systems | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5680 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
CPU MHz: | 3333 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 ,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB 2Rx4 PC3L-10600R-9 ECC) |
Disk Subsystem: | 73 GB SAS, 15K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 Binaries compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5 |

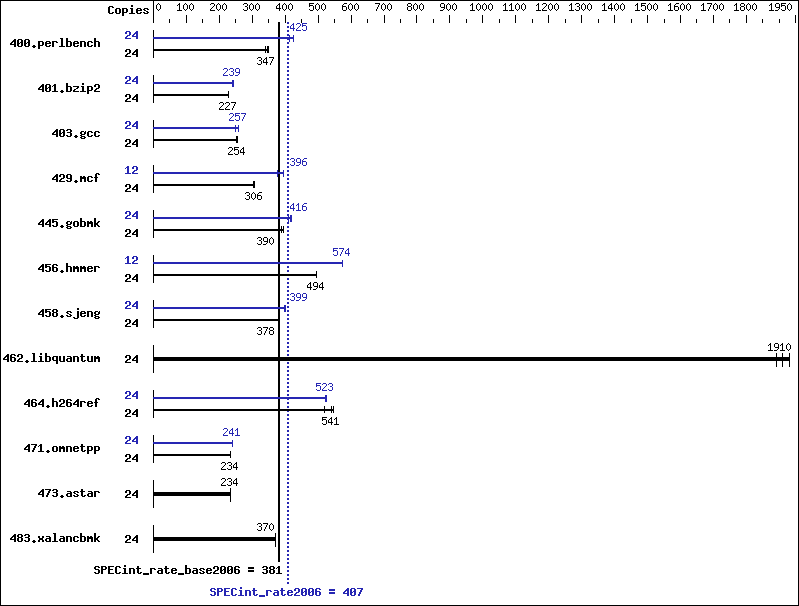

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 673 | 348 | 692 | 339 | 676 | 347 | 24 | 570 | 412 | 552 | 425 | 552 | 425 |
401.bzip2 | 24 | 1021 | 227 | 1022 | 227 | 1015 | 228 | 24 | 971 | 239 | 970 | 239 | 957 | 242 |
403.gcc | 24 | 760 | 254 | 761 | 254 | 765 | 253 | 24 | 748 | 258 | 753 | 257 | 774 | 250 |
429.mcf | 24 | 724 | 302 | 715 | 306 | 714 | 306 | 12 | 276 | 396 | 290 | 378 | 277 | 396 |
445.gobmk | 24 | 638 | 394 | 647 | 389 | 646 | 390 | 24 | 606 | 416 | 603 | 418 | 614 | 410 |
456.hmmer | 24 | 453 | 494 | 453 | 494 | 454 | 494 | 12 | 195 | 574 | 195 | 575 | 195 | 574 |
458.sjeng | 24 | 768 | 378 | 768 | 378 | 767 | 378 | 24 | 728 | 399 | 728 | 399 | 726 | 400 |
462.libquantum | 24 | 258 | 1930 | 260 | 1910 | 263 | 1890 | 24 | 258 | 1930 | 260 | 1910 | 263 | 1890 |
464.h264ref | 24 | 981 | 541 | 971 | 547 | 1022 | 520 | 24 | 1019 | 521 | 1016 | 523 | 1010 | 526 |
471.omnetpp | 24 | 641 | 234 | 641 | 234 | 641 | 234 | 24 | 624 | 240 | 623 | 241 | 623 | 241 |
473.astar | 24 | 720 | 234 | 716 | 235 | 719 | 234 | 24 | 720 | 234 | 716 | 235 | 719 | 234 |
483.xalancbmk | 24 | 448 | 370 | 446 | 371 | 448 | 370 | 24 | 448 | 370 | 446 | 371 | 448 | 370 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
ulimit -s unlimited was used to set the stacksize to unlimited prior to run Large pages were not enabled for this run
BIOS Configuration : Data Reuse Optimization = Disabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
