SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Huawei

Huawei XH620, Intel Xeon X5660

SPECfp®2006 = 48.4

CPU2006 license: 3175 Test date: Mar-2011
Test sponsor: Huawei Hardware Availability: Apr-2010
Tested by: Huawei Software Availability: Jan-2011

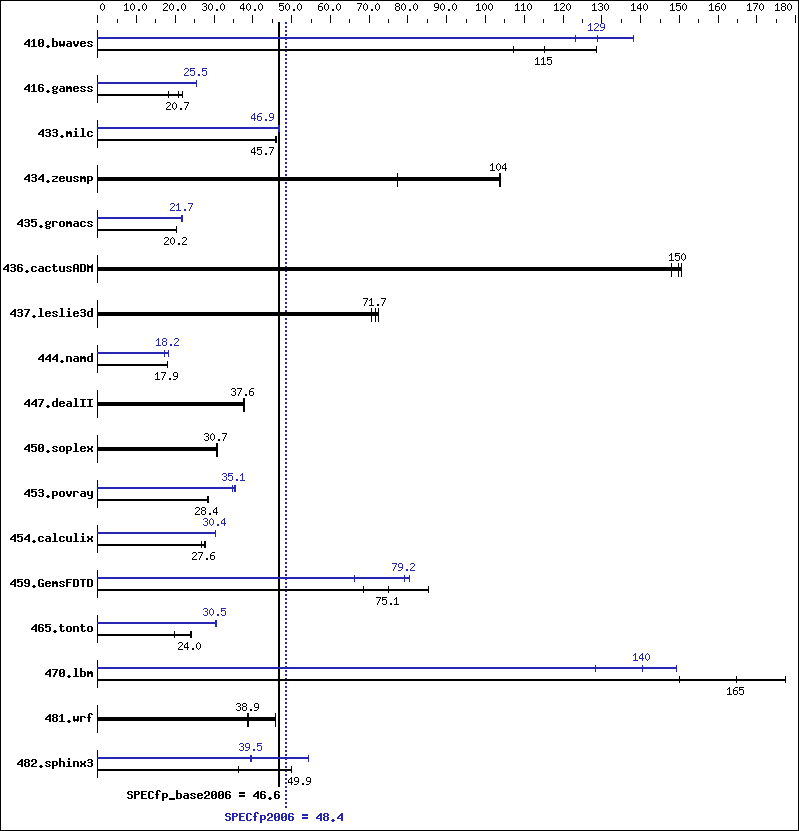

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5660
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 300 GB SAS, 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64), Kernel
2.6.27.19-5-smp
Compiler: Intel C++ and Fortran Intel 64 Compiler XE
for applications running on Intel 64
Version 12.0.1.116 Build 20101116
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 106   129   127   107   118   115   105   129   98.3 138   110   123
416.gamess 946   20.7 1075   18.2 900   21.7 768   25.5 770   25.4 768   25.5
433.milc 201   45.7 199   46.1 201   45.7 197   46.5 196   46.9 196   46.9
434.zeusmp 87.6 104   87.8 104   118   77.2 87.6 104   87.8 104   118   77.2
435.gromacs 353   20.2 354   20.2 353   20.3 329   21.7 326   21.9 328   21.7
436.cactusADM 79.3 151   79.7 150   80.8 148   79.3 151   79.7 150   80.8 148
437.leslie3d 130   72.5 131   71.7 133   70.7 130   72.5 131   71.7 133   70.7
444.namd 448   17.9 447   17.9 448   17.9 469   17.1 440   18.2 441   18.2
447.dealII 305   37.6 305   37.5 303   37.8 305   37.6 305   37.5 303   37.8
450.soplex 271   30.8 271   30.7 271   30.7 271   30.8 271   30.7 271   30.7
453.povray 187   28.5 188   28.3 187   28.4 150   35.4 151   35.1 153   34.7
454.calculix 297   27.8 298   27.6 307   26.8 271   30.4 271   30.4 271   30.4
459.GemsFDTD 141   75.1 124   85.4 155   68.4 134   79.2 132   80.3 160   66.2
465.tonto 408   24.1 410   24.0 497   19.8 323   30.5 322   30.6 323   30.5
470.lbm 77.4 177   91.6 150   83.4 165   92.1 149   97.8 140   107   128
481.wrf 244   45.8 288   38.9 289   38.7 244   45.8 288   38.9 289   38.7
482.sphinx3 390   49.9 391   49.9 535   36.4 359   54.3 495   39.4 493   39.5

Operating System Notes

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
Hugepages were not configured on the system.

Platform Notes

Data Reuse disabled in BIOS.

General Notes

Binaries compiled on RHEL 5.5
 OMP_NUM_THREADS set to number of cores

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch   -ansi-alias

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -ansi-alias

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -static   -auto-ilp32   -ansi-alias
470.lbm:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -parallel   -ansi-alias   -static   -auto-ilp32
482.sphinx3:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -ansi-alias   -parallel

C++ benchmarks:

444.namd:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT

Fortran benchmarks:

410.bwaves:  -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -parallel   -static
416.gamess:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-   -static
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -opt-prefetch   -parallel   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
465.tonto:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -inline-calloc   -opt-malloc-options=3   -auto   -unroll4   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT

Benchmarks using both Fortran and C:

435.gromacs:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -static   -auto-ilp32   -ansi-alias
436.cactusADM:  basepeak = yes
454.calculix:  -xSSE4.2   -ipo   -O3   -no-prec-div   -auto-ilp32   -ansi-alias
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/HUAWEI-platform-linux64-revA.html,
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/HUAWEI-platform-linux64-revA.xml,
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 21:16:23 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 15 April 2011.
