SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

SPARC Enterprise M3000

CPU2006 license: 19 Test date: Feb-2011
Test sponsor: Fujitsu Hardware Availability: Apr-2011
Tested by: Fujitsu Software Availability: Sep-2010

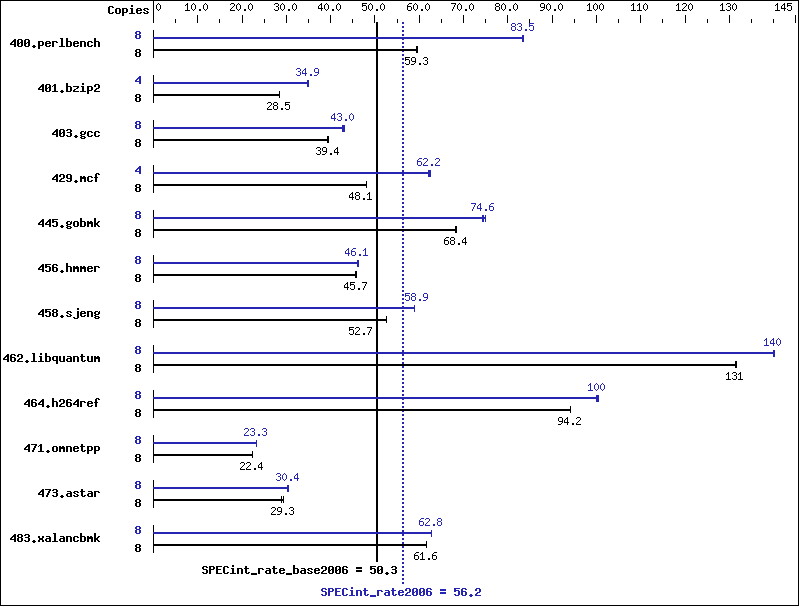

Benchmark results graph
Hardware
CPU Name: SPARC64 VII+
CPU Characteristics:
CPU MHz: 2860
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5632 KB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 32 GB (8 x 4 GB, 2-way interleaved)
Disk Subsystem: 1 x 300 GB 10,000 RPM SAS
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 1313 59.5 1319 59.3 1317 59.3 8 935 83.6 938 83.4 936 83.5
401.bzip2 8 2723 28.4 2711 28.5 2710 28.5 4 1107 34.9 1105 34.9 1104 35.0
403.gcc 8 1634 39.4 1634 39.4 1643 39.2 8 1499 43.0 1511 42.6 1492 43.2
429.mcf 8 1517 48.1 1517 48.1 1520 48.0 4 588 62.1 582 62.6 586 62.2
445.gobmk 8 1230 68.2 1227 68.4 1226 68.4 8 1120 74.9 1125 74.6 1128 74.4
456.hmmer 8 1632 45.7 1633 45.7 1632 45.7 8 1617 46.1 1617 46.2 1619 46.1
458.sjeng 8 1837 52.7 1840 52.6 1838 52.7 8 1641 59.0 1642 58.9 1643 58.9
462.libquantum 8 1261 131   1262 131   1260 132   8 1183 140   1185 140   1183 140
464.h264ref 8 1879 94.2 1880 94.2 1879 94.2 8 1767 100   1764 100   1769 100
471.omnetpp 8 2230 22.4 2235 22.4 2238 22.3 8 2153 23.2 2149 23.3 2148 23.3
473.astar 8 1915 29.3 1917 29.3 1937 29.0 8 1851 30.3 1848 30.4 1849 30.4
483.xalancbmk 8 895 61.7 896 61.6 895 61.6 8 878 62.8 878 62.9 879 62.8

Compiler Invocation Notes

  Oracle Solaris Studio 12.2 is distributed with mandatory OS patches
   118683-05  119963-20  120753-08
  Oracle Solaris Studio 12.2 and patches are available at
   http://oracle.com/goto/solarisstudio

Submit Notes


  Processes were assigned to specific processors using 'pbind'
  commands.  The config file option 'submit' was used, along
  with a list of processors in the 'BIND' variable, to generate
  the pbind commands.  (For details, please see the config file.)

Operating System Notes

  ulimit -s 131072 was used to limit the space
  consumed by the stack (and therefore make more
  space available to the heap).

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

Other System Settings:

    The "webconsole" service was turned off using
        svcadm disable webconsole

Platform Notes


  Memory is 2-way interleaved by filling all slots with
  the same capacity DIMMs.

 This result is measured on a SPARC Enterprise M3000 server from
 Fujitsu.  The SPARC Enterprise M3000 server from Oracle and from
 Fujitsu are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xO4   -fma=fused   -xipo=2   -xpagesize=4M   -xcache=generic   -xalias_level=std   -xunroll=12   -xprefetch=latx:0.5   -ll2amm

C++ benchmarks:

 -library=stlport4   -M /usr/lib/ld/map.bssalign   -fast   -xO4   -fma=fused   -xipo=2   -xpagesize=4M   -xcache=generic   -xdepend   -xalias_level=compatible   -xprefetch=latx:0.1   -lfast

Base Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=tcov:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xO4   -xalias_level=std   -xrestrict   -Xc   -xprefetch=no%auto   -xunroll=6   -lfast   -ll2amm   -lbsdmalloc
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=strong   -xchip=generic   -xprefetch=latx:1.5   -xunroll=4   -ll2amm
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xO4   -xchip=generic   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=2   -xunroll=8   -ll2amm
429.mcf:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:0.1   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist   -Wc,-Qlp-prt=1   -Wc,-Qlp-prwt=3   -xunroll=5   -ll2amm
445.gobmk:  -xprofile=tcov:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=std   -xrestrict   -xprefetch_auto_type=indirect_array_access   -xunroll=2   -ll2amm
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xprefetch=latx:0.1   -xunroll=12
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xO4   -xinline=   -xprefetch=latx:0.1   -xunroll=8   -ll2amm
462.libquantum:  -fast   -fma=fused   -xpagesize=4M   -xalias_level=std   -xipo=2   -xchip=generic   -xprefetch_level=3   -xunroll=6   -lbsdmalloc   -ll2amm
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xlinkopt   -ll2amm

C++ benchmarks:

471.omnetpp:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=1   -xO4   -Qoption cg -Qlp-av=0   -xprefetch=latx:1.2   -xunroll=5   -lfast
473.astar:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xcache=generic   -xlinkopt   -xprefetch=latx:0.1   -lfast
483.xalancbmk:  -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xO4   -xcache=generic   -xunroll=9   -lfast   -lbsdmalloc

Peak Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110413.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110413.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 19:13:08 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 12 April 2011.
