| CPU2006 license: | 35 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | HITACHI | Hardware Availability: | Mar-2011 |
| Tested by: | HITACHI | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5690 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3466 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6 x 8 GB 2Rx4 PC3-10600R-9, ECC, running at 1333 MHz) |
| Disk Subsystem: | 2 x 146 GB 10000 rpm Fibre Channel RAID1 configuration |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.4.3, Advanced Platform, Kernel 2.6.18-164.9.1.el5 on an x86_64 |
| Compiler: | Intel C++ Compiler XE for Linux Version 12.0.2.137 Build 20110112 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

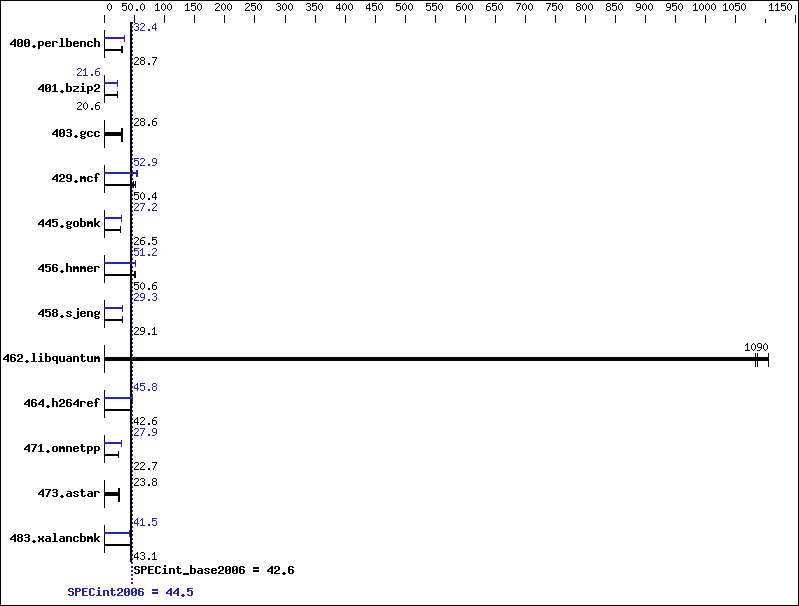

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 336 | 29.1 | 342 | 28.6 | 341 | 28.7 | 301 | 32.5 | 301 | 32.4 | 301 | 32.4 |
| 401.bzip2 | 468 | 20.6 | 466 | 20.7 | 468 | 20.6 | 447 | 21.6 | 447 | 21.6 | 445 | 21.7 |
| 403.gcc | 281 | 28.6 | 279 | 28.9 | 296 | 27.2 | 281 | 28.6 | 279 | 28.9 | 296 | 27.2 |
| 429.mcf | 188 | 48.4 | 181 | 50.4 | 181 | 50.5 | 173 | 52.8 | 168 | 54.3 | 173 | 52.9 |
| 445.gobmk | 398 | 26.4 | 396 | 26.5 | 396 | 26.5 | 385 | 27.2 | 385 | 27.2 | 385 | 27.2 |
| 456.hmmer | 184 | 50.6 | 181 | 51.5 | 189 | 49.4 | 182 | 51.2 | 182 | 51.3 | 182 | 51.2 |
| 458.sjeng | 415 | 29.2 | 415 | 29.1 | 416 | 29.1 | 412 | 29.4 | 413 | 29.3 | 413 | 29.3 |
| 462.libquantum | 19.1 | 1090 | 18.8 | 1100 | 19.1 | 1080 | 19.1 | 1090 | 18.8 | 1100 | 19.1 | 1080 |
| 464.h264ref | 520 | 42.6 | 517 | 42.8 | 522 | 42.4 | 483 | 45.8 | 484 | 45.7 | 483 | 45.8 |
| 471.omnetpp | 276 | 22.6 | 276 | 22.7 | 270 | 23.1 | 224 | 27.9 | 224 | 27.9 | 224 | 27.9 |
| 473.astar | 294 | 23.9 | 294 | 23.8 | 296 | 23.7 | 294 | 23.9 | 294 | 23.8 | 296 | 23.7 |
| 483.xalancbmk | 160 | 43.1 | 160 | 43.1 | 160 | 43.1 | 166 | 41.5 | 166 | 41.5 | 166 | 41.5 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Hugepages was enabled with the following: 'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab echo 900 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Intel HT Technology = Disabled Data Reuse Optimization = Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/home/bsc/smartheap/lib -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
