CPU2006 license: | 9019 | Test date: | Mar-2011 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | Mar-2011 |
Tested by: | Cisco Systems | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5640 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
CPU MHz: | 2267 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 ,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB 2Rx4 PC3L-10600R-9, ECC) |
Disk Subsystem: | 73 GB SAS, 15K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 Binaries compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5 |

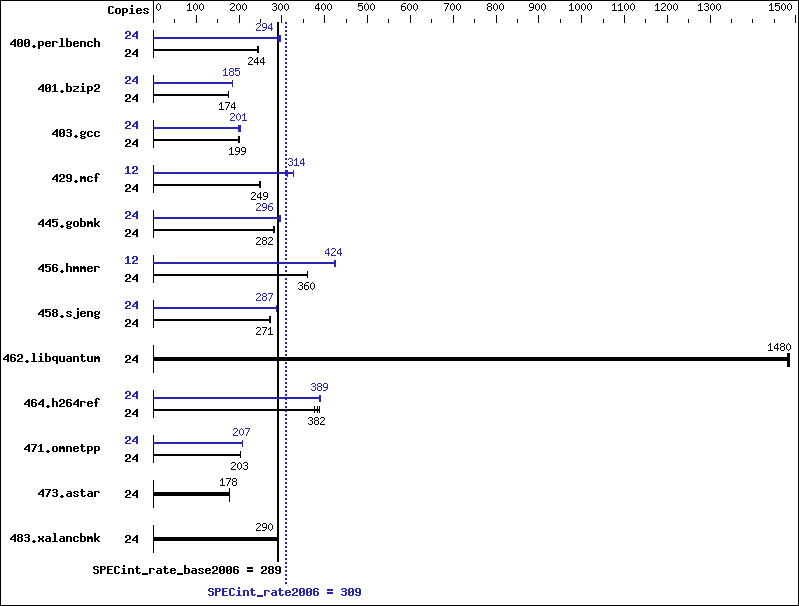

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 969 | 242 | 961 | 244 | 957 | 245 | 24 | 798 | 294 | 802 | 292 | 792 | 296 |
401.bzip2 | 24 | 1329 | 174 | 1327 | 174 | 1327 | 175 | 24 | 1251 | 185 | 1250 | 185 | 1252 | 185 |
403.gcc | 24 | 964 | 200 | 971 | 199 | 971 | 199 | 24 | 972 | 199 | 949 | 204 | 962 | 201 |
429.mcf | 24 | 882 | 248 | 874 | 250 | 878 | 249 | 12 | 350 | 313 | 349 | 314 | 335 | 327 |
445.gobmk | 24 | 894 | 282 | 893 | 282 | 895 | 281 | 24 | 850 | 296 | 849 | 297 | 857 | 294 |
456.hmmer | 24 | 622 | 360 | 623 | 360 | 623 | 359 | 12 | 264 | 424 | 264 | 424 | 265 | 422 |
458.sjeng | 24 | 1073 | 271 | 1066 | 272 | 1070 | 271 | 24 | 1013 | 287 | 1014 | 286 | 1012 | 287 |
462.libquantum | 24 | 335 | 1480 | 335 | 1480 | 336 | 1480 | 24 | 335 | 1480 | 335 | 1480 | 336 | 1480 |
464.h264ref | 24 | 1367 | 389 | 1412 | 376 | 1389 | 382 | 24 | 1360 | 390 | 1364 | 389 | 1372 | 387 |
471.omnetpp | 24 | 739 | 203 | 742 | 202 | 741 | 203 | 24 | 724 | 207 | 725 | 207 | 724 | 207 |
473.astar | 24 | 947 | 178 | 948 | 178 | 949 | 178 | 24 | 947 | 178 | 948 | 178 | 949 | 178 |
483.xalancbmk | 24 | 570 | 291 | 570 | 290 | 571 | 290 | 24 | 570 | 291 | 570 | 290 | 571 | 290 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
ulimit -s unlimited was used to set the stacksize to unlimited prior to run Large pages were not enabled for this run
BIOS Configuration : Data Reuse Optimization = Disabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
