SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Acer Incorporated

Acer AR585 F1 (AMD Opteron 6166 HE)

CPU2006 license: 97 Test date: Mar-2011
Test sponsor: Acer Incorporated Hardware Availability: Feb-2011
Tested by: Acer Incorporated Software Availability: Jul-2010

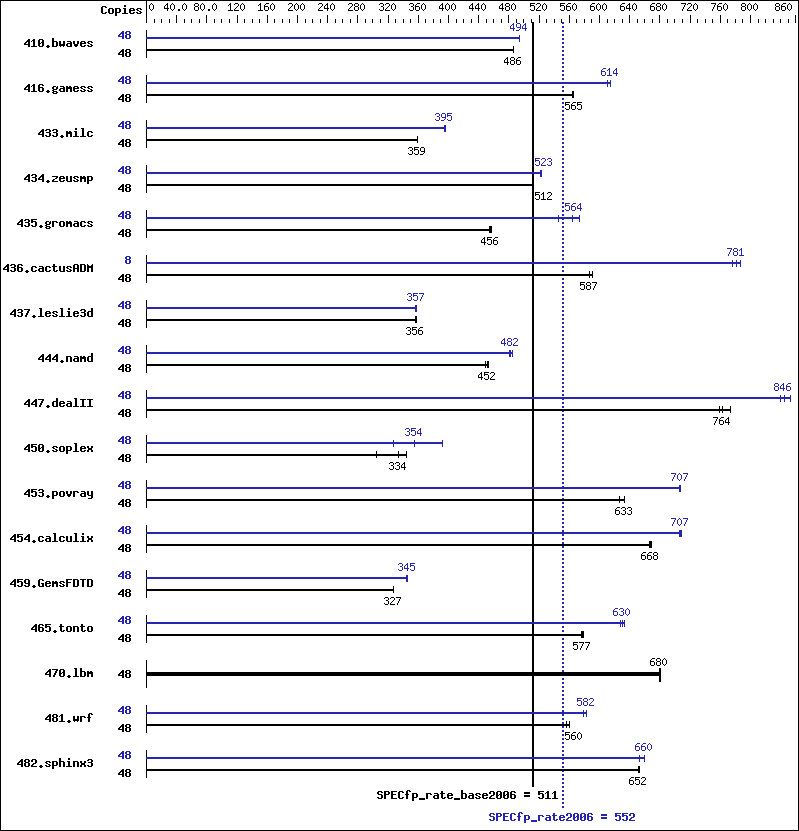

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6166 HE
CPU Characteristics:
CPU MHz: 1800
FPU: Integrated
CPU(s) enabled: 48 cores, 4 chips, 12 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory: 128 GB (32 x 4 GB 2Rx8 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64)
SP1
Kernel 2.6.32.12-0.7-default
Compiler: x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multiuser)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 48 1343 486 1341 487 1341 486 48 1320 494 1322 493 1319 494
416.gamess 48 1660 566 1664 565 1667 564 48 1540 610 1529 615 1530 614
433.milc 48 1226 359 1226 359 1225 360 48 1115 395 1114 396 1115 395
434.zeusmp 48 854 512 855 511 853 512 48 835 523 837 522 836 523
435.gromacs 48 754 454 752 456 751 456 48 628 546 597 574 608 564
436.cactusADM 48 978 586 971 591 978 587 8 122 781 122 786 123 777
437.leslie3d 48 1266 356 1263 357 1266 356 48 1265 357 1263 357 1262 357
444.namd 48 859 448 852 452 851 452 48 799 482 801 480 794 485
447.dealII 48 719 764 710 773 724 759 48 644 853 654 840 649 846
450.soplex 48 1311 305 1200 334 1163 344 48 1224 327 1130 354 1022 392
453.povray 48 408 627 403 633 403 634 48 362 706 361 707 361 708
454.calculix 48 593 668 593 668 594 667 48 560 707 559 709 561 706
459.GemsFDTD 48 1557 327 1553 328 1556 327 48 1472 346 1478 345 1475 345
465.tonto 48 816 579 819 577 820 576 48 749 630 752 628 746 633
470.lbm 48 970 680 970 680 968 681 48 970 680 970 680 968 681
481.wrf 48 957 560 963 557 957 560 48 925 579 921 582 921 582
482.sphinx3 48 1435 652 1434 652 1433 653 48 1431 654 1418 660 1417 660

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=21600 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/usr/cpu2006/amd1002-rate-libs-revC/64:/usr/cpu2006/amd1002-rate-libs-revC/32"
OMP_NUM_THREADS = "6"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64
Binaries were compiled on SLES10 SP2 with binutils 2.18
This result was measured on the Gateway GR585 F1.
The Acer AR585 F1 and Gateway GR585 F1 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=barcelona   -mso   -Ofast   -OPT:malloc_alg=1   -HP:bdt=2m

C++ benchmarks:

 -march=barcelona   -mso   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -HP:bdt=2m

Fortran benchmarks:

 -march=barcelona   -mso   -Ofast   -HP

Benchmarks using both Fortran and C:

 -march=barcelona   -mso   -Ofast   -OPT:malloc_alg=1   -HP:bdt=2m   -HP

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=barcelona   -mso   -Ofast   -CG:movnti=1   -CG:local_sched_alg=1   -CG:locs_shallow_depth=1   -HP:bdt=2m:heap=2m   -LNO:prefetch=3
470.lbm:  basepeak = yes
482.sphinx3:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:local_sched_alg=1   -INLINE:aggressive=on

C++ benchmarks:

444.namd:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -CG:compute_to=on   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=barcelona   -mso   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m
453.povray:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:  -march=barcelona   -mso   -O3   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:prefetch_ahead=5   -LNO:ignore_feedback=off   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on
416.gamess:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:prefetch=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -march=barcelona   -mso   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -GRA:prioritize_by_density=on   -HP
437.leslie3d:  -march=barcelona   -mso   -Ofast   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=barcelona   -mso   -Ofast   -LNO:fission=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:local_sched_alg=1   -HP
465.tonto:  -march=barcelona   -mso   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -mso   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -LNO:prefetch_ahead=1   -HP:bdt=2m:heap=2m   -LANG:heap_allocation_threshold=100
454.calculix:  -march=barcelona   -mso   -Ofast   -CG:load_exe=0   -CG:ptr_load_use=0   -CG:local_sched_alg=2   -CG:compute_to=on   -LNO:prefetch_ahead=30   -WOPT:unroll=2   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=barcelona   -mso   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -m3dnow   -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.xml.
