| CPU2006 license: | 19 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Apr-2011 |
| Tested by: | Fujitsu | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1240 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.7 GHz |
| CPU MHz: | 3300 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600U-9, non-ECC) |
| Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), kernel 2.6.32.12-0.6-default |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.2.137 Build 20110112 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run Level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

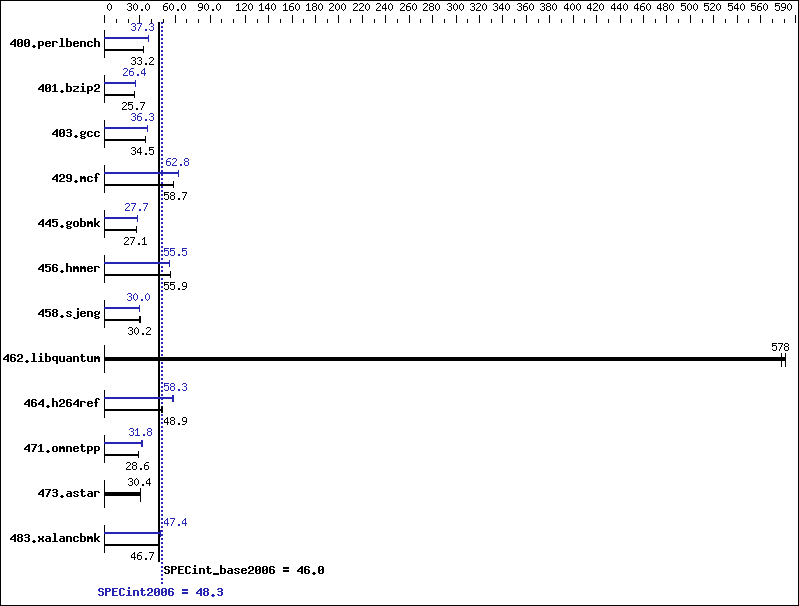

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 294 | 33.2 | 294 | 33.2 | 294 | 33.2 | 262 | 37.3 | 261 | 37.4 | 262 | 37.3 |
| 401.bzip2 | 375 | 25.7 | 376 | 25.7 | 375 | 25.7 | 365 | 26.4 | 365 | 26.4 | 365 | 26.4 |
| 403.gcc | 234 | 34.4 | 233 | 34.5 | 234 | 34.5 | 222 | 36.3 | 222 | 36.3 | 222 | 36.3 |
| 429.mcf | 155 | 58.7 | 155 | 58.8 | 156 | 58.6 | 145 | 62.8 | 145 | 62.7 | 145 | 62.8 |
| 445.gobmk | 387 | 27.1 | 387 | 27.1 | 387 | 27.1 | 378 | 27.7 | 378 | 27.7 | 378 | 27.7 |
| 456.hmmer | 167 | 55.9 | 167 | 55.9 | 167 | 55.8 | 168 | 55.5 | 168 | 55.5 | 168 | 55.5 |
| 458.sjeng | 402 | 30.1 | 401 | 30.2 | 401 | 30.2 | 404 | 30.0 | 404 | 30.0 | 404 | 30.0 |
| 462.libquantum | 35.7 | 581 | 35.8 | 578 | 35.8 | 578 | 35.7 | 581 | 35.8 | 578 | 35.8 | 578 |
| 464.h264ref | 454 | 48.8 | 452 | 48.9 | 452 | 48.9 | 378 | 58.6 | 380 | 58.3 | 385 | 57.5 |
| 471.omnetpp | 218 | 28.7 | 219 | 28.6 | 219 | 28.6 | 196 | 31.9 | 197 | 31.8 | 197 | 31.8 |
| 473.astar | 232 | 30.2 | 231 | 30.4 | 230 | 30.5 | 232 | 30.2 | 231 | 30.4 | 230 | 30.5 |
| 483.xalancbmk | 148 | 46.7 | 148 | 46.6 | 148 | 46.7 | 145 | 47.4 | 146 | 47.4 | 146 | 47.4 |
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run Hugepages were enabled by: mount -t hugetlbfs nodev /mnt/hugepages echo 900 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS settings: Hyper-Threading Technology = Disabled
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/smartheap/intel64 -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/opt/smartheap/ia32 -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/opt/smartheap/ia32 -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
