SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH67BLB3 Motherboard (Intel Core i7-2600S)

SPECfp®2006 = 54.7

CPU2006 license: 13 Test date: Apr-2011
Test sponsor: Intel Corporation Hardware Availability: Mar-2011
Tested by: Intel Corporation Software Availability: Apr-2011

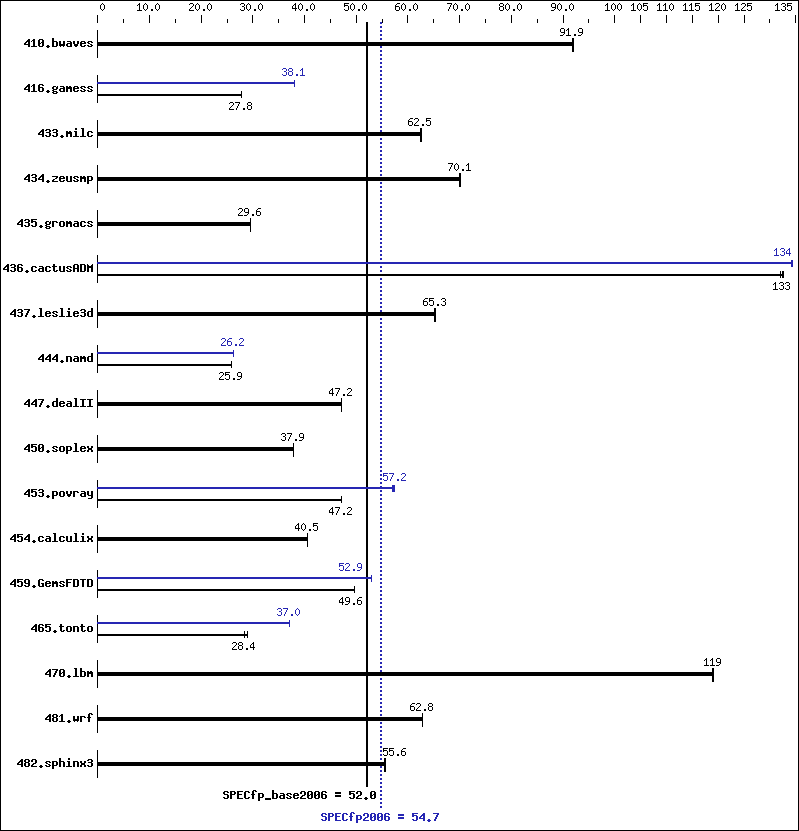

Benchmark results graph
Hardware
CPU Name: Intel Core i7-2600S
CPU Characteristics: Intel Turbo Boost Technology up to 3.8 GHz
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx8 PC3-10600U-9)
Disk Subsystem: Seagate 1 TB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Ultimate (64-bit)
Compiler: Intel C++ Compiler XE for Intel64
Version 12.0.3.163 Build 20110217
Intel Visual Fortran Compiler XE for Intel64
Version 12.0.3.163 Build 20110217
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 148   91.9 148   92.0 148   91.8 148   91.9 148   92.0 148   91.8
416.gamess 705   27.8 705   27.8 705   27.8 514   38.1 514   38.1 514   38.1
433.milc 147   62.6 147   62.5 147   62.4 147   62.6 147   62.5 147   62.4
434.zeusmp 130   70.1 130   70.1 130   70.0 130   70.1 130   70.1 130   70.0
435.gromacs 241   29.6 241   29.6 241   29.6 241   29.6 241   29.6 241   29.6
436.cactusADM 90.5 132   90.2 133   90.1 133   88.9 134   89.0 134   89.1 134
437.leslie3d 144   65.3 144   65.3 145   65.1 144   65.3 144   65.3 145   65.1
444.namd 309   25.9 309   25.9 309   25.9 306   26.2 306   26.2 306   26.2
447.dealII 243   47.2 242   47.2 243   47.2 243   47.2 242   47.2 243   47.2
450.soplex 220   37.9 220   37.9 220   37.9 220   37.9 220   37.9 220   37.9
453.povray 113   47.2 113   47.2 113   47.2 92.9 57.3 93.1 57.1 93.0 57.2
454.calculix 203   40.6 204   40.5 204   40.5 203   40.6 204   40.5 204   40.5
459.GemsFDTD 214   49.6 214   49.6 214   49.6 201   52.9 201   52.9 201   52.9
465.tonto 339   29.0 346   28.4 346   28.4 266   37.0 266   37.0 266   37.0
470.lbm 116   119   116   119   116   119   116   119   116   119   116   119
481.wrf 178   62.8 178   62.8 178   62.8 178   62.8 178   62.8 178   62.8
482.sphinx3 350   55.7 351   55.6 352   55.4 350   55.7 351   55.6 352   55.4

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   -names:lowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

C++ benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qparallel   /F1000000000
465.tonto:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   -Qinline-calloc   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   -Qunroll2   -Qauto-ilp32   /F1000000000
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revB.html,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revB.xml,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.xml.
