| CPU2006 license: | 11 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5645 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

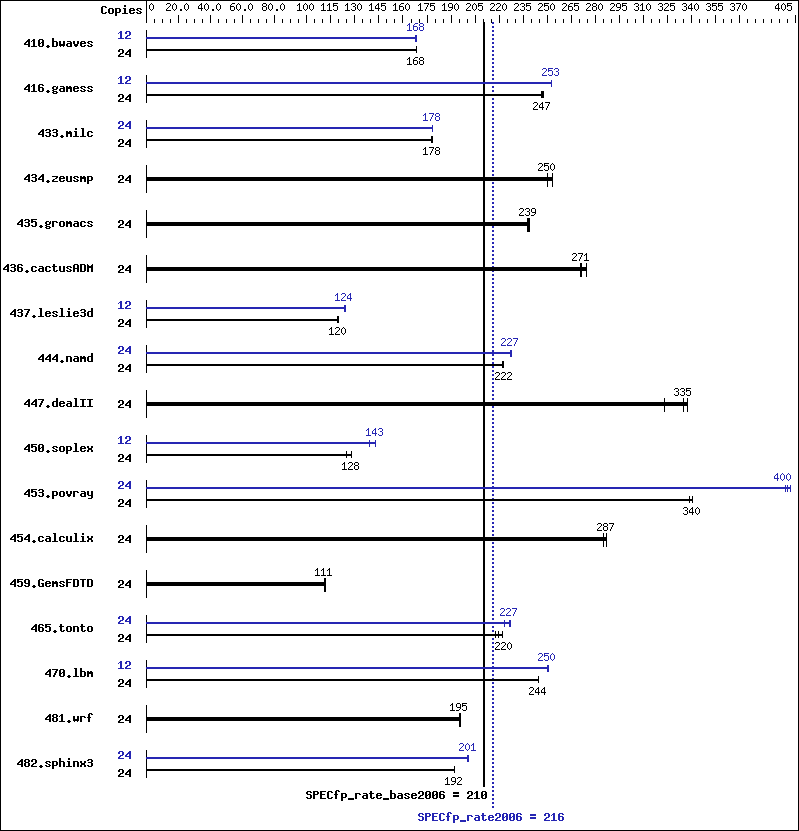

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 24 | 1938 | 168 | 1939 | 168 | 1935 | 169 | 12 | 971 | 168 | 970 | 168 | 969 | 168 |
| 416.gamess | 24 | 1900 | 247 | 1901 | 247 | 1907 | 246 | 12 | 930 | 253 | 930 | 253 | 931 | 252 |
| 433.milc | 24 | 1236 | 178 | 1235 | 178 | 1237 | 178 | 24 | 1235 | 178 | 1235 | 178 | 1235 | 178 |
| 434.zeusmp | 24 | 872 | 250 | 873 | 250 | 863 | 253 | 24 | 872 | 250 | 873 | 250 | 863 | 253 |
| 435.gromacs | 24 | 717 | 239 | 718 | 239 | 721 | 238 | 24 | 717 | 239 | 718 | 239 | 721 | 238 |
| 436.cactusADM | 24 | 1059 | 271 | 1058 | 271 | 1046 | 274 | 24 | 1059 | 271 | 1058 | 271 | 1046 | 274 |
| 437.leslie3d | 24 | 1892 | 119 | 1882 | 120 | 1883 | 120 | 12 | 912 | 124 | 912 | 124 | 910 | 124 |
| 444.namd | 24 | 867 | 222 | 866 | 222 | 864 | 223 | 24 | 845 | 228 | 849 | 227 | 847 | 227 |
| 447.dealII | 24 | 813 | 338 | 819 | 335 | 850 | 323 | 24 | 813 | 338 | 819 | 335 | 850 | 323 |
| 450.soplex | 24 | 1602 | 125 | 1564 | 128 | 1563 | 128 | 12 | 721 | 139 | 700 | 143 | 700 | 143 |
| 453.povray | 24 | 375 | 340 | 377 | 339 | 375 | 340 | 24 | 320 | 399 | 318 | 402 | 319 | 400 |
| 454.calculix | 24 | 690 | 287 | 691 | 287 | 694 | 285 | 24 | 690 | 287 | 691 | 287 | 694 | 285 |
| 459.GemsFDTD | 24 | 2290 | 111 | 2287 | 111 | 2287 | 111 | 24 | 2290 | 111 | 2287 | 111 | 2287 | 111 |
| 465.tonto | 24 | 1063 | 222 | 1075 | 220 | 1086 | 217 | 24 | 1039 | 227 | 1057 | 224 | 1042 | 227 |
| 470.lbm | 24 | 1349 | 244 | 1348 | 245 | 1349 | 244 | 12 | 659 | 250 | 659 | 250 | 658 | 251 |
| 481.wrf | 24 | 1369 | 196 | 1372 | 195 | 1372 | 195 | 24 | 1369 | 196 | 1372 | 195 | 1372 | 195 |
| 482.sphinx3 | 24 | 2437 | 192 | 2434 | 192 | 2432 | 192 | 24 | 2335 | 200 | 2327 | 201 | 2330 | 201 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Turbo Mode enabled in BIOS Turbo Boost set to Traditional in BIOS Power C-State enabled in BIOS Data Reuse disabled in BIOS Demand Scrub disabled in BIOS
General Notes
Binaries compiled on RHEL5.5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 482.sphinx3: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
| 470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Fortran benchmarks:
| 410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
