| CPU2006 license: | 11 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | May-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4830 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.4 GHz |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2,3,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (64 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 2 x 147 GB 15k RPM SAS, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

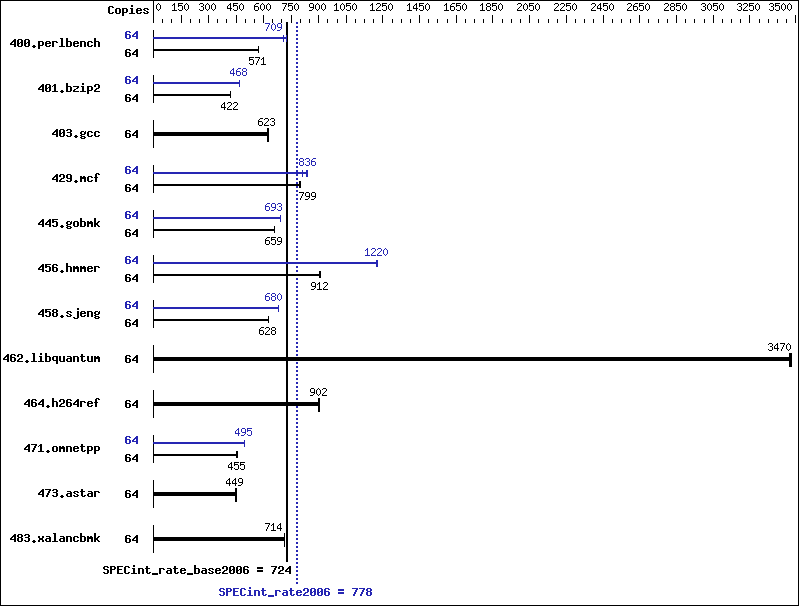

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 64 | 1094 | 571 | 1097 | 570 | 1095 | 571 | 64 | 865 | 723 | 882 | 709 | 882 | 709 |
| 401.bzip2 | 64 | 1465 | 422 | 1465 | 422 | 1469 | 421 | 64 | 1320 | 468 | 1320 | 468 | 1323 | 467 |
| 403.gcc | 64 | 828 | 623 | 826 | 624 | 828 | 622 | 64 | 828 | 623 | 826 | 624 | 828 | 622 |
| 429.mcf | 64 | 730 | 799 | 734 | 795 | 731 | 799 | 64 | 694 | 841 | 698 | 836 | 717 | 814 |
| 445.gobmk | 64 | 1016 | 660 | 1019 | 659 | 1022 | 657 | 64 | 968 | 694 | 968 | 693 | 971 | 692 |
| 456.hmmer | 64 | 655 | 912 | 660 | 905 | 654 | 913 | 64 | 492 | 1210 | 488 | 1220 | 490 | 1220 |
| 458.sjeng | 64 | 1232 | 629 | 1233 | 628 | 1234 | 628 | 64 | 1141 | 679 | 1138 | 680 | 1137 | 681 |
| 462.libquantum | 64 | 383 | 3470 | 382 | 3480 | 382 | 3470 | 64 | 383 | 3470 | 382 | 3480 | 382 | 3470 |
| 464.h264ref | 64 | 1576 | 899 | 1570 | 902 | 1570 | 902 | 64 | 1576 | 899 | 1570 | 902 | 1570 | 902 |
| 471.omnetpp | 64 | 879 | 455 | 878 | 455 | 879 | 455 | 64 | 809 | 495 | 808 | 495 | 808 | 495 |
| 473.astar | 64 | 1000 | 449 | 999 | 450 | 1001 | 449 | 64 | 1000 | 449 | 999 | 450 | 1001 | 449 |
| 483.xalancbmk | 64 | 618 | 714 | 618 | 714 | 619 | 713 | 64 | 618 | 714 | 618 | 714 | 619 | 713 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run echo 1 > /proc/sys/vm/zone_reclaim_mode 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 41600 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Turbo Boost Power Optimization set to Traditional
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
