| CPU2006 license: | 55 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jul-2011 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L7555 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 1866 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3-8500R-7, ECC, running at 978 MHz) |
| Disk Subsystem: | 1 x 500 GB 7200 RPM SAS 6Gb |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

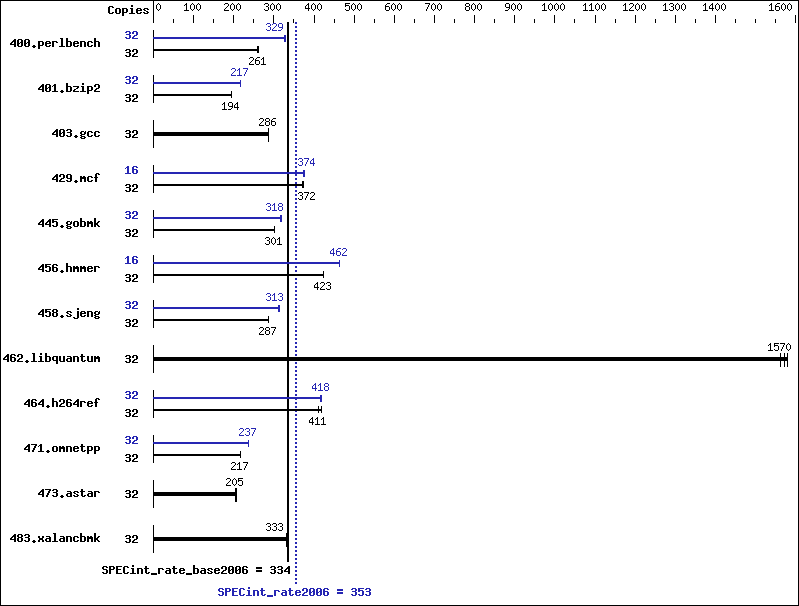

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 1196 | 261 | 1202 | 260 | 1193 | 262 | 32 | 954 | 328 | 951 | 329 | 950 | 329 |
| 401.bzip2 | 32 | 1592 | 194 | 1595 | 194 | 1590 | 194 | 32 | 1423 | 217 | 1426 | 217 | 1425 | 217 |
| 403.gcc | 32 | 895 | 288 | 901 | 286 | 899 | 286 | 32 | 895 | 288 | 901 | 286 | 899 | 286 |
| 429.mcf | 32 | 781 | 374 | 787 | 371 | 785 | 372 | 16 | 390 | 374 | 390 | 374 | 388 | 377 |
| 445.gobmk | 32 | 1114 | 301 | 1114 | 301 | 1110 | 302 | 32 | 1056 | 318 | 1057 | 318 | 1058 | 317 |
| 456.hmmer | 32 | 704 | 424 | 706 | 423 | 706 | 423 | 16 | 322 | 463 | 323 | 462 | 323 | 462 |
| 458.sjeng | 32 | 1350 | 287 | 1347 | 287 | 1354 | 286 | 32 | 1237 | 313 | 1239 | 313 | 1237 | 313 |
| 462.libquantum | 32 | 425 | 1560 | 420 | 1580 | 422 | 1570 | 32 | 425 | 1560 | 420 | 1580 | 422 | 1570 |
| 464.h264ref | 32 | 1728 | 410 | 1722 | 411 | 1694 | 418 | 32 | 1698 | 417 | 1696 | 418 | 1693 | 418 |
| 471.omnetpp | 32 | 923 | 217 | 923 | 217 | 923 | 217 | 32 | 843 | 237 | 844 | 237 | 844 | 237 |
| 473.astar | 32 | 1096 | 205 | 1092 | 206 | 1093 | 205 | 32 | 1096 | 205 | 1092 | 206 | 1093 | 205 |
| 483.xalancbmk | 32 | 665 | 332 | 663 | 333 | 663 | 333 | 32 | 665 | 332 | 663 | 333 | 663 | 333 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 28800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
The Dell PowerEdge R910 and the Bull NovaScale R480 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R910 model. Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
