| CPU2006 license: | 001176 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Jan-2010 |
| Tested by: | Supermicro | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3440 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
| CPU MHz: | 2533 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx8 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 160 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

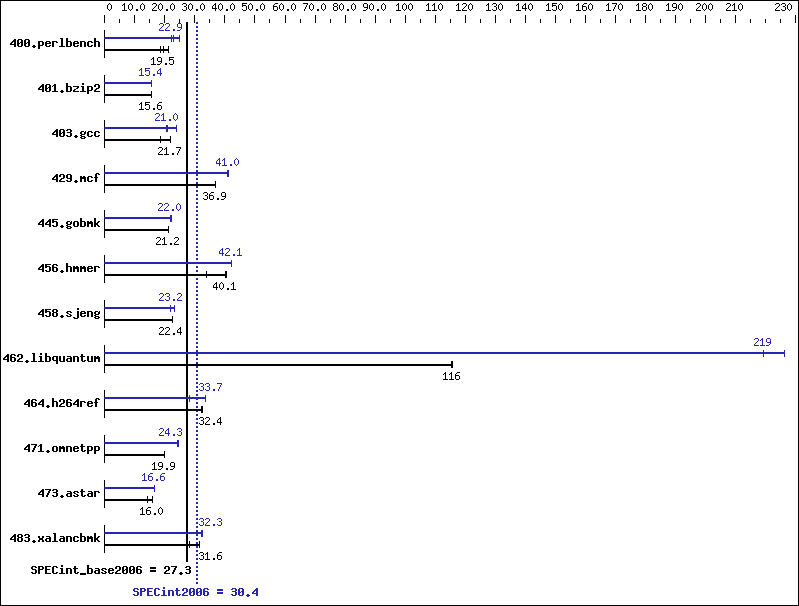

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 464 | 21.1 | 500 | 19.5 | 524 | 18.6 | 442 | 22.1 | 392 | 24.9 | 426 | 22.9 |
| 401.bzip2 | 622 | 15.5 | 620 | 15.6 | 620 | 15.6 | 624 | 15.5 | 626 | 15.4 | 626 | 15.4 |
| 403.gcc | 370 | 21.7 | 430 | 18.7 | 369 | 21.8 | 389 | 20.7 | 339 | 23.7 | 384 | 21.0 |
| 429.mcf | 247 | 36.9 | 247 | 36.9 | 247 | 36.9 | 222 | 41.1 | 223 | 40.8 | 222 | 41.0 |
| 445.gobmk | 495 | 21.2 | 496 | 21.2 | 495 | 21.2 | 475 | 22.1 | 483 | 21.7 | 477 | 22.0 |
| 456.hmmer | 233 | 40.1 | 231 | 40.5 | 276 | 33.8 | 222 | 42.1 | 221 | 42.2 | 222 | 42.1 |
| 458.sjeng | 540 | 22.4 | 540 | 22.4 | 540 | 22.4 | 522 | 23.2 | 554 | 21.8 | 522 | 23.2 |
| 462.libquantum | 179 | 116 | 179 | 116 | 179 | 116 | 91.6 | 226 | 94.5 | 219 | 94.5 | 219 |
| 464.h264ref | 683 | 32.4 | 684 | 32.3 | 679 | 32.6 | 657 | 33.7 | 784 | 28.2 | 657 | 33.7 |
| 471.omnetpp | 316 | 19.8 | 315 | 19.9 | 315 | 19.9 | 257 | 24.3 | 255 | 24.5 | 257 | 24.3 |
| 473.astar | 438 | 16.0 | 498 | 14.1 | 439 | 16.0 | 423 | 16.6 | 423 | 16.6 | 423 | 16.6 |
| 483.xalancbmk | 219 | 31.6 | 244 | 28.3 | 218 | 31.6 | 213 | 32.3 | 214 | 32.2 | 213 | 32.5 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Platform Notes
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro CSE-111T-560CB chassis. The system includes a PWS-562-1H power supply, SNK-P0046P heatsink, and 3 FAN-0106L4 cooling fans.
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
