SPEC® CINT2006 Result

Cisco Systems

Cisco UCS C460 M2 (Intel Xeon E7-4850, 2.00 GHz)

Hardware
CPU Name:	Intel Xeon E7-4850
CPU Characteristics:	Intel Turbo Boost Technology up to 2.4 GHz
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	40 cores, 4 chips, 10 cores/chip, 2 threads/core
CPU(s) orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	24 MB I+D on chip per chip
Other Cache:	None
Memory:	1 TB (64 x 16 GB 4Rx4 PC3-8500R-9, ECC)
Disk Subsystem:	146 GB SAS, 15K RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.1 Beta Kernel 2.6.32-130.el6.x86_64
Compiler:	Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V9.01

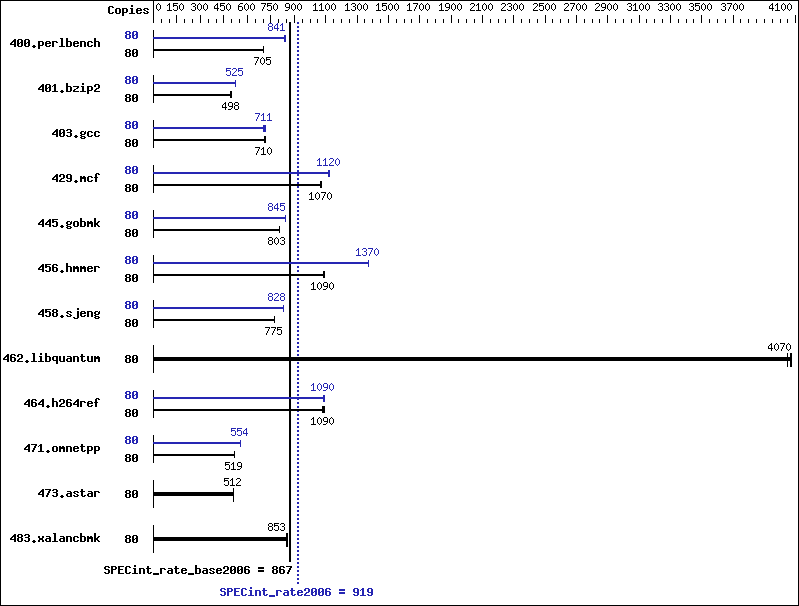

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	80	1109	705	1111	704	1109	705	80	927	843	930	841	932	839
401.bzip2	80	1550	498	1551	498	1575	490	80	1469	525	1470	525	1467	526
403.gcc	80	904	712	906	710	908	709	80	902	714	905	711	914	704
429.mcf	80	683	1070	680	1070	681	1070	80	650	1120	650	1120	652	1120
445.gobmk	80	1045	803	1047	802	1044	804	80	994	845	994	844	993	845
456.hmmer	80	684	1090	686	1090	687	1090	80	544	1370	544	1370	545	1370
458.sjeng	80	1248	775	1248	775	1251	774	80	1170	827	1170	828	1169	828
462.libquantum	80	409	4050	407	4070	407	4070	80	409	4050	407	4070	407	4070
464.h264ref	80	1628	1090	1642	1080	1618	1090	80	1627	1090	1620	1090	1630	1090
471.omnetpp	80	965	518	964	519	964	519	80	902	554	902	554	902	554
473.astar	80	1096	512	1098	511	1094	513	80	1096	512	1098	511	1094	513
483.xalancbmk	80	647	853	647	853	650	849	80	647	853	647	853	650	849

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

ulimit -s unlimited was used to set the stacksize to unlimited prior to run
Large pages were disabled for this run

BIOS Configuration : Data Reuse Optimization = Disabled

Binaries compiled on RHEL5.5 with
binutils-2.17.50.0.6-14.el5

icc -m32

icpc -m32

403.gcc:

icpc -m32

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT
429.mcf:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -auto-ilp32
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -auto-ilp32
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap
473.astar:	basepeak = yes
483.xalancbmk:	basepeak = yes

403.gcc:
