| CPU2006 license: | 9001 | Test date: | Jul-2011 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Apr-2010 |
| Tested by: | Itautec | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5640 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB 2Rx4 PC3-8500R-7, ECC) |
| Disk Subsystem: | 1 x 500 GB SATA-2, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.2 Build 20110112 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

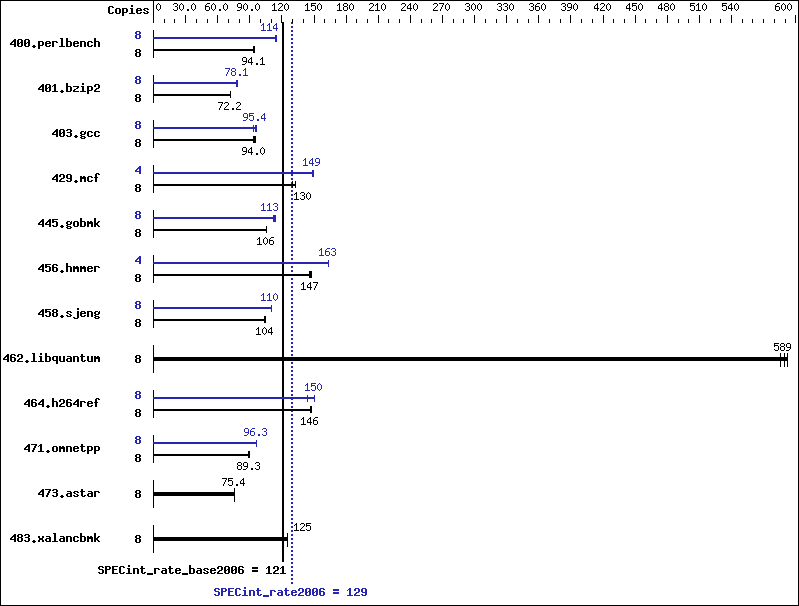

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 835 | 93.7 | 831 | 94.1 | 828 | 94.4 | 8 | 682 | 115 | 685 | 114 | 686 | 114 |
| 401.bzip2 | 8 | 1069 | 72.2 | 1072 | 72.0 | 1069 | 72.2 | 8 | 988 | 78.1 | 990 | 78.0 | 988 | 78.2 |
| 403.gcc | 8 | 685 | 94.0 | 676 | 95.3 | 687 | 93.8 | 8 | 687 | 93.8 | 671 | 96.0 | 675 | 95.4 |
| 429.mcf | 8 | 561 | 130 | 551 | 132 | 562 | 130 | 4 | 244 | 149 | 245 | 149 | 245 | 149 |
| 445.gobmk | 8 | 792 | 106 | 792 | 106 | 793 | 106 | 8 | 745 | 113 | 738 | 114 | 747 | 112 |
| 456.hmmer | 8 | 512 | 146 | 506 | 147 | 509 | 147 | 4 | 229 | 163 | 229 | 163 | 229 | 163 |
| 458.sjeng | 8 | 932 | 104 | 927 | 104 | 929 | 104 | 8 | 875 | 111 | 879 | 110 | 879 | 110 |
| 462.libquantum | 8 | 283 | 586 | 281 | 589 | 280 | 593 | 8 | 283 | 586 | 281 | 589 | 280 | 593 |
| 464.h264ref | 8 | 1211 | 146 | 1210 | 146 | 1202 | 147 | 8 | 1234 | 144 | 1177 | 150 | 1174 | 151 |
| 471.omnetpp | 8 | 560 | 89.3 | 561 | 89.1 | 560 | 89.3 | 8 | 518 | 96.5 | 519 | 96.3 | 519 | 96.3 |
| 473.astar | 8 | 745 | 75.4 | 743 | 75.6 | 746 | 75.3 | 8 | 745 | 75.4 | 743 | 75.6 | 746 | 75.3 |
| 483.xalancbmk | 8 | 440 | 125 | 441 | 125 | 441 | 125 | 8 | 440 | 125 | 441 | 125 | 441 | 125 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. Large pages were not enabled for this run
Platform Notes
Data Reuse disabled in BIOS.
General Notes
This result was measured on the Servidor Itautec MX224. The Servidor Itautec MX203+, Servidor Itautec MX223+ and the Servidor Itautec MX224 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
