CPU2006 license: | 3 | Test date: | Sep-2011 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Nov-2011 |
Tested by: | Hewlett-Packard Company | Software Availability: | Jul-2011 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6276 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.20 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 2 chips, 16 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3L-10600R-9, ECC) |
Disk Subsystem: | 2 x 146 GB 15 K SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
Compiler: | C/C++/Fortran: Version 4.2.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

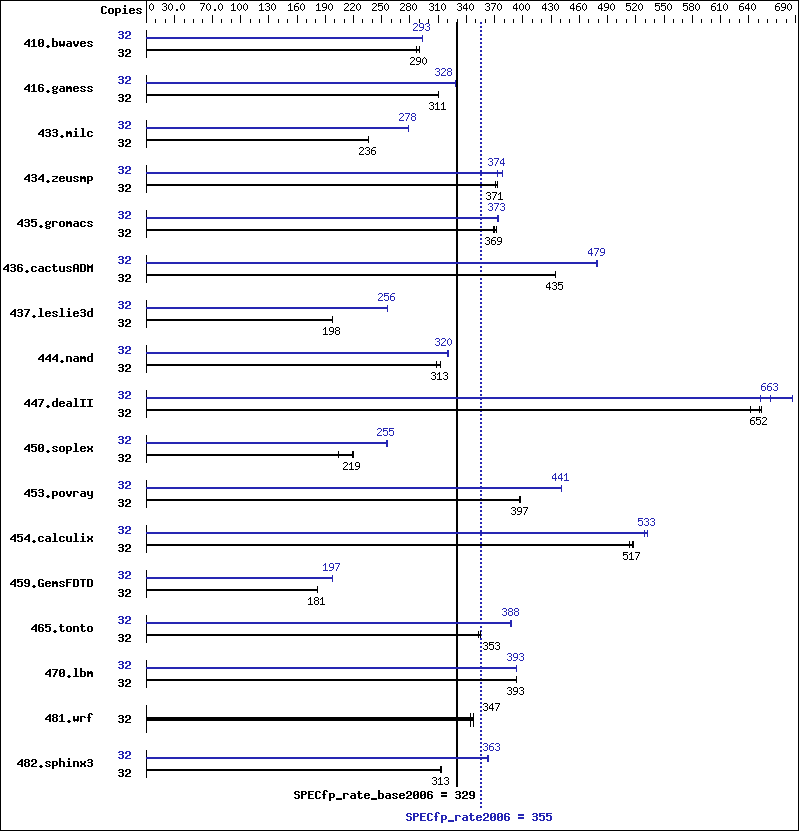

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 32 | 1514 | 287 | 1500 | 290 | 1500 | 290 | 32 | 1482 | 293 | 1482 | 293 | 1482 | 293 |
416.gamess | 32 | 2017 | 311 | 2018 | 310 | 2017 | 311 | 32 | 1906 | 329 | 1908 | 328 | 1910 | 328 |
433.milc | 32 | 1245 | 236 | 1245 | 236 | 1245 | 236 | 32 | 1056 | 278 | 1057 | 278 | 1056 | 278 |
434.zeusmp | 32 | 785 | 371 | 782 | 373 | 786 | 371 | 32 | 769 | 379 | 781 | 373 | 780 | 374 |
435.gromacs | 32 | 614 | 372 | 619 | 369 | 619 | 369 | 32 | 612 | 373 | 611 | 374 | 613 | 373 |
436.cactusADM | 32 | 880 | 434 | 879 | 435 | 880 | 435 | 32 | 797 | 480 | 798 | 479 | 799 | 479 |
437.leslie3d | 32 | 1521 | 198 | 1521 | 198 | 1520 | 198 | 32 | 1172 | 257 | 1173 | 256 | 1173 | 256 |
444.namd | 32 | 833 | 308 | 820 | 313 | 821 | 313 | 32 | 802 | 320 | 800 | 321 | 802 | 320 |
447.dealII | 32 | 562 | 652 | 570 | 642 | 560 | 654 | 32 | 552 | 663 | 533 | 686 | 561 | 652 |
450.soplex | 32 | 1310 | 204 | 1218 | 219 | 1211 | 220 | 32 | 1048 | 255 | 1048 | 255 | 1043 | 256 |
453.povray | 32 | 429 | 397 | 429 | 397 | 429 | 397 | 32 | 386 | 441 | 386 | 441 | 386 | 441 |
454.calculix | 32 | 511 | 517 | 510 | 518 | 515 | 513 | 32 | 499 | 529 | 496 | 533 | 496 | 533 |
459.GemsFDTD | 32 | 1871 | 181 | 1870 | 182 | 1871 | 181 | 32 | 1722 | 197 | 1721 | 197 | 1720 | 197 |
465.tonto | 32 | 892 | 353 | 891 | 353 | 888 | 354 | 32 | 812 | 388 | 811 | 388 | 814 | 387 |
470.lbm | 32 | 1118 | 393 | 1118 | 393 | 1119 | 393 | 32 | 1119 | 393 | 1118 | 393 | 1118 | 393 |
481.wrf | 32 | 1039 | 344 | 1030 | 347 | 1028 | 348 | 32 | 1039 | 344 | 1030 | 347 | 1028 | 348 |
482.sphinx3 | 32 | 1996 | 313 | 1992 | 313 | 1991 | 313 | 32 | 1718 | 363 | 1717 | 363 | 1723 | 362 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot paramenter in /boot/grub/menu.lst Set kernel/randomize_va_space=0 in /etc/sysctl.conf Set vm/nr_hugepages=57344 in /etc/sysctl.conf Set "nodev /mnt/hugepages hugetlbfs defaults 0 0" in /etc/fstab
BIOS settings: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling HPC Optimization set to Enabled
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/cpu2006/amd1104-rate-libs-revA/32:/cpu2006/amd1104-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso |
-march=bdver1 -Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET |
-march=bdver1 -Ofast -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
435.gromacs: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m |
436.cactusADM: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:blocking=off -LNO:prefetch=2 -HP -CG:locs_shallow_depth=1 -CG:load_exe=0 -WOPT:sib=on |
454.calculix: | -march=bdver1 -Ofast -OPT:unroll_size=256 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m |
481.wrf: | basepeak = yes |
