CPU2006 license: | 97 | Test date: | Nov-2011 |
---|---|---|---|
Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2011 |
Tested by: | Acer Incorporated | Software Availability: | Jul-2011 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6238 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.20 GHz |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 384 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 6 cores |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 300 GB SATA, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
Compiler: | C/C++/Fortran: Version 4.2.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

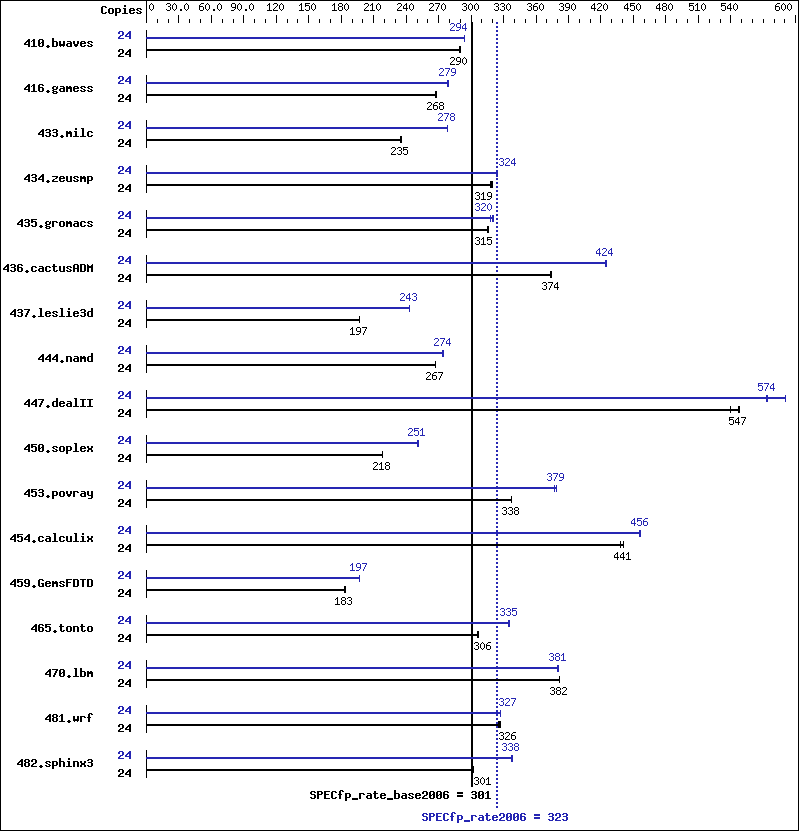

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1126 | 290 | 1126 | 290 | 1126 | 290 | 24 | 1110 | 294 | 1109 | 294 | 1109 | 294 |
416.gamess | 24 | 1756 | 268 | 1755 | 268 | 1755 | 268 | 24 | 1687 | 279 | 1685 | 279 | 1685 | 279 |
433.milc | 24 | 937 | 235 | 938 | 235 | 936 | 235 | 24 | 792 | 278 | 792 | 278 | 793 | 278 |
434.zeusmp | 24 | 684 | 319 | 686 | 318 | 683 | 320 | 24 | 675 | 323 | 674 | 324 | 675 | 324 |
435.gromacs | 24 | 543 | 315 | 543 | 316 | 543 | 315 | 24 | 538 | 318 | 534 | 321 | 536 | 320 |
436.cactusADM | 24 | 768 | 374 | 766 | 374 | 766 | 374 | 24 | 677 | 424 | 675 | 425 | 676 | 424 |
437.leslie3d | 24 | 1146 | 197 | 1146 | 197 | 1146 | 197 | 24 | 929 | 243 | 929 | 243 | 927 | 243 |
444.namd | 24 | 721 | 267 | 721 | 267 | 722 | 267 | 24 | 704 | 273 | 701 | 275 | 701 | 274 |
447.dealII | 24 | 501 | 548 | 502 | 547 | 509 | 539 | 24 | 479 | 573 | 478 | 574 | 465 | 590 |
450.soplex | 24 | 919 | 218 | 919 | 218 | 919 | 218 | 24 | 798 | 251 | 798 | 251 | 797 | 251 |
453.povray | 24 | 378 | 338 | 378 | 338 | 378 | 337 | 24 | 337 | 379 | 338 | 377 | 337 | 379 |
454.calculix | 24 | 452 | 438 | 449 | 441 | 449 | 441 | 24 | 434 | 456 | 434 | 456 | 434 | 457 |
459.GemsFDTD | 24 | 1387 | 184 | 1388 | 183 | 1391 | 183 | 24 | 1292 | 197 | 1291 | 197 | 1292 | 197 |
465.tonto | 24 | 770 | 307 | 771 | 306 | 772 | 306 | 24 | 706 | 334 | 703 | 336 | 704 | 335 |
470.lbm | 24 | 863 | 382 | 864 | 382 | 864 | 382 | 24 | 866 | 381 | 866 | 381 | 867 | 380 |
481.wrf | 24 | 822 | 326 | 819 | 327 | 824 | 325 | 24 | 820 | 327 | 820 | 327 | 818 | 328 |
482.sphinx3 | 24 | 1549 | 302 | 1554 | 301 | 1552 | 301 | 24 | 1383 | 338 | 1386 | 338 | 1386 | 338 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot paramenter in /boot/grub/menu.lst Set kernel/randomize_va_space=0 in /etc/sysctl.conf Set vm/nr_hugepages=21504 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/usr/cpu2006/amd1104-rate-libs-revA/32:/usr/cpu2006/amd1104-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6276 chips + 128GB Memory using RHEL 6.1
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso |
-march=bdver1 -Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET |
-march=bdver1 -Ofast -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
435.gromacs: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m |
436.cactusADM: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:blocking=off -LNO:prefetch=2 -HP -CG:locs_shallow_depth=1 -CG:load_exe=0 -WOPT:sib=on |
454.calculix: | -march=bdver1 -Ofast -OPT:unroll_size=256 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m |
481.wrf: | -march=bdver1 -Ofast -LNO:blocking=off -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -CG:load_exe=1 -HP -WOPT:sib=on |
