CPU2006 license: | 9006 | Test date: | Jun-2011 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Feb-2011 |
Tested by: | NEC Corporation | Software Availability: | Mar-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5687 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.87 GHz |
CPU MHz: | 3600 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (6 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
Compiler: | C/C++/Fortran: Version 12.0.3.174 of Intel Compiler XE Build 20110309 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

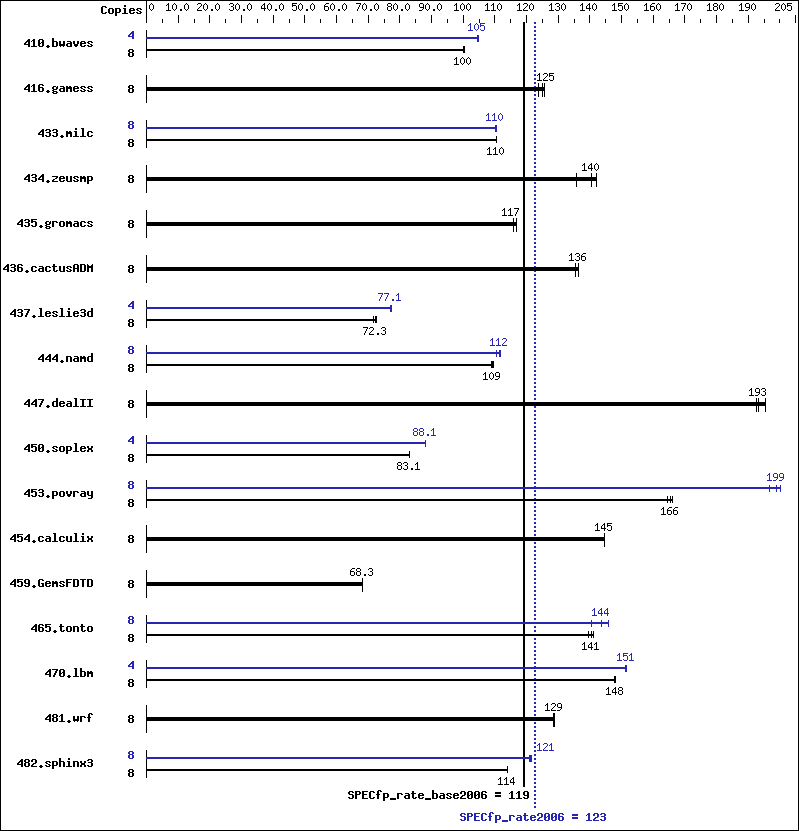

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 1081 | 101 | 1085 | 100 | 1087 | 100 | 4 | 521 | 104 | 519 | 105 | 520 | 105 |
416.gamess | 8 | 1253 | 125 | 1267 | 124 | 1246 | 126 | 8 | 1253 | 125 | 1267 | 124 | 1246 | 126 |
433.milc | 8 | 664 | 111 | 665 | 110 | 665 | 110 | 8 | 665 | 110 | 666 | 110 | 666 | 110 |
434.zeusmp | 8 | 512 | 142 | 536 | 136 | 519 | 140 | 8 | 512 | 142 | 536 | 136 | 519 | 140 |
435.gromacs | 8 | 489 | 117 | 493 | 116 | 489 | 117 | 8 | 489 | 117 | 493 | 116 | 489 | 117 |
436.cactusADM | 8 | 705 | 136 | 700 | 136 | 701 | 136 | 8 | 705 | 136 | 700 | 136 | 701 | 136 |
437.leslie3d | 8 | 1036 | 72.6 | 1040 | 72.3 | 1050 | 71.6 | 4 | 488 | 77.1 | 488 | 77.1 | 486 | 77.3 |
444.namd | 8 | 588 | 109 | 587 | 109 | 586 | 109 | 8 | 574 | 112 | 580 | 111 | 575 | 112 |
447.dealII | 8 | 468 | 195 | 474 | 193 | 475 | 193 | 8 | 468 | 195 | 474 | 193 | 475 | 193 |
450.soplex | 8 | 802 | 83.2 | 803 | 83.1 | 803 | 83.1 | 4 | 379 | 88.1 | 379 | 88.1 | 379 | 88.1 |
453.povray | 8 | 256 | 166 | 257 | 166 | 259 | 165 | 8 | 214 | 199 | 217 | 197 | 213 | 200 |
454.calculix | 8 | 456 | 145 | 456 | 145 | 456 | 145 | 8 | 456 | 145 | 456 | 145 | 456 | 145 |
459.GemsFDTD | 8 | 1242 | 68.4 | 1243 | 68.3 | 1242 | 68.3 | 8 | 1242 | 68.4 | 1243 | 68.3 | 1242 | 68.3 |
465.tonto | 8 | 560 | 141 | 558 | 141 | 564 | 140 | 8 | 560 | 141 | 540 | 146 | 548 | 144 |
470.lbm | 8 | 743 | 148 | 743 | 148 | 744 | 148 | 4 | 363 | 151 | 363 | 151 | 363 | 151 |
481.wrf | 8 | 694 | 129 | 694 | 129 | 695 | 129 | 8 | 694 | 129 | 694 | 129 | 695 | 129 |
482.sphinx3 | 8 | 1369 | 114 | 1367 | 114 | 1369 | 114 | 8 | 1286 | 121 | 1283 | 122 | 1289 | 121 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Huge pages were not configured for this run
BIOS Settings: Performance/Watt: Traditional Server Class: Custom Data Reuse Optimization: Disabled Memory Voltage: Normal
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
