SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant DL585 G7
(2.20 GHz AMD Opteron 6274)

SPECfp®_rate2006 = 684

SPECfp_rate_base2006 = 635

CPU2006 license:	3	Test date:	Nov-2011
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Nov-2011
Tested by:	Hewlett-Packard Company	Software Availability:	Jul-2011

Hardware
CPU Name:	AMD Opteron 6274
CPU Characteristics:	AMD Turbo CORE technology up to 3.10 GHz
CPU MHz:	2200
FPU:	Integrated
CPU(s) enabled:	64 cores, 4 chips, 16 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache:	None
Memory:	256 GB (32 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 500 GB 7.2 K SAS
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64
Compiler:	C/C++/Fortran: Version 4.2.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

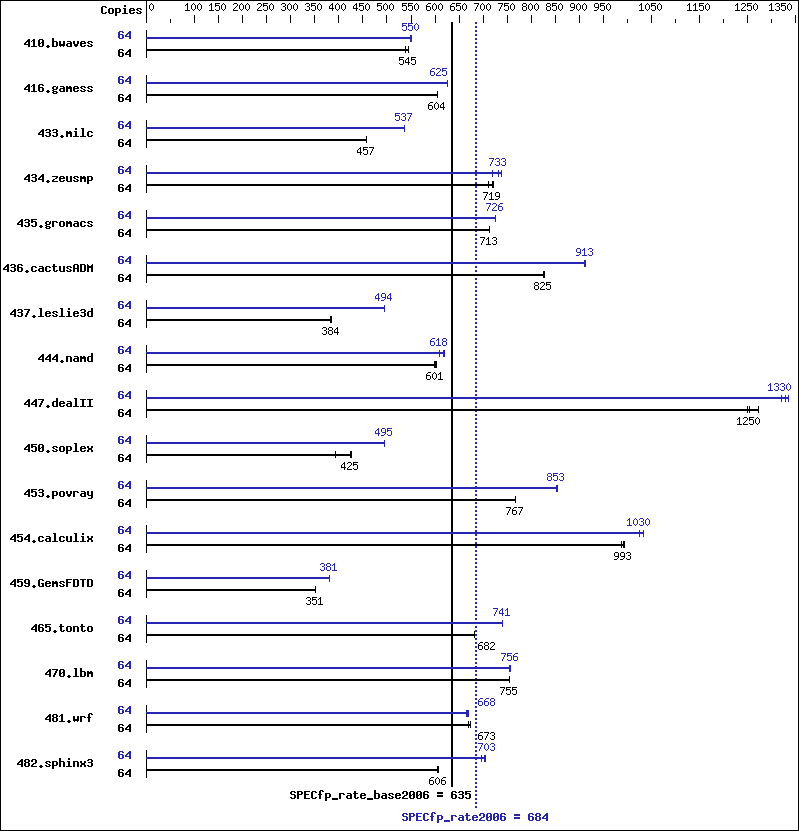

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	64	1613	539	1596	545	1597	545	64	1581	550	1581	550	1582	550
416.gamess	64	2073	604	2073	604	2072	605	64	2003	626	2005	625	2004	625
433.milc	64	1285	457	1285	457	1286	457	64	1094	537	1094	537	1096	536
434.zeusmp	64	807	722	818	712	811	719	64	790	737	809	720	795	733
435.gromacs	64	641	713	640	714	642	712	64	629	726	629	726	629	727
436.cactusADM	64	927	825	925	827	927	825	64	838	913	837	913	839	912
437.leslie3d	64	1568	384	1568	384	1567	384	64	1217	494	1216	495	1217	494
444.namd	64	854	601	851	603	856	600	64	828	620	842	609	831	618
447.dealII	64	575	1270	585	1250	584	1250	64	551	1330	554	1320	549	1330
450.soplex	64	1358	393	1252	426	1256	425	64	1078	495	1079	495	1079	495
453.povray	64	444	767	444	767	443	768	64	399	854	399	853	399	853
454.calculix	64	531	995	535	987	532	993	64	516	1020	515	1030	511	1030
459.GemsFDTD	64	1935	351	1932	351	1934	351	64	1780	381	1780	381	1781	381
465.tonto	64	924	682	923	682	922	683	64	850	741	850	741	851	740
470.lbm	64	1163	756	1165	755	1164	755	64	1164	755	1163	756	1162	756
481.wrf	64	1061	674	1068	670	1062	673	64	1070	668	1067	670	1073	666
482.sphinx3	64	2057	606	2061	605	2058	606	64	1775	703	1770	705	1791	697

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set "echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled"
Set kernel/randomize_va_space=0 in /etc/sysctl.conf

Set vm/nr_hugepages=57344 in /etc/sysctl.conf
Set "nodev       /mnt/hugepages    hugetlbfs   defaults  0 0" in /etc/fstab

Platform Notes

BIOS settings:
 HP Power Profile set to Maximum Performance
 Thermal Configuration set to Increased Cooling

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/cpu2006/amd1104-rate-libs-revA/32:/cpu2006/amd1104-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=bdver1 -Ofast -CG:movnti=1 -CG:locs_best=on -HP:bdt=2m:heap=2m -IPA:plimit=7000 -IPA:callee_limit=1200 -OPT:struct_array_copy=2 -OPT:alias=field_sensitive -mso
470.lbm:	-march=bdver1 -Ofast -CG:cmp_peep=on -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -HP:bdt=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso
482.sphinx3:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:cmp_peep=on -CG:local_sched_alg=2 -INLINE:aggressive=on -LNO:prefetch=2 -LNO:prefetch_ahead=4 -mso

C++ benchmarks:

444.namd:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=bdver1 -Ofast -D__OPEN64_FAST_SET -static -INLINE:aggressive=on -LNO:opt=0 -LNO:simd=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -CG:movext_icmp=off -TENV:frame_pointer=off
450.soplex:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:RO=1 -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -fno-exceptions -m32 -HP:bdt=2m:heap=2m -WOPT:sib=on
453.povray:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:pre_local_sched=off -INLINE:aggressive=on -HP:bd=2m:heap=2m -OPT:transform=2 -OPT:alias=disjoint -WOPT:aggcm=0

Fortran benchmarks:

410.bwaves:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:Ofast -OPT:treeheight=on -LNO:blocking=off -LNO:ignore_feedback=off -LNO:fu=4 -LNO:loop_model_simd=on -LNO:simd_rm_unity_remainder=on -WOPT:aggstr=0 -HP:bdt=2m:heap=2m -CG:cmp_peep=on
416.gamess:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:simd=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -OPT:unroll_times_max=2 -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -WOPT:sib=on
434.zeusmp:	-march=bdver1 -Ofast -LNO:blocking=off -LNO:interchange=off -HP:bdt=2m:heap=2m
437.leslie3d:	-march=bdver1 -Ofast -CG:pre_minreg_level=2 -LNO:simd=0 -LNO:fusion=2 -HP:bdt=2m:heap=2m -mso
459.GemsFDTD:	-march=bdver1 -Ofast -OPT:unroll_size=0 -LNO:fission=2 -CG:load_exe=0 -CG:local_sched_alg=2 -HP
465.tonto:	-march=bdver1 -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

435.gromacs:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:blocking=off -LNO:prefetch=2 -HP -CG:locs_shallow_depth=1 -CG:load_exe=0 -WOPT:sib=on
454.calculix:	-march=bdver1 -Ofast -OPT:unroll_size=256 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m
481.wrf:	-march=bdver1 -Ofast -LNO:blocking=off -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -CG:load_exe=1 -HP -WOPT:sib=on

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd1104-platform-rate-revA.html,
http://www.spec.org/cpu2006/flags/hp-amd-linux-flags.20100330.html,
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd1104-platform-rate-revA.xml,
http://www.spec.org/cpu2006/flags/hp-amd-linux-flags.20100330.xml,
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revA.xml.
