CPU2006 license: | 55 | Test date: | Feb-2012 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2012 |
Tested by: | Dell Inc. | Software Availability: | Feb-2012 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2637 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 5 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 1 x 500 GB 7200 RPM SATA |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP2 (x86_64) 3.0.13-0.9-default |
Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (add definition here) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

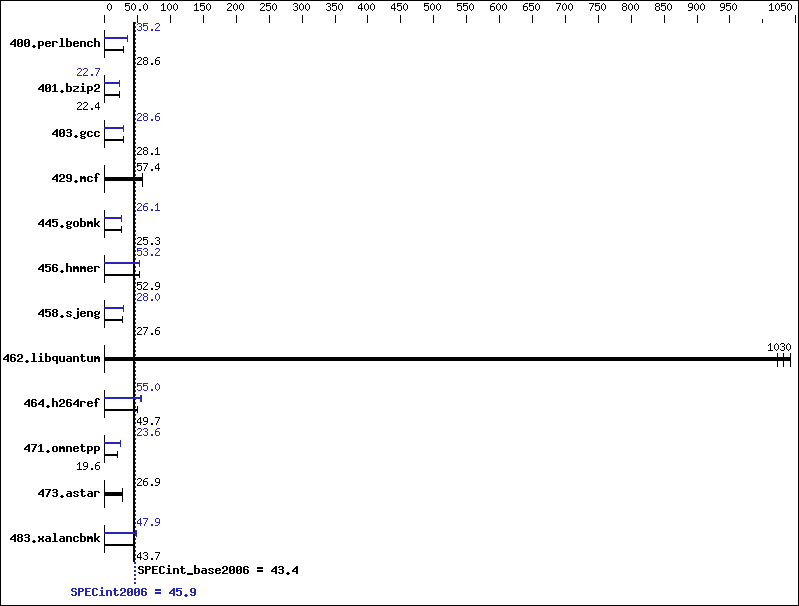

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 339 | 28.8 | 342 | 28.6 | 350 | 27.9 | 278 | 35.1 | 278 | 35.2 | 278 | 35.2 |
401.bzip2 | 435 | 22.2 | 430 | 22.4 | 432 | 22.4 | 422 | 22.9 | 425 | 22.7 | 426 | 22.6 |
403.gcc | 286 | 28.1 | 286 | 28.1 | 288 | 28.0 | 282 | 28.6 | 282 | 28.5 | 282 | 28.6 |
429.mcf | 159 | 57.4 | 159 | 57.4 | 159 | 57.4 | 159 | 57.4 | 159 | 57.4 | 159 | 57.4 |
445.gobmk | 414 | 25.3 | 414 | 25.3 | 412 | 25.5 | 402 | 26.1 | 402 | 26.1 | 402 | 26.1 |
456.hmmer | 176 | 52.9 | 176 | 52.9 | 176 | 52.9 | 175 | 53.2 | 177 | 52.8 | 175 | 53.2 |
458.sjeng | 439 | 27.6 | 442 | 27.4 | 439 | 27.6 | 431 | 28.0 | 432 | 28.0 | 433 | 27.9 |
462.libquantum | 19.9 | 1040 | 20.1 | 1030 | 20.3 | 1020 | 19.9 | 1040 | 20.1 | 1030 | 20.3 | 1020 |
464.h264ref | 445 | 49.7 | 447 | 49.5 | 446 | 49.7 | 405 | 54.6 | 401 | 55.2 | 402 | 55.0 |
471.omnetpp | 319 | 19.6 | 319 | 19.6 | 320 | 19.6 | 265 | 23.6 | 264 | 23.6 | 263 | 23.8 |
473.astar | 261 | 26.9 | 261 | 26.9 | 261 | 26.9 | 261 | 26.9 | 261 | 26.9 | 261 | 26.9 |
483.xalancbmk | 158 | 43.8 | 158 | 43.7 | 158 | 43.6 | 144 | 47.9 | 144 | 47.9 | 144 | 47.9 |
Stack size set to unlimited using "ulimit -s unlimited"
System Profile set to Custom CPU Power Management set to Maximum Performance Memory Frequency set to Maximum Performance Turbo Boost set to Enabled C States/C1E set to Enabled Sysinfo program /root/CPU2006-1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on linux-8itg Wed Feb 22 18:20:44 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2637 0 @ 3.00GHz 2 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 2 siblings : 4 physical 0: cores 0 1 physical 1: cores 0 1 cache size : 5120 KB From /proc/meminfo MemTotal: 132122692 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 2 uname -a: Linux linux-8itg 3.0.13-0.9-default #1 SMP Mon Jan 16 17:33:03 UTC 2012 (54ddfaf) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 22 18:20 last=S SPEC is set to: /root/CPU2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext3 455G 59G 373G 14% / Additional information from dmidecode: (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/root/CPU2006-1.2/libs/32:/root/CPU2006-1.2/libs/64" OMP_NUM_THREADS = "4" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | basepeak = yes |
445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
