CPU2006 license: | 19 | Test date: | Feb-2012 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Mar-2012 |
Tested by: | Fujitsu | Software Availability: | Dec-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2667 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
CPU MHz: | 2900 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3L-12800R-11, ECC) |
Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

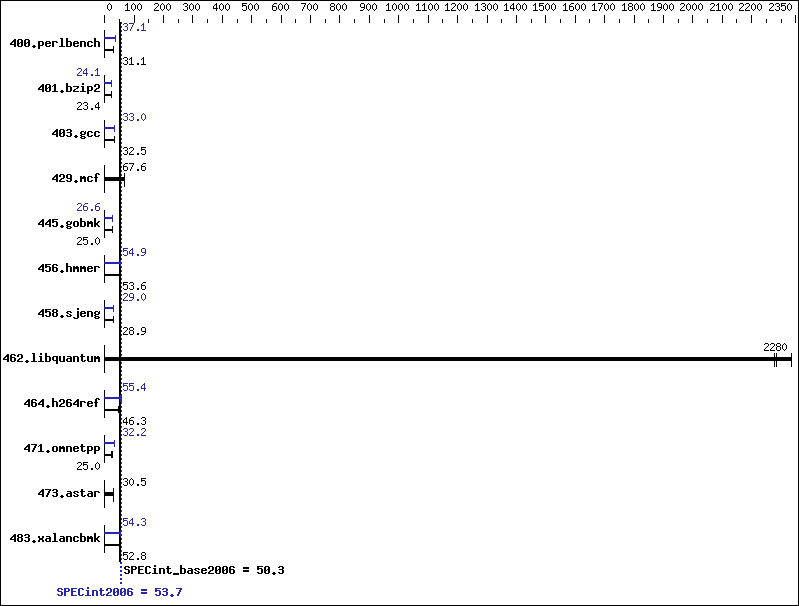

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 315 | 31.1 | 313 | 31.2 | 314 | 31.1 | 263 | 37.1 | 263 | 37.2 | 264 | 37.1 |
401.bzip2 | 413 | 23.4 | 413 | 23.4 | 413 | 23.4 | 400 | 24.1 | 401 | 24.1 | 400 | 24.1 |
403.gcc | 248 | 32.5 | 248 | 32.5 | 248 | 32.5 | 244 | 33.0 | 244 | 33.0 | 244 | 33.0 |
429.mcf | 135 | 67.6 | 135 | 67.7 | 136 | 67.2 | 135 | 67.6 | 135 | 67.7 | 136 | 67.2 |
445.gobmk | 420 | 25.0 | 420 | 25.0 | 421 | 24.9 | 394 | 26.6 | 394 | 26.6 | 394 | 26.6 |
456.hmmer | 174 | 53.6 | 174 | 53.6 | 175 | 53.4 | 170 | 54.9 | 170 | 54.9 | 170 | 55.0 |
458.sjeng | 418 | 28.9 | 418 | 28.9 | 418 | 28.9 | 418 | 28.9 | 418 | 29.0 | 418 | 29.0 |
462.libquantum | 9.09 | 2280 | 9.07 | 2280 | 8.87 | 2340 | 9.09 | 2280 | 9.07 | 2280 | 8.87 | 2340 |
464.h264ref | 478 | 46.3 | 477 | 46.4 | 482 | 45.9 | 399 | 55.4 | 398 | 55.6 | 405 | 54.6 |
471.omnetpp | 256 | 24.4 | 250 | 25.0 | 249 | 25.1 | 195 | 32.0 | 194 | 32.2 | 194 | 32.2 |
473.astar | 227 | 30.9 | 230 | 30.5 | 232 | 30.3 | 227 | 30.9 | 230 | 30.5 | 232 | 30.3 |
483.xalancbmk | 131 | 52.8 | 131 | 52.7 | 130 | 52.9 | 127 | 54.2 | 127 | 54.3 | 127 | 54.4 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Intel HT Technology = Disable Frequency Floor Override = Enable
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64" OMP_NUM_THREADS = "12" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled This result was measured on the PRIMERGY RX350 S7. The PRIMERGY RX350 S7 and the PRIMERGY TX300 S7 are electronically equivalent. For information about Fujitsu please visit: http://www.fujitsu.com
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
