SPEC® CFP2006 Result

Fujitsu

CELSIUS R920 (Intel Xeon E5-2643)

SPECfp®2006 = 83.1

SPECfp_base2006 = 79.4

CPU2006 license:	19	Test date:	Mar-2012
Test sponsor:	Fujitsu	Hardware Availability:	Mar-2012
Tested by:	Fujitsu	Software Availability:	Dec-2011

Hardware
CPU Name:	Intel Xeon E5-2643
CPU Characteristics:	Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz:	3300
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	10 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (16 x 8 GB 2Rx8 PC3-12800R-11, ECC)
Disk Subsystem:	1 x SATA III, 500 GB, 7200 rpm
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.1, 2.6.32-131.0.15.el6.x86_64
Compiler:	C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.2.273 of Intel Fortran Studio XE for Linux
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi - user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

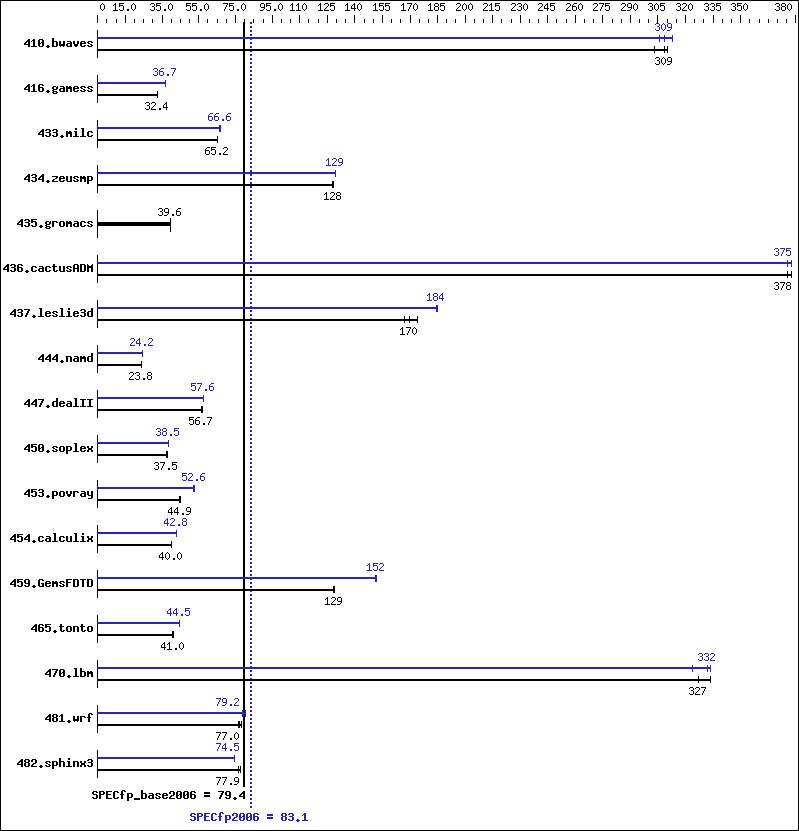

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	44.8	303	44.0	309	43.8	310	44.0	309	44.4	306	43.4	313
416.gamess	602	32.5	606	32.3	604	32.4	533	36.7	533	36.7	533	36.7
433.milc	141	65.1	141	65.2	141	65.2	138	66.6	138	66.7	138	66.4
434.zeusmp	71.2	128	71.0	128	71.0	128	70.4	129	70.4	129	70.4	129
435.gromacs	180	39.6	180	39.8	180	39.6	180	39.6	180	39.8	180	39.6
436.cactusADM	31.8	375	31.6	378	31.6	378	31.8	375	31.6	378	31.8	375
437.leslie3d	54.0	174	55.4	170	56.2	167	50.8	185	51.0	184	51.0	184
444.namd	337	23.8	337	23.8	337	23.8	332	24.2	331	24.2	332	24.2
447.dealII	202	56.7	201	56.8	202	56.6	199	57.6	199	57.6	199	57.5
450.soplex	223	37.5	223	37.4	219	38.0	216	38.6	217	38.5	217	38.4
453.povray	119	44.7	118	44.9	118	45.3	101	52.7	101	52.6	102	52.0
454.calculix	206	40.0	206	40.0	207	39.9	192	42.9	193	42.7	193	42.8
459.GemsFDTD	82.6	128	82.4	129	82.4	129	69.9	152	69.9	152	70.1	151
465.tonto	242	40.7	240	41.0	239	41.2	221	44.6	221	44.5	222	44.4
470.lbm	42.0	327	42.0	327	41.2	333	42.4	324	41.2	333	41.4	332
481.wrf	143	78.1	145	76.8	145	77.0	141	79.2	142	78.5	139	80.2
482.sphinx3	254	76.8	250	77.9	250	77.9	262	74.5	261	74.7	262	74.3

Submit Notes

 The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.
 For full details on using numactl, please refer to your Linux documentation, 'man numactl'

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 BIOS settings:
 Hyper-Threading Technology = Disabled
 Frequency Floor Override = Enabled

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,scatter"
LD_LIBRARY_PATH = "/work/cpu2006/libs/32:/work/cpu2006/libs/64"
OMP_NUM_THREADS = "8"

 Binaries compiled on a system with
 2x Xeon E5-2690 CPU + 64 GB memory using
 Red Hat Enterprise Linux Server release 6.1 (Santiago)
 Added glibc-static-2.12-1.25.el6.x86_64.rpm
 to enable static linking

 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias
470.lbm:	-xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias
482.sphinx3:	-xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel

C++ benchmarks:

444.namd:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32
447.dealII:	-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -static
450.soplex:	-xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias
453.povray:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static
416.gamess:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static
434.zeusmp:	-xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch
437.leslie3d:	Same as 434.zeusmp
459.GemsFDTD:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel
465.tonto:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	-xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias
454.calculix:	-xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias
481.wrf:	Same as 436.cactusADM

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.html,
http://www.spec.org/cpu2006/flags/Fujitsu-Platform.20120313.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-Platform.20120313.xml.
