SPEC® CFP2006 Result

Oracle Corporation

Sun Fire X4270 M3 (Intel Xeon E5-2690 2.9GHz)

SPECfp®_rate2006 = 497

SPECfp_rate_base2006 = 461

CPU2006 license:	6	Test date:	Apr-2012
Test sponsor:	Oracle Corporation	Hardware Availability:	Apr-2012
Tested by:	Oracle Corporation	Software Availability:	Jun-2012

Hardware
CPU Name:	Intel Xeon E5-2690
CPU Characteristics:	Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz:	2900
FPU:	Integrated
CPU(s) enabled:	16 cores, 2 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable:	1 or 2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	1 x 600 GB 10K RPM SAS
Other Hardware:	None

Software
Operating System:	Oracle Solaris 11 11/11 (SRU 03)
Compiler:	C/C++/Fortran: Version 12.3 of Oracle Solaris Studio (patch update 1, tested with nightly build 20120313)
Auto Parallel:	No
File System:	zfs
System State:	Default
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

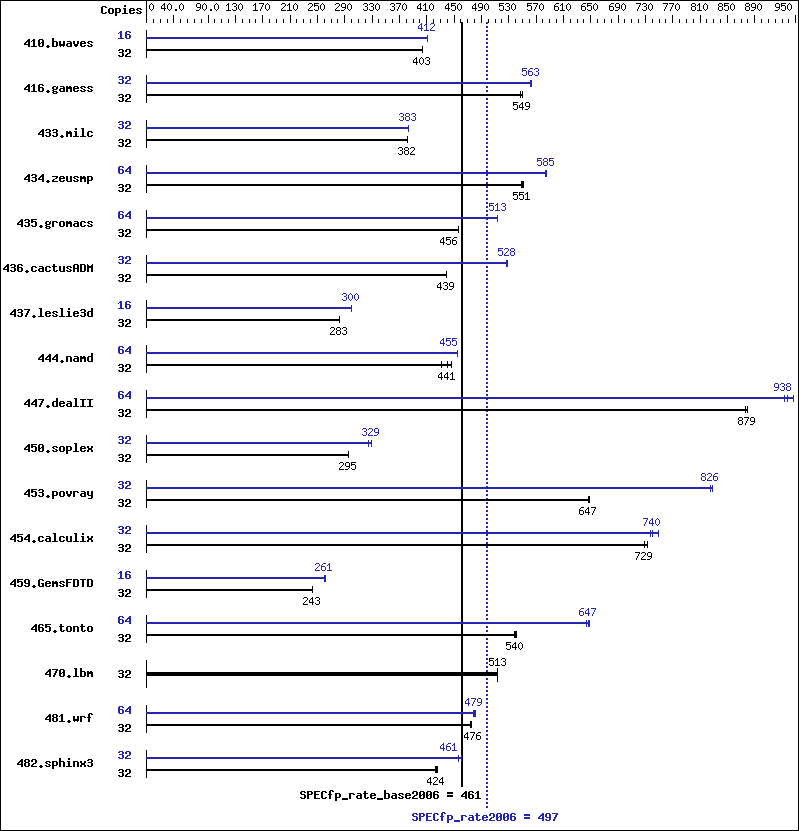

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	32	1078	403	1078	403	1078	403	16	528	412	528	412	528	412
416.gamess	32	1145	547	1140	550	1140	549	32	1113	563	1112	563	1114	563
433.milc	32	769	382	770	382	770	382	32	767	383	767	383	767	383
434.zeusmp	32	531	549	529	551	528	551	64	997	584	996	585	996	585
435.gromacs	32	501	456	500	457	501	456	64	890	513	891	513	890	513
436.cactusADM	32	870	440	870	439	870	439	32	725	527	725	528	725	528
437.leslie3d	32	1063	283	1063	283	1064	283	16	501	300	502	300	501	300
444.namd	32	582	441	594	432	576	446	64	1128	455	1130	454	1128	455
447.dealII	32	416	880	416	879	417	877	64	781	938	785	933	773	947
450.soplex	32	903	296	904	295	905	295	32	810	330	811	329	823	324
453.povray	32	263	646	263	648	263	647	32	206	826	205	829	206	826
454.calculix	32	362	729	363	728	360	733	32	357	740	353	749	358	738
459.GemsFDTD	32	1400	243	1400	242	1399	243	16	651	261	650	261	649	261
465.tonto	32	581	542	584	539	583	540	64	972	648	973	647	979	643
470.lbm	32	856	513	856	514	856	513	32	856	513	856	514	856	513
481.wrf	32	752	476	751	476	753	474	64	1492	479	1492	479	1487	481
482.sphinx3	32	1466	425	1474	423	1472	424	32	1351	462	1354	461	1365	457

Submit Notes

 The config file option 'submit' was used to bind processes to CPU threads with pbind(1)

Operating System Notes

 ulimit -s 10000  (shell): increases stack

 /etc/system parameters
    autoup=1000
    zfs:zfs_arc_max=0x400000000
    zfs:zfs_arc_min=0x400000000
    ncsize=0x10000
    lpg_alloc_prefer=1

 gzip compression set using "zfs set compression=gzip <zfs-filesystem>"

Platform Notes

 Default BIOS Settings were used, except:
   Energy Performance set to Performance

 Oracle's Sun Fire X4270 M3 is now known as the Sun Server X3-2L.

 Sysinfo program /export/home/gnana/cpu2006v1.2/Docs/sysinfo
 : 6775  2011-08-16 #f7622badcf24e01c368b1db4377c
 running on bur398-107 Sat Apr  7 02:52:39 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo


 From /usr/sbin/psrinfo -pv
  Intel(r) Xeon(r) CPU E5-2690 0 @ 2.90GHz
  x86 (GenuineIntel 206D7 family 6 model 45 step 7 clock 2900 MHz)

 /usr/sbin/psrinfo -p:   2 chips
 /usr/sbin/psrinfo -pv | grep "core has" | wc -l:  16 cores
 /usr/sbin/psrinfo | wc -l: 32 threads

 /usr/sbin/prtconf | grep "Memory size:": 131062 Megabytes

 /etc/release:
                              Oracle Solaris 11 11/11 X86
 uname -a:
 SunOS bur398-107 5.11 11.0 i86pc i386 i86pc

 disk: df -h
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export/home      547G    17G        81G    17%    /export/home

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "1"

Base Compiler Invocation

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

f90

Benchmarks using both Fortran and C:

cc f90

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

f90

Benchmarks using both Fortran and C:

cc f90

Peak Portability Flags

436.cactusADM:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:	-g -fast -xipo=2 -m64 -xpagesize=2M -xalias_level=std
470.lbm:	basepeak = yes
482.sphinx3:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xpagesize=2M -xalias_level=std -xunroll=6 -W2,-Aujam:noinner -lumem -lmvec

C++ benchmarks:

444.namd:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xO3 -xprefetch=no%auto -m64 -xpagesize=2M -xalias_level=compatible -library=stlport4
447.dealII:	-fast -xipo=2 -m64 -xpagesize=2M -xalias_level=compatible -library=stdcxx4 -xvector -xprefetch
450.soplex:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xpagesize=2M -xalias_level=compatible -library=stlport4 -m32 -qoption iropt -Rujam -qoption iropt -Rtile
453.povray:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xprefetch=no%auto -xipo=2 -m64 -xpagesize=2M -xalias_level=compatible -qoption iropt -Atile:skew=on -qoption iropt -Ainline:cs=700 -library=stlport4

Fortran benchmarks:

410.bwaves:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xpagesize=2M
416.gamess:	-fast -xipo=2 -m64 -xpagesize=2M -xunroll=1 -xvector=no%simd -xprefetch=no%auto
434.zeusmp:	Same as 410.bwaves
437.leslie3d:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64
459.GemsFDTD:	Same as 410.bwaves
465.tonto:	-xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -m64 -xpagesize=2M -xvector=lib -xalias -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xipo=2 -m64 -xpagesize=2M -fsimple=2 -Qoption ube -fsimple=3 -xvector=no%simd
436.cactusADM:	-g -fast(cc) -fast(f90) -xipo=2 -m64 -xpagesize=2M -lumem
454.calculix:	-g -fast(cc) -fast(f90) -xipo=0 -m64 -xpagesize=2M -xprefetch_level=2 -xprefetch_auto_type=indirect_array_access -Qoption ube -xprefetch_mult=24 -xunroll=2
481.wrf:	-g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xipo=2 -m64

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.html,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.xml,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.xml.
