| CPU2006 license: | 3 | Test date: | Apr-2012 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jun-2012 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Mar-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2630 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 x 146 GB 15 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) Kernel 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 HP Array Configuration Utility, CLI version |

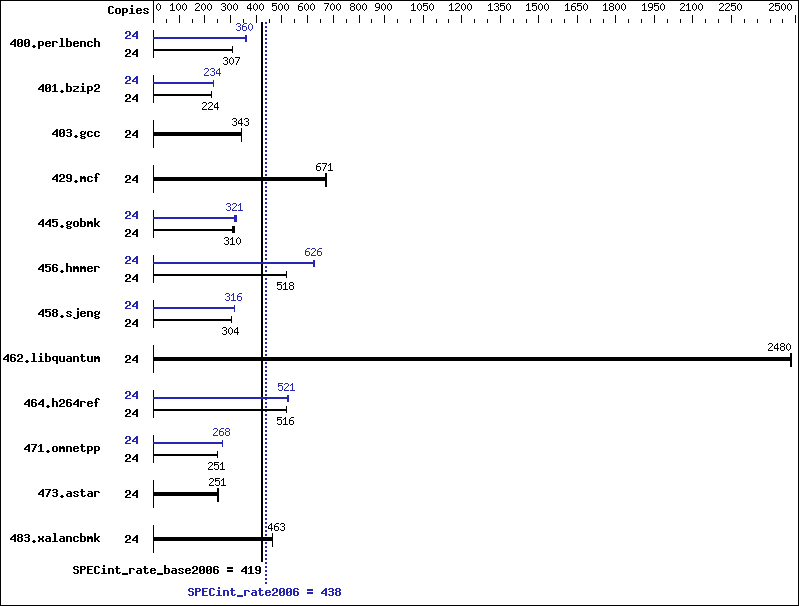

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 762 | 308 | 763 | 307 | 763 | 307 | 24 | 651 | 360 | 654 | 359 | 650 | 361 |
| 401.bzip2 | 24 | 1034 | 224 | 1032 | 224 | 1023 | 226 | 24 | 989 | 234 | 989 | 234 | 994 | 233 |
| 403.gcc | 24 | 563 | 343 | 563 | 343 | 565 | 342 | 24 | 563 | 343 | 563 | 343 | 565 | 342 |
| 429.mcf | 24 | 326 | 672 | 326 | 671 | 327 | 670 | 24 | 326 | 672 | 326 | 671 | 327 | 670 |
| 445.gobmk | 24 | 815 | 309 | 812 | 310 | 801 | 314 | 24 | 784 | 321 | 796 | 316 | 782 | 322 |
| 456.hmmer | 24 | 432 | 518 | 432 | 518 | 432 | 519 | 24 | 359 | 624 | 358 | 626 | 357 | 627 |
| 458.sjeng | 24 | 956 | 304 | 957 | 303 | 955 | 304 | 24 | 918 | 316 | 919 | 316 | 920 | 316 |
| 462.libquantum | 24 | 200 | 2480 | 201 | 2480 | 200 | 2480 | 24 | 200 | 2480 | 201 | 2480 | 200 | 2480 |
| 464.h264ref | 24 | 1029 | 516 | 1029 | 516 | 1029 | 516 | 24 | 1013 | 524 | 1020 | 521 | 1018 | 521 |
| 471.omnetpp | 24 | 598 | 251 | 598 | 251 | 599 | 250 | 24 | 560 | 268 | 560 | 268 | 561 | 267 |
| 473.astar | 24 | 672 | 251 | 669 | 252 | 671 | 251 | 24 | 672 | 251 | 669 | 252 | 671 | 251 |
| 483.xalancbmk | 24 | 358 | 463 | 357 | 464 | 359 | 461 | 24 | 358 | 463 | 357 | 464 | 359 | 461 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> Drive Write Cache set to Enabled in HP Array Configuration Utility, CLI version Accelerator Ratio for Reads/Writes set to = 100% Read / 0% Write in HP Array Configuration Utility, CLI version
Platform Notes
BIOS configuration: HP Power Profile set to Custom Energy/Performance Bias is set to Maximum Performance Thermal Configuration set to Maximum Cooling Collaborative Power Control set to Disabled Processor Power and Utilization Monitoring set to Disabled Sysinfo program /cpu2006/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on BL460G8-2 Wed Dec 28 19:14:48 2011 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2630 0 @ 2.30GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132120004 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux BL460G8-2 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Dec 28 18:00 SPEC is set to: /cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_rh62-lv_root ext4 50G 21G 26G 45% / Additional information from dmidecode: BIOS HP I31 02/21/2012 Memory: 16x Not Specified Not Specified 8 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/cpu2006/libs2/32:/cpu2006/libs2/64" Binaries compiled on a system with 2x Xeon E5-2667 CPU + 256GB memory using SLES11 SP2,RC3
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/spec/libs2/32 -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/libs2/32 -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
