| CPU2006 license: | 19 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | May-2012 |
| Tested by: | Fujitsu | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Pentium G640 |
| CPU Characteristics: | |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (2 x 8 GB 2Rx8 PC3-12800E-11, ECC, running at 1067 MHz and CL7) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.293 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

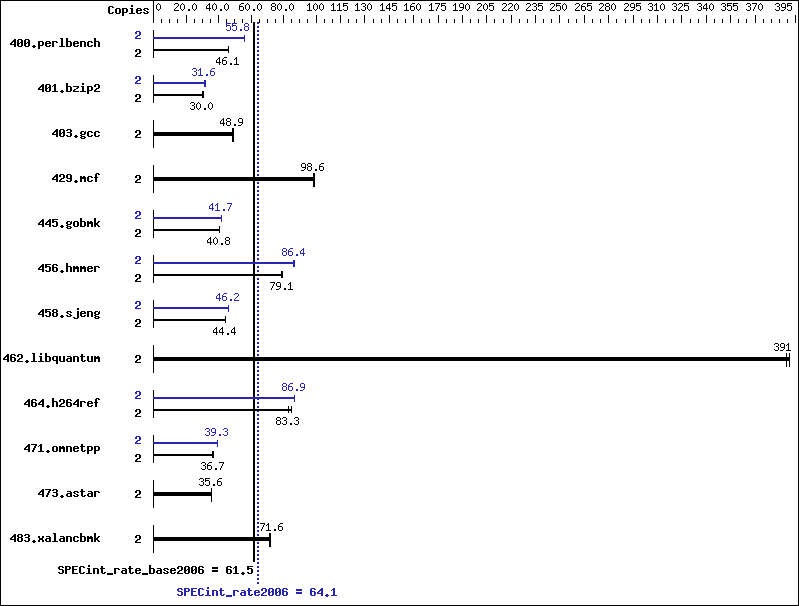

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 424 | 46.1 | 424 | 46.0 | 423 | 46.2 | 2 | 350 | 55.8 | 350 | 55.8 | 350 | 55.8 |
| 401.bzip2 | 2 | 643 | 30.0 | 631 | 30.6 | 644 | 30.0 | 2 | 612 | 31.6 | 608 | 31.7 | 613 | 31.5 |
| 403.gcc | 2 | 329 | 48.9 | 330 | 48.9 | 330 | 48.8 | 2 | 329 | 48.9 | 330 | 48.9 | 330 | 48.8 |
| 429.mcf | 2 | 185 | 98.6 | 185 | 98.5 | 185 | 98.7 | 2 | 185 | 98.6 | 185 | 98.5 | 185 | 98.7 |
| 445.gobmk | 2 | 514 | 40.8 | 515 | 40.7 | 514 | 40.8 | 2 | 503 | 41.7 | 505 | 41.5 | 503 | 41.7 |
| 456.hmmer | 2 | 236 | 79.1 | 236 | 79.0 | 235 | 79.4 | 2 | 216 | 86.5 | 216 | 86.4 | 216 | 86.4 |
| 458.sjeng | 2 | 545 | 44.4 | 544 | 44.5 | 545 | 44.4 | 2 | 524 | 46.2 | 524 | 46.2 | 524 | 46.2 |
| 462.libquantum | 2 | 106 | 391 | 106 | 389 | 106 | 391 | 2 | 106 | 391 | 106 | 389 | 106 | 391 |
| 464.h264ref | 2 | 532 | 83.2 | 522 | 84.8 | 532 | 83.3 | 2 | 509 | 86.9 | 512 | 86.5 | 509 | 86.9 |
| 471.omnetpp | 2 | 343 | 36.4 | 341 | 36.7 | 340 | 36.7 | 2 | 319 | 39.2 | 318 | 39.3 | 318 | 39.3 |
| 473.astar | 2 | 393 | 35.7 | 396 | 35.4 | 395 | 35.6 | 2 | 393 | 35.7 | 396 | 35.4 | 395 | 35.6 |
| 483.xalancbmk | 2 | 193 | 71.6 | 193 | 71.4 | 193 | 71.7 | 2 | 193 | 71.6 | 193 | 71.4 | 193 | 71.7 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64" Binaries compiled on a system with 1x E3-1270v2 CPU + 32 GB memory using RHEL6.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
