| CPU2006 license: | 19 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | May-2012 |
| Tested by: | Fujitsu | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2430L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6 x 8 GB 2Rx4 PC3L-12800R-11, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.293 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

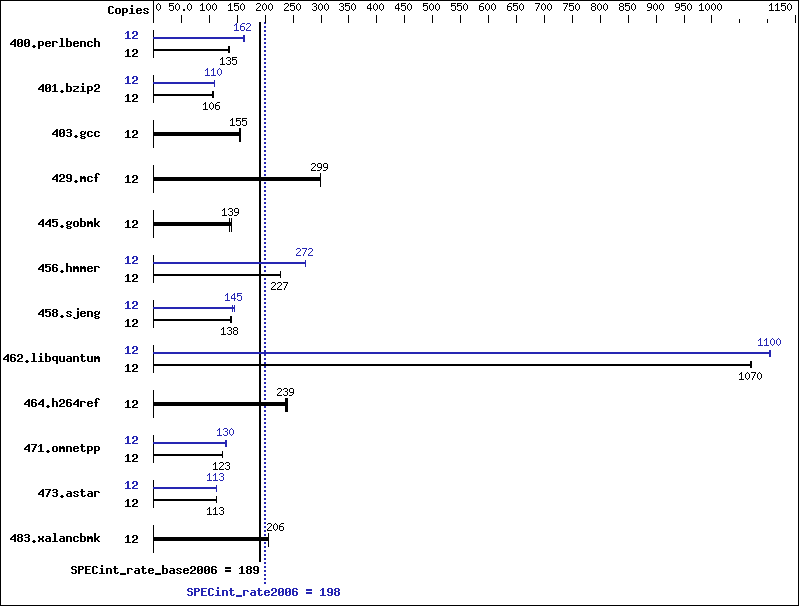

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 12 | 868 | 135 | 867 | 135 | 865 | 136 | 12 | 726 | 162 | 721 | 163 | 724 | 162 |
| 401.bzip2 | 12 | 1089 | 106 | 1080 | 107 | 1094 | 106 | 12 | 1056 | 110 | 1055 | 110 | 1053 | 110 |
| 403.gcc | 12 | 626 | 154 | 623 | 155 | 625 | 155 | 12 | 626 | 154 | 623 | 155 | 625 | 155 |
| 429.mcf | 12 | 366 | 299 | 367 | 298 | 365 | 299 | 12 | 366 | 299 | 367 | 298 | 365 | 299 |
| 445.gobmk | 12 | 927 | 136 | 902 | 140 | 903 | 139 | 12 | 927 | 136 | 902 | 140 | 903 | 139 |
| 456.hmmer | 12 | 494 | 227 | 494 | 227 | 493 | 227 | 12 | 412 | 272 | 411 | 272 | 411 | 272 |
| 458.sjeng | 12 | 1039 | 140 | 1054 | 138 | 1057 | 137 | 12 | 1032 | 141 | 999 | 145 | 999 | 145 |
| 462.libquantum | 12 | 232 | 1070 | 232 | 1070 | 232 | 1070 | 12 | 225 | 1100 | 225 | 1100 | 225 | 1100 |
| 464.h264ref | 12 | 1123 | 236 | 1111 | 239 | 1105 | 240 | 12 | 1123 | 236 | 1111 | 239 | 1105 | 240 |
| 471.omnetpp | 12 | 611 | 123 | 608 | 123 | 609 | 123 | 12 | 578 | 130 | 575 | 131 | 576 | 130 |
| 473.astar | 12 | 746 | 113 | 746 | 113 | 743 | 113 | 12 | 748 | 113 | 746 | 113 | 746 | 113 |
| 483.xalancbmk | 12 | 402 | 206 | 402 | 206 | 401 | 207 | 12 | 402 | 206 | 402 | 206 | 401 | 207 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64" Binaries compiled on a system with 2x E5-2650 CPU + 96 GB memory using RHEL6.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | basepeak = yes |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 473.astar: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
