SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

bullion E7-4870 (160 cores - 4TB RAM)

CPU2006 license: 20 Test date: Jun-2012
Test sponsor: Bull SAS Hardware Availability: Jan-2012
Tested by: Bull SAS Software Availability: Oct-2011

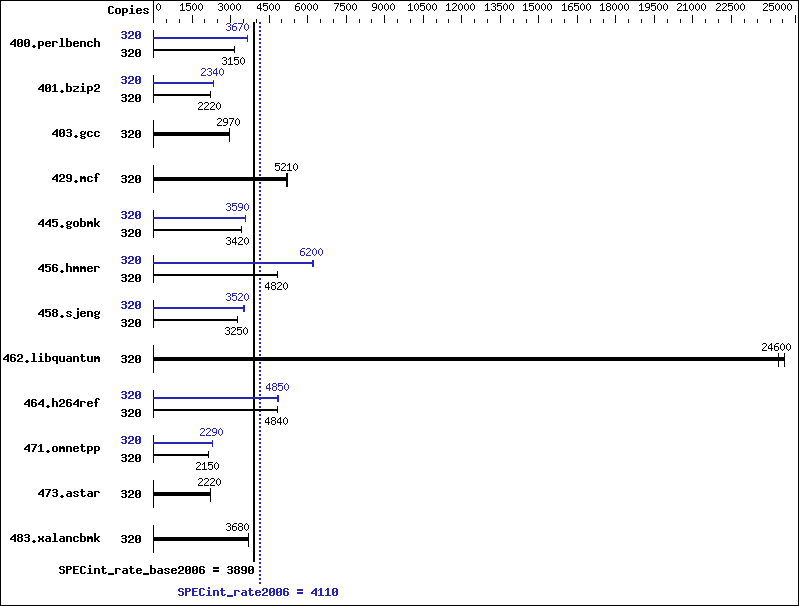

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-4870
CPU Characteristics: Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 160 cores, 16 chips, 10 cores/chip, 2 threads/core
CPU(s) orderable: 4,8,12,16 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 4 TB (256 x 16 GB 2Rx4 PC3-8500R-7, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1
(Santiago)
2.6.32-131.0.15.el6.x86_64
Compiler: C/C++: Version 12.1.0.225 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: tmpfs
System State: Run level 3 (multiuser)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V9.01

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 320 992 3150 994 3150 995 3140 320 850 3680 851 3670 852 3670
401.bzip2 320 1390 2220 1389 2220 1390 2220 320 1324 2330 1323 2340 1321 2340
403.gcc 320 873 2950 867 2970 866 2970 320 873 2950 867 2970 866 2970
429.mcf 320 561 5210 560 5210 562 5190 320 561 5210 560 5210 562 5190
445.gobmk 320 978 3430 981 3420 982 3420 320 932 3600 935 3590 934 3590
456.hmmer 320 619 4820 617 4840 620 4820 320 481 6210 481 6200 482 6200
458.sjeng 320 1190 3250 1191 3250 1186 3270 320 1100 3520 1101 3520 1098 3530
462.libquantum 320 270 24600 273 24300 270 24600 320 270 24600 273 24300 270 24600
464.h264ref 320 1469 4820 1464 4840 1463 4840 320 1459 4850 1458 4860 1465 4830
471.omnetpp 320 931 2150 930 2150 930 2150 320 873 2290 873 2290 874 2290
473.astar 320 1010 2220 1012 2220 1016 2210 320 1010 2220 1012 2220 1016 2210
483.xalancbmk 320 600 3680 600 3680 598 3690 320 600 3680 600 3680 598 3690

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 SPEC files placed in /spec2006, with /spec2006
 mounted as tmpfs with mpol=interleave, size=900G
 Stack size set to unlimited using "ulimit -s unlimited"
 Kernel booted with option clocksource=jiffies (allows to count time with interrupts at
 1 jiffy period instead using HPET counters)
 Bios set with Max_Numa_Nodes_per_module to 4
 Bios set with Memory hemisphere mode

Platform Notes

 Sysinfo program /spec2006/config/sysinfo.rev6800
 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3
 running on rh61-mesca-wsm64 Sat Jun 16 22:20:10 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7- 4870 @ 2.40GHz
       16 "physical id"s (chips)
       320 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 10
       siblings  : 20
       physical 0: cores 0 1 2 8 9 16 17 18 24 25
       physical 1: cores 0 1 2 8 9 16 17 18 24 25
       physical 2: cores 0 1 2 8 9 16 17 18 24 25
       physical 3: cores 0 1 2 8 9 16 17 18 24 25
       physical 4: cores 0 1 2 8 9 16 17 18 24 25
       physical 5: cores 0 1 2 8 9 16 17 18 24 25
       physical 6: cores 0 1 2 8 9 16 17 18 24 25
       physical 7: cores 0 1 2 8 9 16 17 18 24 25
       physical 8: cores 0 1 2 8 9 16 17 18 24 25
       physical 9: cores 0 1 2 8 9 16 17 18 24 25
       physical 10: cores 0 1 2 8 9 16 17 18 24 25
       physical 11: cores 0 1 2 8 9 16 17 18 24 25
       physical 12: cores 0 1 2 8 9 16 17 18 24 25
       physical 13: cores 0 1 2 8 9 16 17 18 24 25
       physical 14: cores 0 1 2 8 9 16 17 18 24 25
       physical 15: cores 0 1 2 8 9 16 17 18 24 25
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       4233494120 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.1 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.1 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.1 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux rh61-mesca-wsm64 2.6.32-131.0.15.el6.x86_64 #1 SMP Tue May 10 15:42:40
    EDT 2011 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jun 14 01:41 last=5

 SPEC is set to: /spec2006
    Filesystem    Type    Size  Used Avail Use% Mounted on
    none         tmpfs    900G  604G  297G  68% /spec2006

 Additional information from dmidecode:

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/spec2006/libs/32:/spec2006/libs/64"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RHEL5.5
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3   -Wl,-z,muldefs   -L/smartheap -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -auto-ilp32
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32   -ansi-alias
403.gcc:  basepeak = yes
429.mcf:  basepeak = yes
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias   -opt-mem-layout-trans=3
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/smartheap -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.html,
http://www.spec.org/cpu2006/flags/Bull-Platform-Settings-V1.2-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.xml,
http://www.spec.org/cpu2006/flags/Bull-Platform-Settings-V1.2-revB.xml.
