| CPU2006 license: | 13 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Apr-2012 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-3570S |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 3100 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11) |
| Disk Subsystem: | 1 TB Seagate SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Ultimate (64-bit) 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 12.1.0.229 of Intel C++ Studio XE for Windows; Fortran: Version 12.1.0.229 of Intel Fortran Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 9.01 from http://www.microquill.com/ |

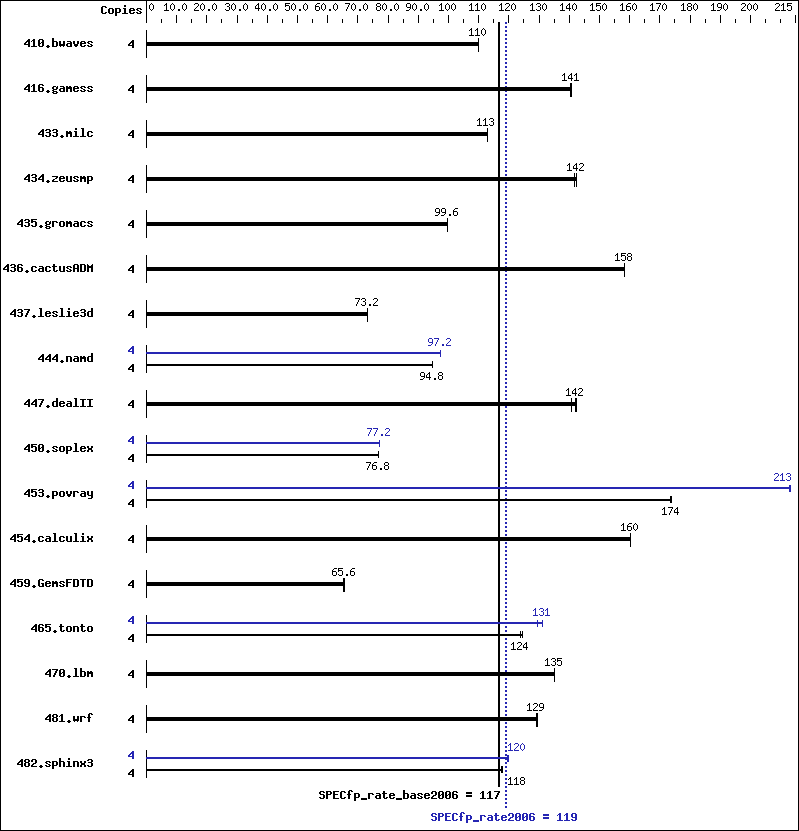

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 495 | 110 | 494 | 110 | 494 | 110 | 4 | 495 | 110 | 494 | 110 | 494 | 110 |
| 416.gamess | 4 | 556 | 141 | 556 | 141 | 558 | 140 | 4 | 556 | 141 | 556 | 141 | 558 | 140 |
| 433.milc | 4 | 326 | 113 | 326 | 113 | 326 | 113 | 4 | 326 | 113 | 326 | 113 | 326 | 113 |
| 434.zeusmp | 4 | 257 | 142 | 256 | 142 | 256 | 142 | 4 | 257 | 142 | 256 | 142 | 256 | 142 |
| 435.gromacs | 4 | 287 | 99.6 | 287 | 99.6 | 287 | 99.6 | 4 | 287 | 99.6 | 287 | 99.6 | 287 | 99.6 |
| 436.cactusADM | 4 | 302 | 158 | 302 | 158 | 302 | 158 | 4 | 302 | 158 | 302 | 158 | 302 | 158 |
| 437.leslie3d | 4 | 512 | 73.2 | 513 | 73.2 | 512 | 73.2 | 4 | 512 | 73.2 | 513 | 73.2 | 512 | 73.2 |
| 444.namd | 4 | 338 | 94.8 | 338 | 94.8 | 338 | 94.8 | 4 | 330 | 97.2 | 330 | 97.2 | 330 | 97.2 |
| 447.dealII | 4 | 322 | 142 | 325 | 141 | 321 | 142 | 4 | 322 | 142 | 325 | 141 | 321 | 142 |
| 450.soplex | 4 | 434 | 76.8 | 434 | 76.8 | 435 | 76.8 | 4 | 433 | 77.2 | 433 | 77.2 | 433 | 77.2 |
| 453.povray | 4 | 123 | 174 | 122 | 174 | 122 | 174 | 4 | 99.9 | 213 | 99.9 | 213 | 100 | 213 |
| 454.calculix | 4 | 206 | 160 | 206 | 160 | 206 | 160 | 4 | 206 | 160 | 206 | 160 | 206 | 160 |
| 459.GemsFDTD | 4 | 649 | 65.2 | 648 | 65.6 | 649 | 65.6 | 4 | 649 | 65.2 | 648 | 65.6 | 649 | 65.6 |
| 465.tonto | 4 | 317 | 124 | 318 | 124 | 317 | 124 | 4 | 304 | 130 | 300 | 131 | 300 | 131 |
| 470.lbm | 4 | 407 | 135 | 407 | 135 | 407 | 135 | 4 | 407 | 135 | 407 | 135 | 407 | 135 |
| 481.wrf | 4 | 346 | 129 | 346 | 129 | 345 | 130 | 4 | 346 | 129 | 346 | 129 | 345 | 130 |
| 482.sphinx3 | 4 | 663 | 118 | 660 | 118 | 661 | 118 | 4 | 650 | 120 | 652 | 120 | 652 | 120 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2008" (shortcut provided in the Intel(r) Parallel Studio XE 2011 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\CPU200~1.17A/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltE840F20AAB2E Wed May 16 10:35:32 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Ultimate OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: INTEL_ System Model : DH77KC__ Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 58 Stepping 9 GenuineIntel ~3101 Mhz BIOS Version : Intel Corp. KCH7710H.86A.0069.2012.0224.1825, 2/24/2012 Total Physical Memory: 8,090 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 1024 L3CacheSize : 6144 MaxClockSpeed : 3101 Name : Intel(R) Core(TM) i5-3570S CPU @ 3.10GHz NumberOfCores : 4 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc9 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc9 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc9 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 -names:lowercase |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 /names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
C++ benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -QxAVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc9 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc9 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc9 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -QxAVX -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
C++ benchmarks:
| 444.namd: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 453.povray: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | basepeak = yes |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
