CPU2006 license: | 001176 | Test date: | Jul-2012 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | May-2012 |
Tested by: | Supermicro | Software Availability: | Dec-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E3-1230 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.70 GHz |
CPU MHz: | 3300 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 16 GB (2 x 8 GB 2Rx8 PC3-12800E-11, ECC) |
Disk Subsystem: | 1 x 500 GB SATA II, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago), Kernel 2.6.32-220.el6.x86_64 |
Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

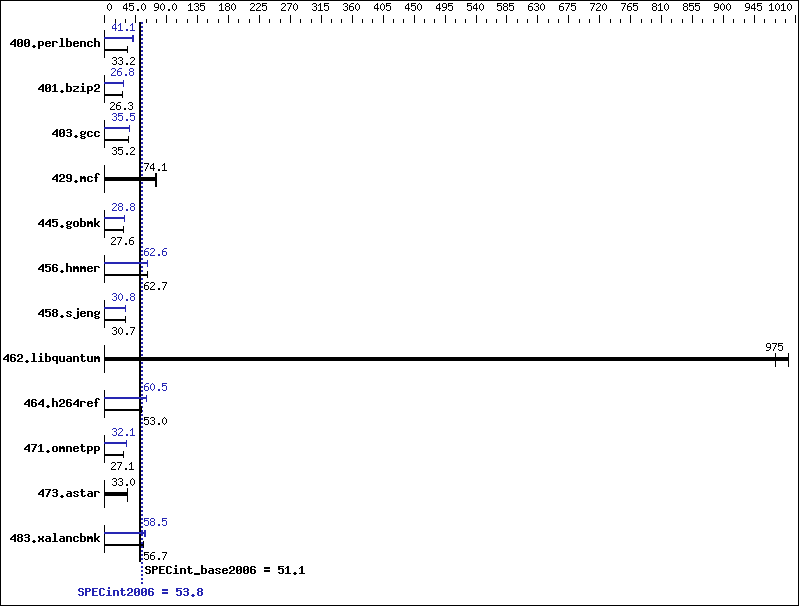

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 295 | 33.1 | 293 | 33.4 | 294 | 33.2 | 238 | 41.1 | 238 | 41.1 | 238 | 41.1 |
401.bzip2 | 368 | 26.3 | 368 | 26.2 | 367 | 26.3 | 360 | 26.8 | 360 | 26.8 | 360 | 26.8 |
403.gcc | 229 | 35.2 | 229 | 35.2 | 229 | 35.2 | 227 | 35.5 | 226 | 35.6 | 227 | 35.5 |
429.mcf | 123 | 74.1 | 122 | 74.6 | 124 | 73.7 | 123 | 74.1 | 122 | 74.6 | 124 | 73.7 |
445.gobmk | 380 | 27.6 | 380 | 27.6 | 380 | 27.6 | 364 | 28.8 | 364 | 28.8 | 364 | 28.8 |
456.hmmer | 149 | 62.7 | 149 | 62.7 | 149 | 62.7 | 149 | 62.6 | 149 | 62.6 | 149 | 62.6 |
458.sjeng | 394 | 30.7 | 395 | 30.6 | 394 | 30.7 | 392 | 30.8 | 393 | 30.8 | 392 | 30.8 |
462.libquantum | 20.8 | 994 | 21.2 | 975 | 21.2 | 975 | 20.8 | 994 | 21.2 | 975 | 21.2 | 975 |
464.h264ref | 418 | 53.0 | 418 | 53.0 | 418 | 52.9 | 366 | 60.5 | 366 | 60.5 | 365 | 60.6 |
471.omnetpp | 231 | 27.1 | 231 | 27.1 | 235 | 26.6 | 196 | 31.9 | 194 | 32.2 | 195 | 32.1 |
473.astar | 212 | 33.0 | 212 | 33.1 | 213 | 32.9 | 212 | 33.0 | 212 | 33.1 | 213 | 32.9 |
483.xalancbmk | 121 | 56.8 | 122 | 56.7 | 122 | 56.5 | 118 | 58.5 | 118 | 58.6 | 118 | 58.3 |
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
As tested, the system used a Supermicro CSE-111T-560CB chassis. The system includes a PWS-562-1H power supply, SNK-P0046P heatsink, and 3 FAN-0106L4 cooling fans. Sysinfo program /home/cpu2006/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on 103-81.inet Sun Jul 15 01:42:47 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E3-1230 V2 @ 3.30GHz 1 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 8 physical 0: cores 0 1 2 3 cache size : 8192 KB From /proc/meminfo MemTotal: 16304896 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux 103-81.inet 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jul 13 21:00 SPEC is set to: /home/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_10381-lv_home ext4 392G 45G 328G 12% /home Additional information from dmidecode: Memory: 2x Hynix/Hyundai HMT41GU7MFR8C-PB 8 GB 1600 MHz 2 rank (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" OMP_NUM_THREADS = "4" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | basepeak = yes |
445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
