SPEC® CFP2006 Result

Copyright 2006-2012 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 1022G-NTF,
AMD Opteron 6380

CPU2006 license: 49 Test date: Sep-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Nov-2012
Tested by: Advanced Micro Devices Software Availability: Aug-2012

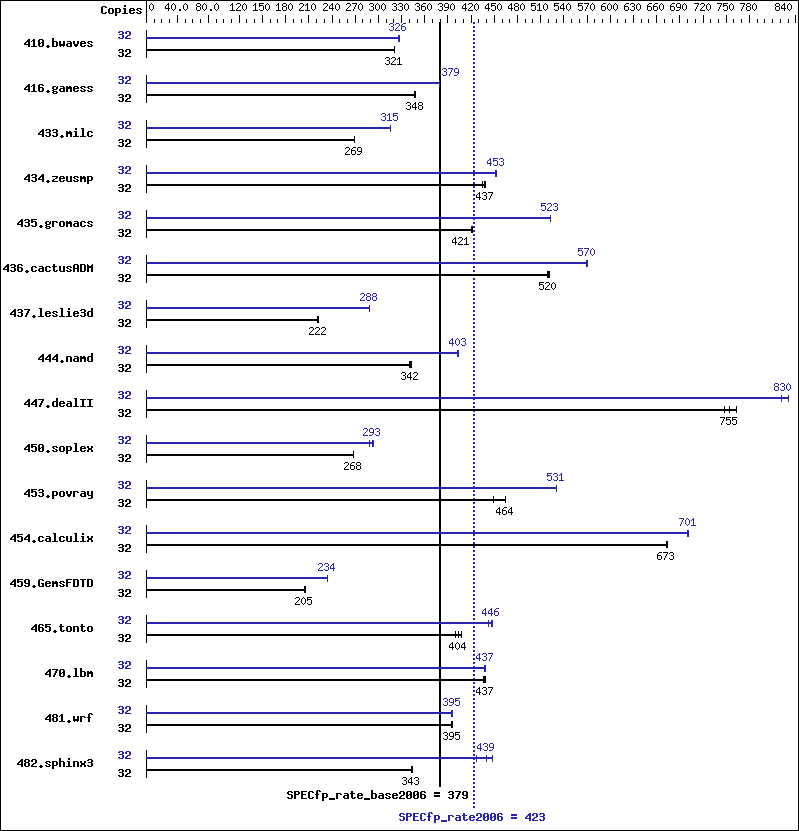

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6380
CPU Characteristics: AMD Turbo CORE technology up to 3.40 GHz
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 32 cores, 2 chips, 16 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 250 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.3,
Kernel 2.6.32-279.el6.x86_64
Compiler: C/C++/Fortran: Version 4.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 32 1354 321 1355 321 1355 321 32 1331 327 1333 326 1332 326
416.gamess 32 1798 349 1806 347 1800 348 32 1653 379 1653 379 1651 380
433.milc 32 1091 269 1091 269 1091 269 32 932 315 932 315 932 315
434.zeusmp 32 664 438 670 434 666 437 32 643 453 645 452 642 453
435.gromacs 32 543 421 542 422 542 421 32 437 522 437 523 437 523
436.cactusADM 32 735 520 733 521 737 519 32 670 571 672 569 670 570
437.leslie3d 32 1354 222 1355 222 1357 222 32 1045 288 1040 289 1044 288
444.namd 32 751 342 753 341 750 342 32 637 403 637 403 637 403
447.dealII 32 485 755 489 748 480 763 32 446 821 441 830 441 830
450.soplex 32 998 268 995 268 997 268 32 927 288 912 293 911 293
453.povray 32 379 449 367 464 366 465 32 321 530 321 531 321 531
454.calculix 32 392 673 392 673 391 674 32 376 701 376 702 377 700
459.GemsFDTD 32 1660 205 1658 205 1655 205 32 1450 234 1452 234 1450 234
465.tonto 32 774 407 787 400 780 404 32 712 442 703 448 706 446
470.lbm 32 1006 437 1008 436 1003 438 32 1003 438 1005 437 1006 437
481.wrf 32 902 396 907 394 904 395 32 904 395 906 395 903 396
482.sphinx3 32 1814 344 1816 343 1818 343 32 1392 448 1420 439 1463 426

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=28672 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1206-rate-libs-revA/32:/root/work/cpu2006v1.2/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1

C++ benchmarks:

 -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET   -march=bdver1

Fortran benchmarks:

 -Ofast   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso   -march=bdver1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso   -march=bdver1
470.lbm:  -Ofast   -CG:cmp_peep=on   -OPT:keep_ext=on   -HP:bdt=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -march=bdver1   -mso
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -IPA:plimit=1000   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:p2align=0   -CG:load_exe=1   -CG:dsched=on   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso   -march=bdver2

C++ benchmarks:

444.namd:  -Ofast   -IPA:plimit=3000   -LNO:ignore_feedback=off   -CG:local_sched_alg=0   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m   -LNO:if_select_conv=1   -OPT:alias=disjoint   -LNO:psimd_iso_unroll=ON   -march=bdver1
447.dealII:  -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=1   -LNO:simd=2   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off   -march=bdver1
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:ignore_feedback=off   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -mno-fma4   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -CG:p2align=0   -CG:p2align_split=on   -CG:dsched=on   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0   -march=bdver2

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on   -march=bdver1
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=2   -OPT:ro=3   -OPT:recip=on   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
434.zeusmp:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -IPA:plimit=1500   -HP:bdt=2m:heap=2m   -march=bdver1
437.leslie3d:  -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso   -march=bdver1
459.GemsFDTD:  -Ofast   -IPA:plimit=1500   -OPT:unroll_size=1024   -OPT:unroll_times_max=16   -LNO:fission=2   -CG:local_sched_alg=2   -HP   -march=bdver1
465.tonto:  -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -CG:local_sched_alg=3   -IPA:plimit=525   -HP:bdt=2m:heap=2m   -march=bdver1

Benchmarks using both Fortran and C:

435.gromacs:  -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m   -CG:local_sched_alg=2   -CG:load_exe=3   -GRA:unspill=on   -march=bdver1   -LNO:simd=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -LNO:pf2=0   -LNO:prefetch_ahead=4   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -CG:dsched=on   -WOPT:sib=on   -march=bdver1
454.calculix:  -Ofast   -OPT:unroll_size=256   -OPT:alias=disjoint   -GRA:optimize_boundary=on   -CG:dsched=on   -HP:bdt=2m:heap=2m   -march=bdver1
481.wrf:  -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -HP   -WOPT:sib=on   -march=bdver1

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.xml.
