SPEC® CFP2006 Result

Copyright 2006-2013 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 740 Express (4.2 GHz, 16 core, SLES)

CPU2006 license: 11 Test date: Jan-2013
Test sponsor: IBM Corporation Hardware Availability: Feb-2013
Tested by: IBM Corporation Software Availability: Dec-2012

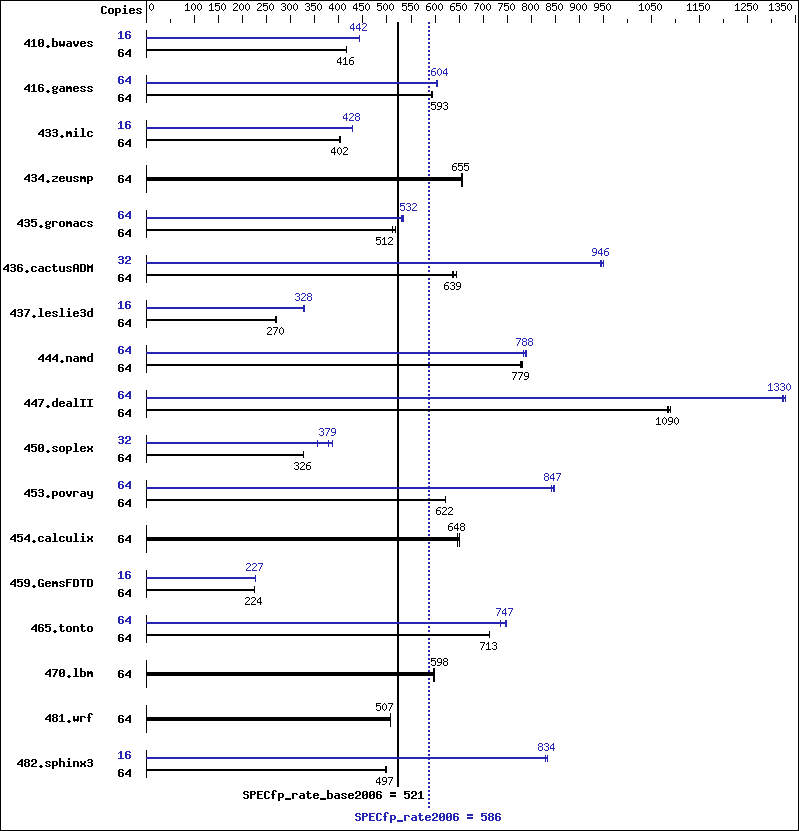

Benchmark results graph
Hardware
CPU Name: POWER7+
CPU Characteristics: Intelligent Energy Optimization enabled,
up to 4.540 GHz
CPU MHz: 4228
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 8, 16 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 10 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (32 x 4 GB) DDR3 1066 MHz
Disk Subsystem: 5 x 146.8 GB Raid0 SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 SP2
(ppc64) kernel 3.0.42-0.7-ppc64
Compiler: C/C++: Version 12.1 of IBM XL C/C++ for Linux;
Fortran: Version 14.1 of IBM XL Fortran for Linux
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, version 5.6.1-7
-MicroQuill SmartHeap 9
-Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 2090 416 2088 417 2088 416 16 491 443 492 442 492 442
416.gamess 64 2113 593 2110 594 2113 593 64 2075 604 2075 604 2073 604
433.milc 64 1461 402 1460 403 1460 402 16 343 428 343 428 343 429
434.zeusmp 64 890 654 889 655 887 656 64 890 654 889 655 887 656
435.gromacs 64 893 512 883 518 892 512 64 856 534 859 532 862 530
436.cactusADM 64 1201 637 1186 645 1198 639 32 404 946 405 944 403 950
437.leslie3d 64 2241 268 2230 270 2226 270 16 459 327 459 328 459 328
444.namd 64 659 779 657 781 659 778 64 649 791 651 788 655 784
447.dealII 64 676 1080 674 1090 673 1090 64 552 1330 553 1320 551 1330
450.soplex 64 1639 326 1636 326 1640 325 32 751 356 704 379 691 386
453.povray 64 549 621 547 623 547 622 64 401 848 404 842 402 847
454.calculix 64 815 648 811 651 816 647 64 815 648 811 651 816 647
459.GemsFDTD 64 3034 224 3034 224 3034 224 16 750 226 749 227 749 227
465.tonto 64 883 713 884 713 883 713 64 841 748 855 736 843 747
470.lbm 64 1469 599 1472 597 1471 598 64 1469 599 1472 597 1471 598
481.wrf 64 1411 507 1408 508 1411 507 64 1411 507 1408 508 1411 507
482.sphinx3 64 2509 497 2505 498 2512 497 16 376 829 374 834 374 835

Compiler Invocation Notes

  C/C++ compiler updated to December 2012 PTF
  Version: 12.01.0000.0002
  Fortran compiler updated to December 2012 PTF
  Version: 14.01.0000.0002

Peak Tuning Notes

 Post-Link optimization tool used for:
 433.milc 435.gromacs 450.soplex 482.sphinx3
      with options -O4 -nodp
 434.zeusmp
      with options -O4 -vrox -nodp
  437.leslie3d
       with options -O3 -lu -1 -nodp -sdp 9
  444.namd
       with options -O3 -lu -1 -nodp -sdp 9
  450.soplex
      with options -O4 -nodp
 465.tonto
    with options -O4
 482.sphinx3
     with options -O4 -nodp

Submit Notes

  The config file option 'submit' was used
  to assign benchmark copy to specific kernel thread using
  the "numactl" command (see flags file for details).

Operating System Notes

  ulimit -s (stack) set to 1048576.

  Large pages reserved as follows by root user:
  echo 4224 > /proc/sys/vm/nr_hugepages

  The Apache C++ Standard Library V4.2.1 was installed from
  http://stdcxx.apache.org/download.html using:
  gmake BUILDTYPE=8d CONFIG=gcc.config

  The following environment varibles were set before the runspec command:
    export HUGETLB_VERBOSE=0
    export HUGETLB_MORECORE=yes
    export HUGETLB_ELFMAP=RW
    export XLFRTEOPTS=intrinthds=1

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

C++ benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -qrtti   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Fortran benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Benchmarks using both Fortran and C:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align   -qalias=nostd

Base Other Flags

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

Benchmarks using both Fortran and C:

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -DSPEC_CPU_LP64   -qfixed   -qextname
437.leslie3d:  -qfixed
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs
470.lbm:  basepeak = yes
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs

C++ benchmarks:

444.namd:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs
447.dealII:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qrtti   -qcpp_stdinc=/opt/stdcxx421/include/ansi:/opt/stdcxx421/include:/opt/ibmcmp/vacpp/12.1/include   -lsmartheap   -L/opt/stdcxx421/lib   -R/opt/stdcxx421/lib   -lstd8d
450.soplex:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr7   -qtune=pwr7   -q64   -lhugetlbfs
453.povray:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -q64   -lsmartheap64

Fortran benchmarks:

410.bwaves:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsmallstack=dynlenonheap   -q64   -lhugetlbfs
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qalias=nostd   -lhugetlbfs
434.zeusmp:  basepeak = yes
437.leslie3d:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -q64   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
459.GemsFDTD:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
465.tonto:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -lhugetlbfs
436.cactusADM:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -qnostrict   -q64   -lhugetlbfs
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

Benchmarks using both Fortran and C:


The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Power.html,
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20121024.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-Power.xml,
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20121024.xml.
