SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 740 Express (4.2 GHz, 16 core, SLES,
GCC)

CPU2006 license: 11 Test date: Jan-2013
Test sponsor: IBM Corporation Hardware Availability: Feb-2013
Tested by: IBM Corporation Software Availability: Nov-2012

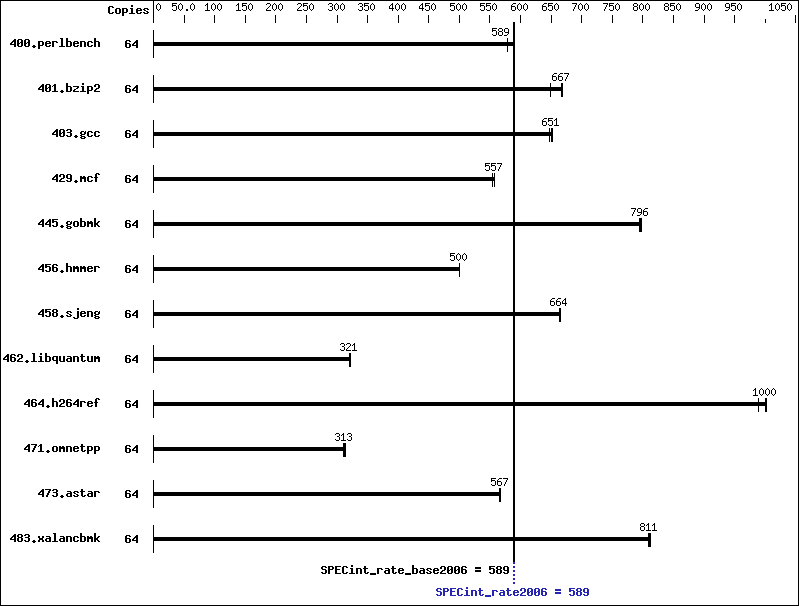

Benchmark results graph
Hardware
CPU Name: POWER7+
CPU Characteristics: Intelligent Energy Optimization enabled,
up to 4.540 GHz
CPU MHz: 4228
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 8, 16 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 10 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (32 x 4 GB) DDR3 1066 MHz
Disk Subsystem: 1 x 146.8 GB SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 SP2
(ppc64) kernel 3.0.42-0.7-ppc64
Compiler: C/C++: Version 4.7.3 of IBM
Advance Toolchain 6.0-1 gcc/g++ compiler
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: -IBM Advance Toolchain 6.0-1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 1060 590 1082 578 1062 589 64 1060 590 1082 578 1062 589
401.bzip2 64 926 667 951 650 924 668 64 926 667 951 650 924 668
403.gcc 64 789 653 795 648 791 651 64 789 653 795 648 791 651
429.mcf 64 1053 554 1047 557 1047 558 64 1053 554 1047 557 1047 558
445.gobmk 64 842 797 843 796 845 794 64 842 797 843 796 845 794
456.hmmer 64 1192 501 1194 500 1194 500 64 1192 501 1194 500 1194 500
458.sjeng 64 1164 665 1166 664 1166 664 64 1164 665 1166 664 1166 664
462.libquantum 64 4144 320 4131 321 4126 321 64 4144 320 4131 321 4126 321
464.h264ref 64 1416 1000 1433 988 1413 1000 64 1416 1000 1433 988 1413 1000
471.omnetpp 64 1285 311 1277 313 1278 313 64 1285 311 1277 313 1278 313
473.astar 64 792 567 791 568 795 565 64 792 567 791 568 795 565
483.xalancbmk 64 544 812 544 811 545 810 64 544 812 544 811 545 810

Compiler Invocation Notes

For more information about IBM Advance Toolchain, including support, see
ftp://linuxpatch.ncsa.uiuc.edu/toolchain/at/suse/SLES_11/at6.0/release_notes.at6.0-6.0-1.html

Submit Notes

  The config file option 'submit' was used
  to assign benchmark copy to specific kernel thread using
  the "numactl" command (see flags file for details).

Operating System Notes

  ulimit -s (stack) set to 1048576.

  Large pages reserved as follows by root user:
  echo 4224 > /proc/sys/vm/nr_hugepages

  The following environment varibles were set before the runspec command:
    export HUGETLB_VERBOSE=0
    export HUGETLB_MORECORE=yes

Base Compiler Invocation

C benchmarks:

 /opt/at6.0/bin/gcc

C++ benchmarks:

 /opt/at6.0/bin/g++

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_PPC
462.libquantum:  -DSPEC_CPU_LINUX
464.h264ref:  -fsigned-char
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -mcpu=power7   -mtune=power7   -m32   -ffast-math   -fpeel-loops   -funroll-loops   -mvsx   -maltivec   -ftree-vectorize   -mpopcntd   -mrecip=rsqrt   -flto   -fwhole-program   -fuse-linker-plugin   -lhugetlbfs

C++ benchmarks:

 -O3   -mcpu=power7   -mtune=power7   -m32   -ffast-math   -fpeel-loops   -funroll-loops   -mvsx   -maltivec   -ftree-vectorize   -mpopcntd   -mrecip=rsqrt   -flto   -fwhole-program   -fuse-linker-plugin   -ltcmalloc

Peak Optimization Flags

C benchmarks:

400.perlbench:  basepeak = yes
401.bzip2:  basepeak = yes
403.gcc:  basepeak = yes
429.mcf:  basepeak = yes
445.gobmk:  basepeak = yes
456.hmmer:  basepeak = yes
458.sjeng:  basepeak = yes
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Power.20130226.html,
http://www.spec.org/cpu2006/flags/IBM-Linux-AT.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-Power.20130226.xml,
http://www.spec.org/cpu2006/flags/IBM-Linux-AT.xml.
