| CPU2006 license: | 9019 | Test date: | Feb-2012 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | Nov-2012 |
| Tested by: | Cisco Systems | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-4607 |
| CPU Characteristics: | |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2,3,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1066 MHz and CL7) |
| Disk Subsystem: | 1 X 600 GB 10000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.3.293 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

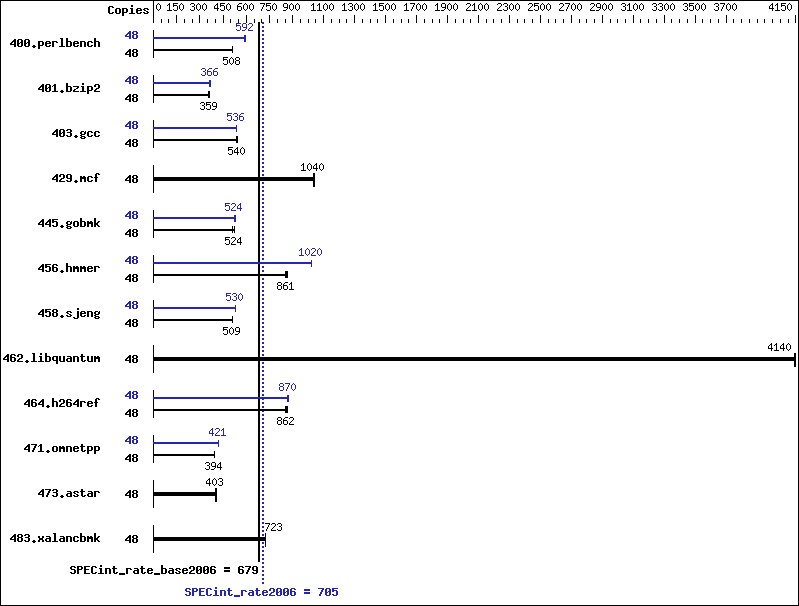

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 48 | 924 | 507 | 922 | 508 | 923 | 508 | 48 | 793 | 592 | 794 | 590 | 793 | 592 |
| 401.bzip2 | 48 | 1289 | 359 | 1289 | 359 | 1294 | 358 | 48 | 1263 | 367 | 1267 | 366 | 1275 | 363 |
| 403.gcc | 48 | 716 | 540 | 713 | 542 | 717 | 539 | 48 | 721 | 536 | 721 | 536 | 722 | 535 |
| 429.mcf | 48 | 422 | 1040 | 422 | 1040 | 422 | 1040 | 48 | 422 | 1040 | 422 | 1040 | 422 | 1040 |
| 445.gobmk | 48 | 960 | 524 | 987 | 510 | 960 | 525 | 48 | 956 | 527 | 966 | 521 | 962 | 524 |
| 456.hmmer | 48 | 519 | 863 | 520 | 861 | 526 | 852 | 48 | 439 | 1020 | 439 | 1020 | 439 | 1020 |
| 458.sjeng | 48 | 1142 | 509 | 1142 | 509 | 1142 | 509 | 48 | 1096 | 530 | 1096 | 530 | 1098 | 529 |
| 462.libquantum | 48 | 240 | 4140 | 240 | 4150 | 240 | 4140 | 48 | 240 | 4140 | 240 | 4150 | 240 | 4140 |
| 464.h264ref | 48 | 1231 | 863 | 1246 | 852 | 1232 | 862 | 48 | 1225 | 867 | 1221 | 870 | 1219 | 871 |
| 471.omnetpp | 48 | 762 | 394 | 761 | 394 | 761 | 394 | 48 | 712 | 421 | 713 | 421 | 715 | 420 |
| 473.astar | 48 | 838 | 402 | 836 | 403 | 832 | 405 | 48 | 838 | 402 | 836 | 403 | 832 | 405 |
| 483.xalancbmk | 48 | 458 | 723 | 459 | 722 | 456 | 726 | 48 | 458 | 723 | 459 | 722 | 456 | 726 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Configuration: Processor Power State C6 set to Disabled Processor Power State C1 Enhanced set to Disabled Power Technology set to Custom Energy Performance set to Performance DRAM Clock Throttling set to Performance Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost.localdomain Fri Feb 22 22:03:09 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-4607 0 @ 2.20GHz 4 "physical id"s (chips) 48 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 physical 2: cores 0 1 2 3 4 5 physical 3: cores 0 1 2 3 4 5 cache size : 12288 KB From /proc/meminfo MemTotal: 529253824 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 22 21:52 SPEC is set to: /opt/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 458G 10G 425G 3% / Additional information from dmidecode: Memory: 32x 0xCE00 M393B2G70BH0-YK0 16 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64" Intel HT Technology=enable Binaries compiled on a system with 2 X Intel Xeon E5-2690 CPU + 128 GB memory using RHEL 6.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
