| CPU2006 license: | 3175 | Test date: | Jun-2013 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | May-2012 |
| Tested by: | Huawei | Software Availability: | Feb-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2630 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

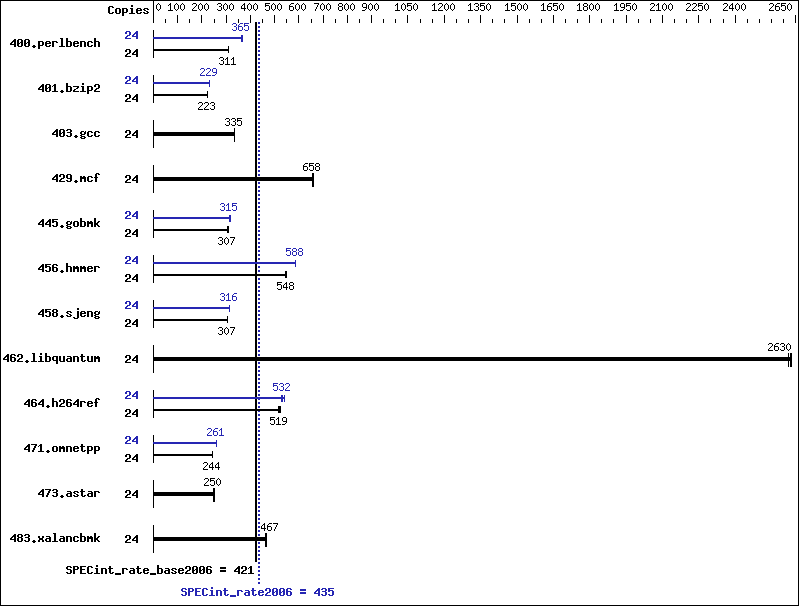

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 754 | 311 | 758 | 309 | 755 | 311 | 24 | 638 | 367 | 643 | 365 | 643 | 365 |
| 401.bzip2 | 24 | 1039 | 223 | 1034 | 224 | 1036 | 223 | 24 | 1010 | 229 | 1010 | 229 | 1007 | 230 |
| 403.gcc | 24 | 577 | 335 | 577 | 335 | 576 | 336 | 24 | 577 | 335 | 577 | 335 | 576 | 336 |
| 429.mcf | 24 | 333 | 656 | 333 | 658 | 332 | 659 | 24 | 333 | 656 | 333 | 658 | 332 | 659 |
| 445.gobmk | 24 | 816 | 308 | 820 | 307 | 820 | 307 | 24 | 799 | 315 | 798 | 315 | 795 | 317 |
| 456.hmmer | 24 | 410 | 546 | 409 | 548 | 409 | 548 | 24 | 381 | 588 | 381 | 588 | 382 | 587 |
| 458.sjeng | 24 | 945 | 307 | 948 | 306 | 945 | 307 | 24 | 922 | 315 | 920 | 316 | 920 | 316 |
| 462.libquantum | 24 | 189 | 2630 | 189 | 2630 | 190 | 2620 | 24 | 189 | 2630 | 189 | 2630 | 190 | 2620 |
| 464.h264ref | 24 | 1026 | 517 | 1017 | 522 | 1023 | 519 | 24 | 999 | 532 | 1003 | 529 | 980 | 542 |
| 471.omnetpp | 24 | 614 | 244 | 616 | 244 | 615 | 244 | 24 | 573 | 262 | 574 | 261 | 574 | 261 |
| 473.astar | 24 | 675 | 250 | 673 | 250 | 675 | 249 | 24 | 675 | 250 | 673 | 250 | 675 | 249 |
| 483.xalancbmk | 24 | 354 | 467 | 355 | 467 | 357 | 463 | 24 | 354 | 467 | 355 | 467 | 357 | 463 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Select only test related files when installing the operating system
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Baseboard Management Controller used to adjust the fan speed to 100% Sysinfo program /spec/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost Sat Jun 1 01:50:16 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2630 0 @ 2.30GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132117844 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 1 01:47 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext4 193G 23G 160G 13% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64" Binaries compiled on a system with 2 x Xeon X5645 CPU + 16GB memory using RHEL 6.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
