| CPU2006 license: | 6 | Test date: | Sep-2013 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Sep-2013 |
| Tested by: | Oracle Corporation | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2697 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 2700 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
| CPU(s) orderable: | 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 300 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Solaris 11.1 (SRU 11) |
| Compiler: | C/C++: Version 12.3 of Oracle Solaris Studio 10/13 Patch Set (tested with nightly build 20130822) |
| Auto Parallel: | Yes |
| File System: | zfs |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

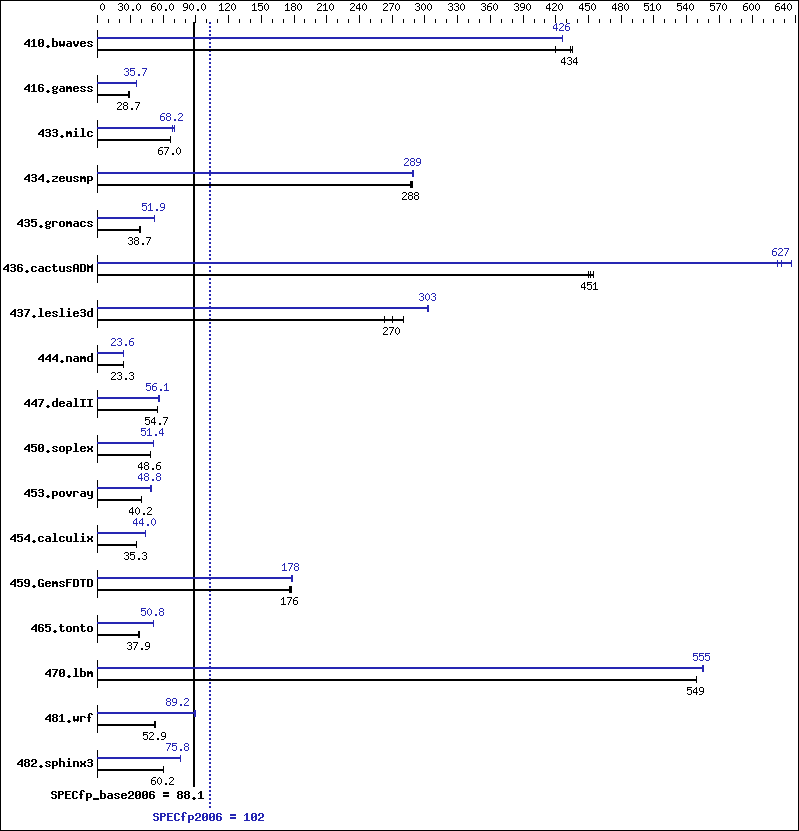

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 32.4 | 419 | 31.2 | 435 | 31.3 | 434 | 31.9 | 426 | 31.9 | 426 | 31.9 | 426 |
| 416.gamess | 683 | 28.6 | 683 | 28.7 | 683 | 28.7 | 548 | 35.7 | 548 | 35.7 | 548 | 35.7 |
| 433.milc | 137 | 66.8 | 137 | 67.0 | 137 | 67.0 | 135 | 68.1 | 131 | 70.2 | 135 | 68.2 |
| 434.zeusmp | 31.6 | 288 | 31.7 | 287 | 31.6 | 288 | 31.5 | 289 | 31.4 | 290 | 31.5 | 289 |
| 435.gromacs | 183 | 38.9 | 184 | 38.7 | 185 | 38.5 | 138 | 51.8 | 138 | 51.9 | 138 | 51.9 |
| 436.cactusADM | 26.3 | 455 | 26.5 | 450 | 26.5 | 451 | 19.2 | 624 | 18.8 | 636 | 19.1 | 627 |
| 437.leslie3d | 33.5 | 280 | 35.8 | 263 | 34.8 | 270 | 31.1 | 303 | 31.0 | 303 | 31.0 | 304 |
| 444.namd | 344 | 23.3 | 344 | 23.3 | 344 | 23.3 | 339 | 23.7 | 339 | 23.6 | 339 | 23.6 |
| 447.dealII | 209 | 54.7 | 208 | 55.1 | 209 | 54.7 | 204 | 56.0 | 203 | 56.3 | 204 | 56.1 |
| 450.soplex | 171 | 48.7 | 172 | 48.6 | 172 | 48.6 | 163 | 51.2 | 162 | 51.6 | 162 | 51.4 |
| 453.povray | 132 | 40.2 | 132 | 40.2 | 133 | 40.1 | 109 | 48.7 | 109 | 49.0 | 109 | 48.8 |
| 454.calculix | 234 | 35.3 | 234 | 35.3 | 234 | 35.3 | 187 | 44.0 | 187 | 44.0 | 187 | 44.0 |
| 459.GemsFDTD | 59.8 | 178 | 60.2 | 176 | 60.1 | 176 | 59.5 | 178 | 59.8 | 177 | 59.7 | 178 |
| 465.tonto | 260 | 37.8 | 260 | 37.9 | 260 | 37.9 | 194 | 50.8 | 194 | 50.8 | 194 | 50.8 |
| 470.lbm | 25.0 | 549 | 25.0 | 549 | 25.0 | 549 | 24.8 | 555 | 24.8 | 555 | 24.7 | 555 |
| 481.wrf | 213 | 52.5 | 210 | 53.3 | 211 | 52.9 | 125 | 89.2 | 126 | 88.5 | 124 | 90.1 |
| 482.sphinx3 | 323 | 60.3 | 324 | 60.2 | 324 | 60.1 | 257 | 75.8 | 257 | 75.8 | 257 | 75.8 |
Submit Notes
The config file option 'submit' was used to bind processes to CPU threads with pbind(1)
Operating System Notes
ulimit -s unlimited (shell): increases stack
/etc/system parameters
autoup=1000
tune_t_fsflushr=10
gzip compression set using "zfs set compression=gzip <zfs-filesystem>"
Platform Notes
Default BIOS Settings were used except:
Hyper-Threading (HT) Technology was Disabled
Sysinfo program /export/home/cpu2006v1.2/Docs/sysinfo
: 6775 2011-08-16 #f7622badcf24e01c368b1db4377c
running on bur408-94 Mon Sep 2 15:51:28 2013
This section contains SUT (System Under Test) info as seen by
some common utilities. To remove or add to this section, see:
http://www.spec.org/cpu2006/Docs/config.html#sysinfo
From /usr/sbin/psrinfo -pv
Intel(r) Xeon(r) CPU E5-2697 v2 @ 2.70GHz
x86 (GenuineIntel 306E4 family 6 model 62 step 4 clock 2693 MHz)
/usr/sbin/psrinfo -p: 2 chips
/usr/sbin/psrinfo | wc -l: 24 threads
/usr/sbin/prtconf | grep "Memory size:": 262087 Megabytes
/etc/release:
Oracle Solaris 11.1 X86
uname -a:
SunOS bur408-94 5.11 11.1 i86pc i386 i86pc
disk: df -h
Filesystem Size Used Available Capacity Mounted on
rpool/export/home 274G 33G 164G 17% /export/home
(End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: MTEXCLUSIVE = "Y" OMP_NUM_THREADS = "24" SUNW_MP_PROCBIND = "scatter" SUNW_MP_THR_IDLE = "spin"
Base Compiler Invocation
C benchmarks:
| cc |
C++ benchmarks:
| CC |
Fortran benchmarks:
| f90 |
Benchmarks using both Fortran and C:
| cc f90 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 |
| 436.cactusADM: | -DSPEC_CPU_LP64 |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_WORDS_LITTLEENDIAN |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -g -fast -xtarget=ivybridge -xipo=2 -m64 -xautopar -xreduction -xalias_level=std |
C++ benchmarks:
| -g -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -xalias_level=compatible -library=stdcxx4 |
Fortran benchmarks:
| -g -fast -xtarget=ivybridge -xipo=2 -m64 -xautopar -xreduction -xpagesize=2M |
Benchmarks using both Fortran and C:
| -g -fast(cc) -xtarget=ivybridge -xipo=2 -m64 -xautopar -xreduction -xalias_level=std -fast(f90) -xpagesize=2M |
Peak Compiler Invocation
C benchmarks:
| cc |
C++ benchmarks:
| CC |
Fortran benchmarks:
| f90 |
Benchmarks using both Fortran and C:
| cc f90 |
Peak Portability Flags
| 436.cactusADM: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_WORDS_LITTLEENDIAN |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
Fortran benchmarks:
| 410.bwaves: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=4K -xautopar -xreduction |
| 416.gamess: | -g -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -xunroll=1 -xvector=no%simd -xprefetch=no%auto |
| 434.zeusmp: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -xautopar -xreduction |
| 437.leslie3d: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xipo=2 -m64 -xautopar -xreduction -lmtmalloc |
| 459.GemsFDTD: | Same as 434.zeusmp |
| 465.tonto: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xtarget=ivybridge -xpagesize=2M -O3 -m64 -stackvar -xprefetch=no%auto -xalias -xautopar -xreduction -Qoption iropt -Aparallel:nthreads=12 -lfast_r |
Benchmarks using both Fortran and C:
| 435.gromacs: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xtarget=ivybridge -xipo=2 -m64 -xpagesize=2M -fsimple=2 -Qoption ube -fsimple=3 -O4 -xautopar -xreduction -Qoption iropt -Aparallel:nthreads=12 -lmtmalloc |
| 436.cactusADM: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xtarget=ivybridge -m64 -xautopar -xreduction -xpagesize=2M -lumem -lmvec -xprefetch_level=3 |
| 454.calculix: | -g -fast(cc) -fast(f90) -xtarget=ivybridge -xipo=0 -m64 -xpagesize=2M -xprefetch_level=2 -xprefetch_auto_type=indirect_array_access -Qoption ube -xprefetch_mult=24 -xunroll=2 |
| 481.wrf: | -g -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -xtarget=ivybridge -O4 -xchip=nehalem -xarch=sse4_2 -xipo=2 -m64 -xpagesize=2M -xprefetch=no%auto -xautopar -xreduction -Qoption iropt -Aparallel:nthreads=12 |
