| CPU2006 license: | 19 | Test date: | Sep-2013 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Oct-2013 |
| Tested by: | Fujitsu | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2630L v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (16 x 16 GB 2Rx4 PC3-14900R-13, ECC, running at 1600 MHz and CL11) |
| Disk Subsystem: | 1 x SATA, 450 GB, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.11.1.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

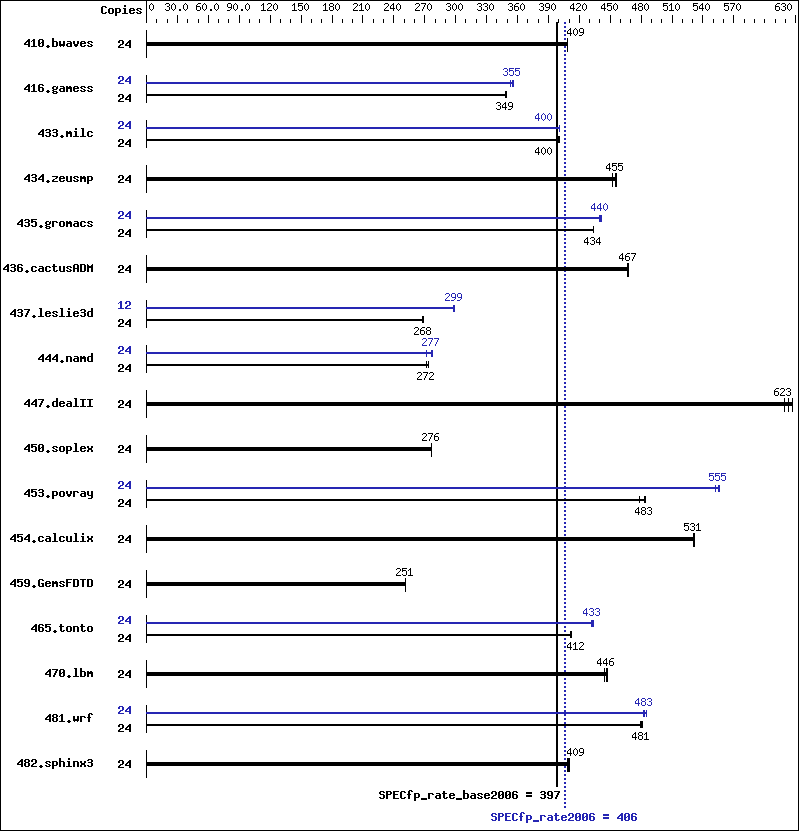

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 24 | 799 | 408 | 798 | 409 | 798 | 409 | 24 | 799 | 408 | 798 | 409 | 798 | 409 |
| 416.gamess | 24 | 1346 | 349 | 1348 | 349 | 1349 | 348 | 24 | 1323 | 355 | 1329 | 354 | 1320 | 356 |
| 433.milc | 24 | 550 | 400 | 551 | 400 | 551 | 400 | 24 | 550 | 400 | 550 | 401 | 550 | 400 |
| 434.zeusmp | 24 | 483 | 452 | 479 | 456 | 480 | 455 | 24 | 483 | 452 | 479 | 456 | 480 | 455 |
| 435.gromacs | 24 | 395 | 434 | 395 | 433 | 395 | 434 | 24 | 388 | 442 | 390 | 439 | 389 | 440 |
| 436.cactusADM | 24 | 614 | 467 | 613 | 468 | 614 | 467 | 24 | 614 | 467 | 613 | 468 | 614 | 467 |
| 437.leslie3d | 24 | 841 | 268 | 843 | 268 | 840 | 268 | 12 | 378 | 299 | 378 | 298 | 378 | 299 |
| 444.namd | 24 | 707 | 272 | 708 | 272 | 704 | 274 | 24 | 696 | 277 | 708 | 272 | 695 | 277 |
| 447.dealII | 24 | 443 | 619 | 438 | 627 | 441 | 623 | 24 | 443 | 619 | 438 | 627 | 441 | 623 |
| 450.soplex | 24 | 725 | 276 | 725 | 276 | 723 | 277 | 24 | 725 | 276 | 725 | 276 | 723 | 277 |
| 453.povray | 24 | 264 | 483 | 264 | 485 | 267 | 478 | 24 | 231 | 552 | 229 | 556 | 230 | 555 |
| 454.calculix | 24 | 372 | 532 | 373 | 531 | 373 | 531 | 24 | 372 | 532 | 373 | 531 | 373 | 531 |
| 459.GemsFDTD | 24 | 1013 | 251 | 1015 | 251 | 1012 | 252 | 24 | 1013 | 251 | 1015 | 251 | 1012 | 252 |
| 465.tonto | 24 | 573 | 412 | 574 | 411 | 573 | 412 | 24 | 546 | 433 | 544 | 434 | 547 | 432 |
| 470.lbm | 24 | 736 | 448 | 741 | 445 | 739 | 446 | 24 | 736 | 448 | 741 | 445 | 739 | 446 |
| 481.wrf | 24 | 559 | 480 | 558 | 481 | 557 | 481 | 24 | 553 | 485 | 556 | 482 | 555 | 483 |
| 482.sphinx3 | 24 | 1141 | 410 | 1143 | 409 | 1146 | 408 | 24 | 1141 | 410 | 1143 | 409 | 1146 | 408 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Energy Performance = Performance
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64:/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 |
