CPU2006 license: | 55 | Test date: | Sep-2013 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2013 |
Tested by: | Dell Inc. | Software Availability: | Sep-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2660 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.00 GHz |
CPU MHz: | 2200 |
FPU: | Integrated |
CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 25 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC3-14900R-13, ECC) |
Disk Subsystem: | 1 x 1 TB 7200 RPM SATA |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP3 (x86_64) 3.0.76-0.11-default |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

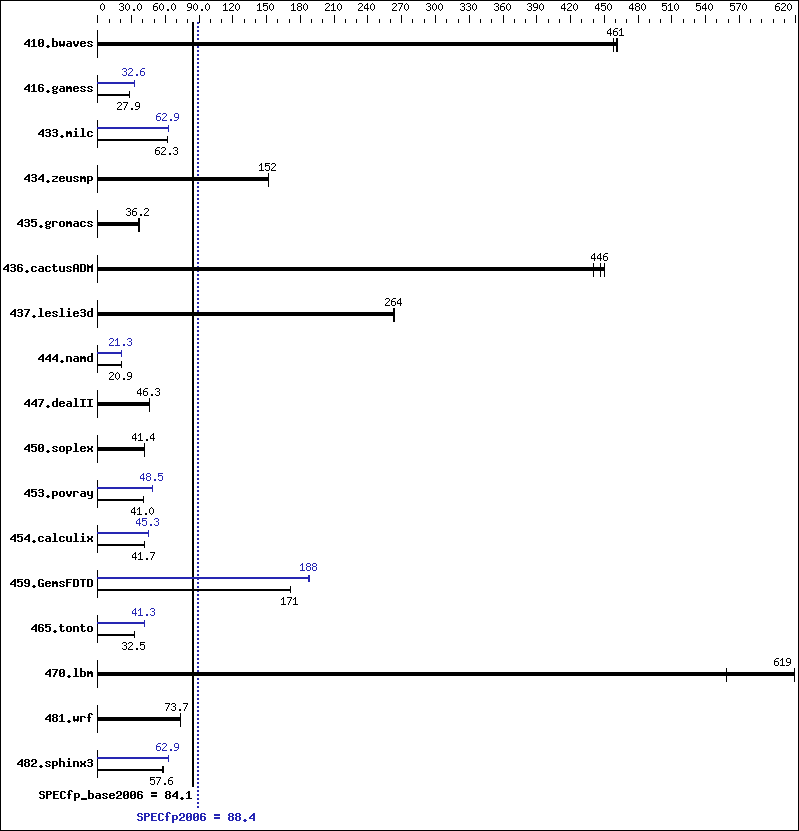

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 29.5 | 461 | 29.5 | 461 | 29.7 | 458 | 29.5 | 461 | 29.5 | 461 | 29.7 | 458 |
416.gamess | 702 | 27.9 | 702 | 27.9 | 702 | 27.9 | 599 | 32.7 | 602 | 32.5 | 601 | 32.6 |
433.milc | 147 | 62.3 | 147 | 62.3 | 148 | 62.2 | 146 | 62.9 | 146 | 62.9 | 146 | 62.9 |
434.zeusmp | 59.9 | 152 | 59.9 | 152 | 59.9 | 152 | 59.9 | 152 | 59.9 | 152 | 59.9 | 152 |
435.gromacs | 197 | 36.2 | 195 | 36.7 | 197 | 36.2 | 197 | 36.2 | 195 | 36.7 | 197 | 36.2 |
436.cactusADM | 26.8 | 446 | 27.2 | 440 | 26.6 | 450 | 26.8 | 446 | 27.2 | 440 | 26.6 | 450 |
437.leslie3d | 35.6 | 264 | 35.6 | 264 | 35.8 | 262 | 35.6 | 264 | 35.6 | 264 | 35.8 | 262 |
444.namd | 383 | 20.9 | 383 | 20.9 | 383 | 20.9 | 377 | 21.3 | 377 | 21.3 | 377 | 21.3 |
447.dealII | 247 | 46.3 | 247 | 46.3 | 247 | 46.3 | 247 | 46.3 | 247 | 46.3 | 247 | 46.3 |
450.soplex | 201 | 41.4 | 201 | 41.4 | 202 | 41.3 | 201 | 41.4 | 201 | 41.4 | 202 | 41.3 |
453.povray | 130 | 41.0 | 130 | 41.0 | 130 | 41.1 | 110 | 48.4 | 110 | 48.5 | 110 | 48.6 |
454.calculix | 197 | 41.8 | 198 | 41.7 | 198 | 41.7 | 182 | 45.3 | 182 | 45.3 | 182 | 45.3 |
459.GemsFDTD | 62.0 | 171 | 62.0 | 171 | 62.0 | 171 | 56.7 | 187 | 56.5 | 188 | 56.5 | 188 |
465.tonto | 305 | 32.3 | 302 | 32.5 | 301 | 32.7 | 238 | 41.4 | 239 | 41.2 | 238 | 41.3 |
470.lbm | 22.2 | 619 | 22.2 | 619 | 24.6 | 558 | 22.2 | 619 | 22.2 | 619 | 24.6 | 558 |
481.wrf | 152 | 73.7 | 152 | 73.7 | 152 | 73.4 | 152 | 73.7 | 152 | 73.7 | 152 | 73.4 |
482.sphinx3 | 335 | 58.2 | 339 | 57.5 | 338 | 57.6 | 310 | 63.0 | 310 | 62.8 | 310 | 62.9 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS settings: Virtualization Technology disabled Execute Disable disabled Logical Processor disabled System Profile set to Performance Sysinfo program /root/cpu2006.1.2.ic13/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on linux Mon Sep 2 15:18:37 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2660 v2 @ 2.20GHz 2 "physical id"s (chips) 20 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 10 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 cache size : 25600 KB From /proc/meminfo MemTotal: 264601764 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux linux 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 2 08:59 last=S SPEC is set to: /root/cpu2006.1.2.ic13 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext2 817G 83G 734G 11% / Additional information from dmidecode: BIOS Dell Inc. 2.0.18 08/10/2013 Memory: 8x 00AD00B300AD HMT42GR7MFR4C-RD 16 GB 1866 MHz 8x 00AD04B300AD HMT42GR7AFR4C-RD 16 GB 1866 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006.1.2.ic13/libs/32:/root/cpu2006.1.2.ic13/libs/64:/root/cpu2006.1.2.ic13/sh" OMP_NUM_THREADS = "20" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
-xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
-xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | -xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
481.wrf: | basepeak = yes |
