| CPU2006 license: | 55 | Test date: | Nov-2013 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2013 |
| Tested by: | Dell Inc. | Software Availability: | Aug-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-1650 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.90 GHz |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (8 x 4 GB 1Rx8 PC3-14900R-13, ECC) |
| Disk Subsystem: | 1 x 500 GB SATA III 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 7 Professional (64-bit) SP1 |
| Compiler: | C/C++: Version 12.1.0.233 of Intel C++ Studio XE for Windows Fortran: Version 12.1.0.233 of Intel Visual Fortran Compiler for Intel64 C/C++: Version 2010 of Microsoft Visual Studio |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

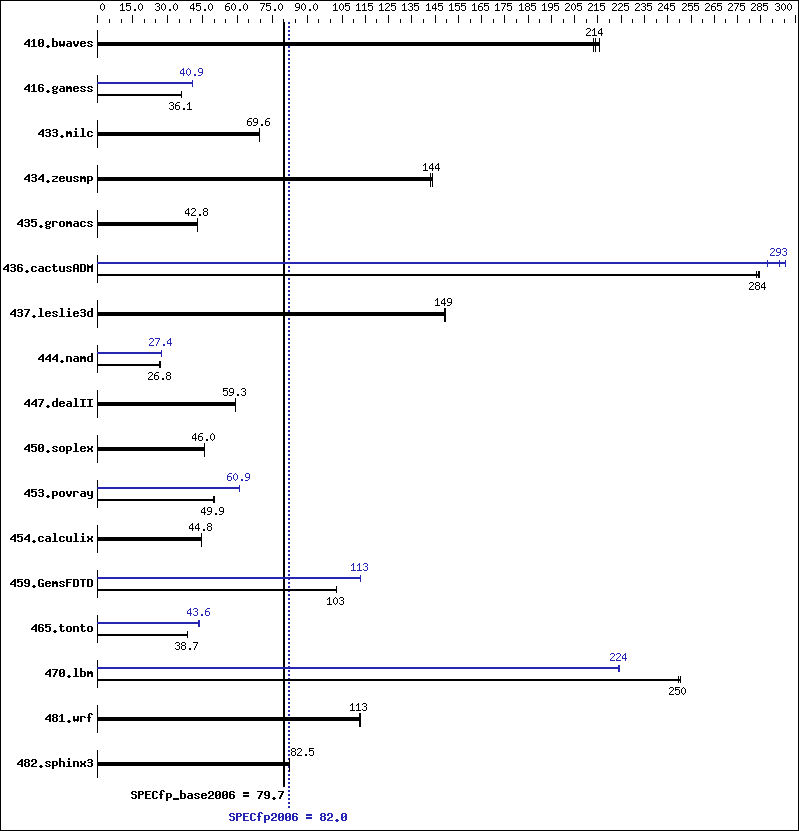

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 63.8 | 213 | 63.5 | 214 | 63.0 | 216 | 63.8 | 213 | 63.5 | 214 | 63.0 | 216 |
| 416.gamess | 541 | 36.2 | 543 | 36.1 | 542 | 36.1 | 480 | 40.8 | 478 | 40.9 | 479 | 40.9 |
| 433.milc | 132 | 69.7 | 132 | 69.6 | 132 | 69.5 | 132 | 69.7 | 132 | 69.6 | 132 | 69.5 |
| 434.zeusmp | 63.2 | 144 | 63.3 | 144 | 63.6 | 143 | 63.2 | 144 | 63.3 | 144 | 63.6 | 143 |
| 435.gromacs | 167 | 42.8 | 167 | 42.7 | 167 | 42.8 | 167 | 42.8 | 167 | 42.7 | 167 | 42.8 |
| 436.cactusADM | 42.0 | 285 | 42.1 | 284 | 42.2 | 283 | 41.5 | 288 | 40.4 | 296 | 40.8 | 293 |
| 437.leslie3d | 62.9 | 149 | 63.0 | 149 | 63.1 | 149 | 62.9 | 149 | 63.0 | 149 | 63.1 | 149 |
| 444.namd | 300 | 26.8 | 300 | 26.8 | 300 | 26.7 | 294 | 27.3 | 293 | 27.4 | 293 | 27.4 |
| 447.dealII | 193 | 59.3 | 193 | 59.3 | 193 | 59.2 | 193 | 59.3 | 193 | 59.3 | 193 | 59.2 |
| 450.soplex | 182 | 45.9 | 181 | 46.0 | 181 | 46.0 | 182 | 45.9 | 181 | 46.0 | 181 | 46.0 |
| 453.povray | 107 | 49.9 | 106 | 50.1 | 107 | 49.8 | 87.4 | 60.9 | 87.1 | 61.1 | 87.5 | 60.8 |
| 454.calculix | 184 | 44.8 | 184 | 44.8 | 184 | 44.7 | 184 | 44.8 | 184 | 44.8 | 184 | 44.7 |
| 459.GemsFDTD | 104 | 103 | 104 | 103 | 103 | 103 | 94.1 | 113 | 93.8 | 113 | 93.8 | 113 |
| 465.tonto | 255 | 38.7 | 255 | 38.6 | 254 | 38.7 | 226 | 43.6 | 226 | 43.6 | 226 | 43.5 |
| 470.lbm | 55.0 | 250 | 55.1 | 249 | 54.9 | 250 | 61.3 | 224 | 61.4 | 224 | 61.3 | 224 |
| 481.wrf | 99.1 | 113 | 99.1 | 113 | 99.0 | 113 | 99.1 | 113 | 99.1 | 113 | 99.0 | 113 |
| 482.sphinx3 | 236 | 82.5 | 237 | 82.3 | 236 | 82.6 | 236 | 82.5 | 237 | 82.3 | 236 | 82.6 |
Operating System Notes
OMP_NUM_THREADS=6 (number of cores) Set power configuration to High Performance and disabled monitor blanking and sleep timer KMP_AFFINITY=granularity=fine,scatter
Platform Notes
Sysinfo program c:\cpu2006.v1.2/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on T3610-GLDN-PC Tue Nov 19 19:56:14 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Professional OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: Dell Inc. System Model : Precision T3610 Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 62 Stepping 4 GenuineIntel ~3501 Mhz BIOS Version : Dell Inc. A03, 9/5/2013 Total Physical Memory: 32,712 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 1536 L3CacheSize : 12288 MaxClockSpeed : 3501 Name : Intel(R) Xeon(R) CPU E5-1650 v2 @ 3.50GHz NumberOfCores : 6 NumberOfLogicalProcessors: 12 (End of data from sysinfo program)
General Notes
Binaries were compiled on a Precision T1600 system with a single Xeon E3-1200 CPU and 16GB memory using Windows 7 Professional 64-bit
Base Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 -names:lowercase |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F512000000 shlw64m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Benchmarks using both Fortran and C:
| -QxAVX -Qipo -O3 -Qprec-div- -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc10 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc10 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc10 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qparallel -Qauto-ilp32 /F512000000 |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F512000000 shlw64m.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F512000000 shlw64m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qparallel /F1000000000 |
| 465.tonto: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qunroll2 -Qauto-ilp32 /F1000000000 |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
