SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C220 M3 (Intel Xeon E5-2620 v2, 2.10
GHz)

SPECint®2006 = 40.5

CPU2006 license: 9019 Test date: Dec-2013
Test sponsor: Cisco Systems Hardware Availability: Dec-2013
Tested by: Cisco Systems Software Availability: Sep-2013

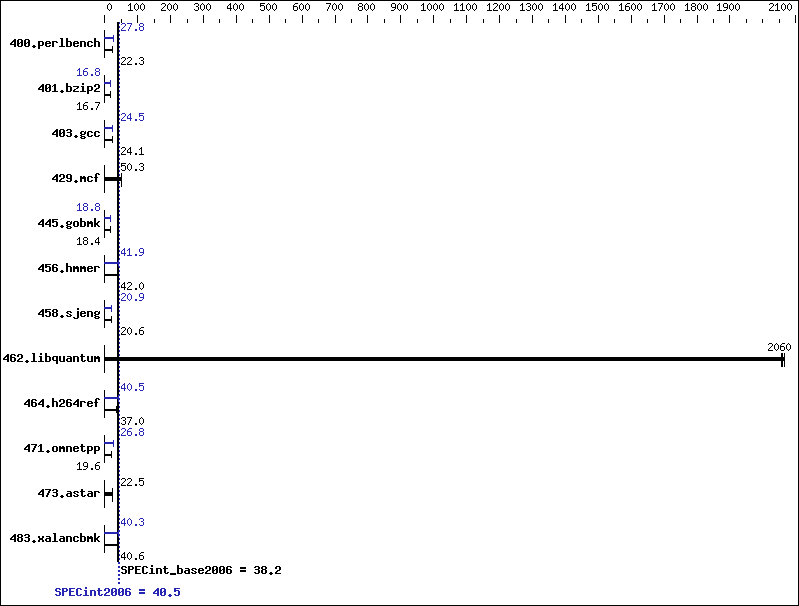

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2620 v2
CPU Characteristics: Intel Turbo Boost Technology up to 2.60 GHz
CPU MHz: 2100
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-14900R-13, ECC,
running at 1600 MHz and CL7)
Disk Subsystem: 1 X 300 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux
Auto Parallel: Yes
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.0

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 437   22.4 438   22.3 438   22.3 351   27.8 350   27.9 351   27.8
401.bzip2 580   16.7 579   16.7 578   16.7 573   16.8 573   16.8 573   16.8
403.gcc 334   24.1 333   24.2 334   24.1 328   24.5 328   24.5 328   24.6
429.mcf 181   50.3 181   50.4 184   49.6 181   50.3 181   50.4 184   49.6
445.gobmk 569   18.4 569   18.4 569   18.4 557   18.8 558   18.8 557   18.8
456.hmmer 222   42.0 223   41.9 222   42.0 222   42.0 225   41.5 223   41.9
458.sjeng 588   20.6 588   20.6 588   20.6 578   20.9 578   20.9 578   20.9
462.libquantum 10.1 2060   10.1 2060   10.0 2070   10.1 2060   10.1 2060   10.0 2070
464.h264ref 598   37.0 599   37.0 600   36.9 546   40.5 546   40.5 547   40.4
471.omnetpp 319   19.6 320   19.5 317   19.7 249   25.1 233   26.8 232   26.9
473.astar 312   22.5 315   22.3 313   22.5 312   22.5 315   22.3 313   22.5
483.xalancbmk 170   40.6 170   40.7 170   40.6 171   40.3 171   40.3 171   40.3

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel HT Technology = Disabled
CPU performance set to HPC
Power Technology set to Custom
CPU Power State C6 set to Enabled
CPU Power State C1 Enhanced set to Disabled
Energy Performance policy set to Performance
Memory RAS configuration set to Maximum Performance
DRAM Clock Throttling Set to Performance
LV DDR Mode set to Performance-mode
DRAM Refresh Rate Set to 1x
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on SL1-IVB Tue Dec 24 05:46:06 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2620 v2 @ 2.10GHz
       2 "physical id"s (chips)
       12 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 6
       physical 0: cores 0 1 2 3 4 5
       physical 1: cores 0 1 2 3 4 5
    cache size : 15360 KB

 From /proc/meminfo
    MemTotal:       132126884 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux SL1-IVB 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Dec 23 22:43

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/sdb1     ext4    275G  270G     0 100% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C220M3.1.5.2.27.071120132232 07/11/2013
   Memory:
    16x 0xAD00 HMT31GR7EFR4C-RD 8 GB 1600 MHz 2 rank

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh"
OMP_NUM_THREADS = "12"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -auto-p32

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
400.perlbench:  icc -m32
445.gobmk:  icc -m32
464.h264ref:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m32
473.astar:  icpc -m64

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div   -prof-use(pass 2)   -auto-ilp32   -opt-prefetch   -ansi-alias
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div   -inline-calloc   -opt-malloc-options=3   -auto-ilp32
429.mcf:  basepeak = yes
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -ansi-alias
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-ra-region-strategy=block    -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130717.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130717.xml.
