SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M10-4S

CPU2006 license: 19 Test date: Mar-2014
Test sponsor: Fujitsu Hardware Availability: Apr-2014
Tested by: Fujitsu Software Availability: Feb-2014

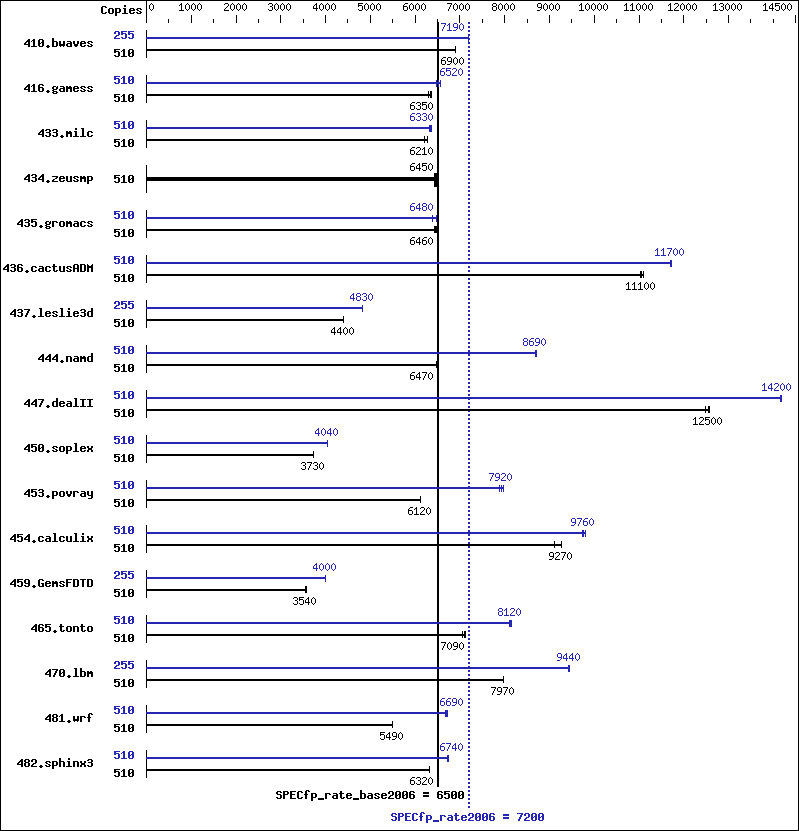

Benchmark results graph
Hardware
CPU Name: SPARC64 X+
CPU Characteristics:
CPU MHz: 3700
FPU: Integrated
CPU(s) enabled: 256 cores, 16 chips, 16 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 2 or 4 CPU chips;
each CPU chip contains 4, 8, 12, 16 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 24 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 TB (128 x 16 GB 2Rx4 PC3L-12800R-11, ECC)
Disk Subsystem: tmpfs
600 GB 10,025 RPM Toshiba MBF2600RC SAS (for
system disk)
Other Hardware: None
Software
Operating System: Solaris 11.1 SRU 15.4
Compiler: C/C++/Fortran: Version 12.3 of Oracle Solaris
Studio 10/13 Patch Set
Auto Parallel: No
File System: tmpfs (output_root was used to put run
directories in /tmp/cpu2006)
zfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 510 1004 6900 1004 6900 1004 6900 255 482 7190 482 7180 482 7190
416.gamess 510 1571 6360 1574 6350 1588 6290 510 1519 6570 1541 6480 1532 6520
433.milc 510 755 6200 754 6210 745 6280 510 736 6360 740 6320 739 6330
434.zeusmp 510 722 6430 720 6450 717 6470 510 722 6430 720 6450 717 6470
435.gromacs 510 562 6480 566 6440 564 6460 510 562 6480 562 6480 571 6380
436.cactusADM 510 550 11100 553 11000 551 11100 510 521 11700 520 11700 521 11700
437.leslie3d 510 1092 4390 1087 4410 1090 4400 255 497 4830 497 4820 497 4830
444.namd 510 632 6470 632 6470 632 6470 510 471 8690 470 8700 471 8690
447.dealII 510 465 12500 464 12600 467 12500 510 411 14200 412 14200 412 14200
450.soplex 510 1140 3730 1141 3730 1140 3730 510 1052 4040 1055 4030 1050 4050
453.povray 510 444 6120 444 6120 443 6120 510 342 7920 341 7970 344 7890
454.calculix 510 462 9100 454 9270 453 9280 510 431 9760 432 9730 429 9800
459.GemsFDTD 510 1519 3560 1528 3540 1528 3540 255 677 4000 676 4000 677 4000
465.tonto 510 705 7120 707 7090 712 7050 510 616 8150 618 8120 620 8100
470.lbm 510 878 7980 880 7960 880 7970 255 371 9450 371 9440 371 9430
481.wrf 510 1037 5490 1039 5480 1038 5490 510 853 6670 851 6690 848 6720
482.sphinx3 510 1572 6320 1573 6320 1572 6320 510 1474 6740 1477 6730 1475 6740

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
    http://stdcxx.apache.org/download.html using:
      alias gmake=specmake
      gmake BUILDTYPE=8d CONFIG=sunpro.config

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 1555200
       Causes pages older than the listed number of seconds to be written by fsflush.
    tune_t_fsflushr = 259200
       Controls how many seconds elapse between runs of the page flush daemon, fsflush.

Platform Notes

 Sysinfo program /export/cpu2006-v1.2/config/sysinfo
 $Rev: 6874 $ $Date:: 2013-11-20 #$ 748963af01bf08f8f30d41159527dd6d
 running on 4S-1044-D0 Sat Mar  1 16:02:58 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-X+ (chipid 0, clock 3700 MHz)
    SPARC64-X+ (chipid 1, clock 3700 MHz)
    SPARC64-X+ (chipid 10, clock 3700 MHz)
    SPARC64-X+ (chipid 11, clock 3700 MHz)
    SPARC64-X+ (chipid 12, clock 3700 MHz)
    SPARC64-X+ (chipid 13, clock 3700 MHz)
    SPARC64-X+ (chipid 14, clock 3700 MHz)
    SPARC64-X+ (chipid 15, clock 3700 MHz)
    SPARC64-X+ (chipid 2, clock 3700 MHz)
    SPARC64-X+ (chipid 3, clock 3700 MHz)
    SPARC64-X+ (chipid 4, clock 3700 MHz)
    SPARC64-X+ (chipid 5, clock 3700 MHz)
    SPARC64-X+ (chipid 6, clock 3700 MHz)
    SPARC64-X+ (chipid 7, clock 3700 MHz)
    SPARC64-X+ (chipid 8, clock 3700 MHz)
    SPARC64-X+ (chipid 9, clock 3700 MHz)
    16 chips
    512 threads
    3700 MHz

 From kstat:      256 cores

 From prtconf: 2091264 Megabytes

 /etc/release:
      Oracle Solaris 11.1 SPARC
 uname -a:
    SunOS 4S-1044-D0 5.11 11.1 sun4v sparc sun4v

 disk: df -h  $SPEC
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G   121G       350G    26%    /export

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -M map.bssalign   -lbsdmalloc

C++ benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=compatible   -library=no%Cstd,no%stlport4   -I/export/cpu2006-v1.2/stdcxx-4.2.1/include   -I/export/cpu2006-v1.2/stdcxx-4.2.1/build/include   -M map.bssalign   -L/export/cpu2006-v1.2/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.2/stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xvector=%none   -M map.bssalign

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xvector=%none   -M map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -fsimple=1   -W2,-Ainline:rs=400   -Qoption cg -Qms_pipe+alldoall   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -W2,-Asac   -M map.bssalign
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xpagesize=256M   -M map.256M.align   -lbsdmalloc
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xunroll=8   -xprefetch=latx:0.6   -M map.bssalign   -lbsdmalloc

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -xprefetch=no%auto   -Qoption cg -Qms_pipe+alldoall   -library=stlport4   -M map.bssalign
447.dealII:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=compatible   -xrestrict   -xprefetch=no%auto   -library=no%Cstd,no%stlport4   -I/export/cpu2006-v1.2/stdcxx-4.2.1/include   -I/export/cpu2006-v1.2/stdcxx-4.2.1/build/include   -M map.bssalign   -L/export/cpu2006-v1.2/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.2/stdcxx-4.2.1/build/lib   -lstd8d
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -library=stlport4   -xO3   -xunroll=8   -xrestrict   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3   -xprefetch=latx:0.2   -M map.bssalign   -lbsdmalloc
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xipo=2   -xalias_level=compatible   -xlinkopt=2   -xprefetch=no%auto   -xunroll=7   -Qoption iropt -Ainline:rs=1024   -Qoption iropt -Ainline:cs=1024   -Qoption iropt -Ainline:inc=900   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -library=stlport4   -M map.bssalign   -lfast

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xunroll=4   -xvector=%none   -xprefetch=no%auto   -M map.bssalign
416.gamess:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xprefetch=no%auto   -xunroll=6   -M map.bssalign
434.zeusmp:  basepeak = yes
437.leslie3d:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xunroll=2   -xvector=%none   -xprefetch=latx:0.8   -Qoption cg -Qms_pipe+alldoall   -M map.bssalign
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xunroll=9   -xprefetch=latx:0.2   -xprefetch_level=3   -Qoption cg -Qlp-av=128   -Qoption iropt -Rujam   -M map.bssalign
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xO4   -xunroll=3   -xprefetch=no%auto   -M map.bssalign   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xvector=%none   -M map.bssalign
436.cactusADM:  -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xunroll=16   -xprefetch=latx:1.4   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -W2,-Asac   -M map.256M.align   -lbsdmalloc
454.calculix:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=strong   -xprefetch=latx:2.0   -stackvar   -M map.bssalign
481.wrf:  -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xunroll=9   -xprefetch=latx:0.4   -Qoption iropt -Rujam   -xO4   -M map.bssalign

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20140423.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20140423.xml.
