SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M10-4

CPU2006 license: 19 Test date: Apr-2014
Test sponsor: Fujitsu Hardware Availability: Apr-2014
Tested by: Fujitsu Software Availability: Feb-2014

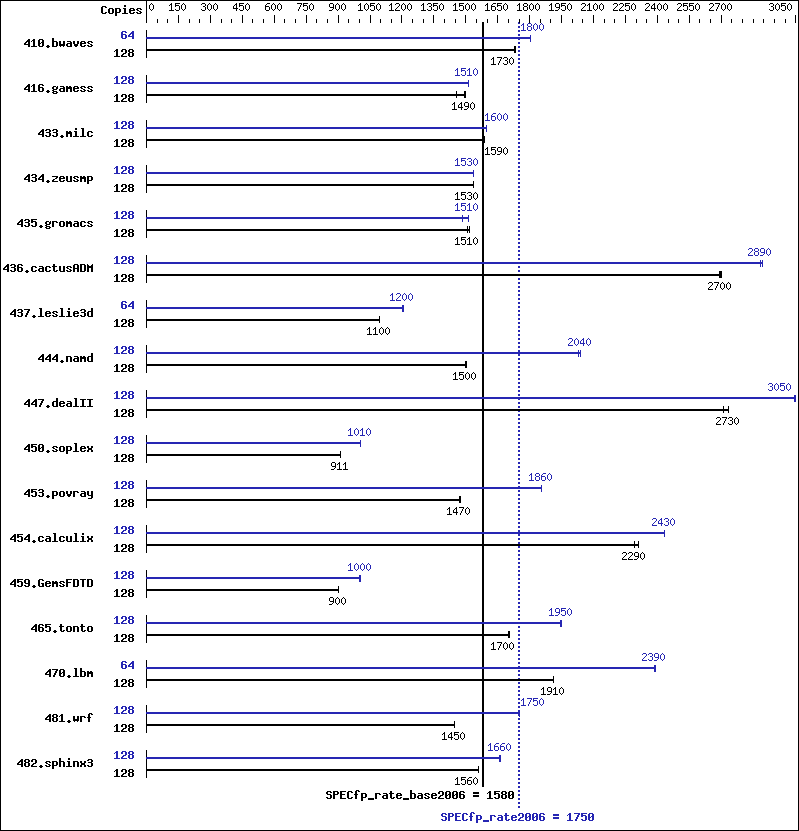

Benchmark results graph
Hardware
CPU Name: SPARC64 X+
CPU Characteristics:
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip, 2 threads/core
CPU(s) orderable: 2 or 4 CPU chips; each CPU chip contains 4, 8,
12, 16 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 24 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx4 PC3L-12800R-11, ECC)
Disk Subsystem: tmpfs
600 GB 10,025 RPM Toshiba MBF2600RC SAS (for
system disk)
Other Hardware: None
Software
Operating System: Solaris 11.1 SRU 15.4
Compiler: C/C++/Fortran: Version 12.3 of Oracle Solaris
Studio
10/13 Patch Set
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 128 1006 1730 1005 1730 1005 1730 64 482 1800 482 1800 482 1800
416.gamess 128 1677 1490 1672 1500 1719 1460 128 1656 1510 1657 1510 1658 1510
433.milc 128 740 1590 740 1590 740 1590 128 735 1600 735 1600 735 1600
434.zeusmp 128 758 1540 759 1530 759 1530 128 759 1530 759 1530 759 1530
435.gromacs 128 607 1510 602 1520 606 1510 128 604 1510 615 1490 605 1510
436.cactusADM 128 568 2690 567 2700 567 2700 128 529 2890 530 2880 530 2890
437.leslie3d 128 1099 1100 1101 1090 1099 1100 64 499 1200 499 1210 499 1200
444.namd 128 685 1500 684 1500 685 1500 128 504 2040 504 2040 506 2030
447.dealII 128 536 2730 536 2730 540 2710 128 481 3050 480 3050 480 3050
450.soplex 128 1172 911 1172 911 1172 911 128 1063 1000 1061 1010 1062 1010
453.povray 128 463 1470 463 1470 462 1480 128 367 1860 367 1860 367 1860
454.calculix 128 460 2290 460 2290 457 2310 128 434 2430 434 2430 434 2430
459.GemsFDTD 128 1508 900 1507 901 1509 900 128 1354 1000 1355 1000 1354 1000
465.tonto 128 742 1700 739 1700 740 1700 128 648 1940 646 1950 647 1950
470.lbm 128 920 1910 920 1910 920 1910 64 368 2390 368 2390 369 2390
481.wrf 128 988 1450 988 1450 989 1450 128 816 1750 816 1750 816 1750
482.sphinx3 128 1598 1560 1600 1560 1598 1560 128 1502 1660 1503 1660 1501 1660

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 1555200
       Causes pages older than the listed number of seconds to be written by fsflush.
    tune_t_fsflushr = 259200
       Controls how many seconds elapse between runs of the page flush daemon, fsflush.

Platform Notes

 Sysinfo program /export/cpu2006-v1.2/config/sysinfo
 $Rev: 6874 $ $Date:: 2013-11-20 #$ 5ec117938769af2bf59ae0ed87ea9ccd
 running on solaris Mon Apr 14 16:58:47 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-X+ (chipid 0, clock 3400 MHz)
    SPARC64-X+ (chipid 1, clock 3400 MHz)
    SPARC64-X+ (chipid 2, clock 3400 MHz)
    SPARC64-X+ (chipid 3, clock 3400 MHz)
    4 chips
    128 threads
    3400 MHz

 From kstat:       64 cores

 From prtconf: 522240 Megabytes

 /etc/release:
      Oracle Solaris 11.1 SPARC
 uname -a:
    SunOS solaris 5.11 11.1 sun4v sparc sun4v

 disk: df -h  $SPEC
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G    27G       442G     6%    /export

 (End of data from sysinfo program)

General Notes

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -M map.bssalign   -lbsdmalloc

C++ benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=compatible   -library=stdcxx4   -M map.bssalign

Fortran benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xvector=%none   -M map.bssalign

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xvector=%none   -M map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -fsimple=1   -W2,-Ainline:rs=400   -Qoption cg -Qms_pipe+alldoall   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -W2,-Asac   -M map.bssalign
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xpagesize=256M   -M map.256M.align   -lbsdmalloc
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xunroll=8   -xprefetch=latx:0.6   -M map.bssalign   -lbsdmalloc

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -xprefetch=no%auto   -Qoption cg -Qms_pipe+alldoall   -library=stlport4   -M map.bssalign
447.dealII:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=compatible   -xrestrict   -xprefetch=no%auto   -library=stdcxx4   -M map.bssalign
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -library=stlport4   -xO3   -xunroll=8   -xrestrict   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3   -xprefetch=latx:0.2   -M map.bssalign   -lbsdmalloc
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xipo=2   -xalias_level=compatible   -xlinkopt=2   -xprefetch=no%auto   -xunroll=7   -Qoption iropt -Ainline:rs=1024   -Qoption iropt -Ainline:cs=1024   -Qoption iropt -Ainline:inc=900   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -library=stlport4   -M map.bssalign   -lfast

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xunroll=4   -xvector=%none   -xprefetch=no%auto   -M map.bssalign
416.gamess:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xprefetch=no%auto   -xunroll=6   -M map.bssalign
434.zeusmp:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xvector=%none   -M map.bssalign
437.leslie3d:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xunroll=2   -xvector=%none   -xprefetch=latx:0.8   -Qoption cg -Qms_pipe+alldoall   -M map.bssalign
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xunroll=9   -xprefetch=latx:0.2   -xprefetch_level=3   -Qoption cg -Qlp-av=128   -Qoption iropt -Rujam   -M map.bssalign
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xO4   -xunroll=3   -xprefetch=no%auto   -M map.bssalign   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xvector=%none   -M map.bssalign
436.cactusADM:  -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xunroll=16   -xprefetch=latx:1.4   -Wc,-Qpeep-Ex:minmax_use_cmov=2   -Wc,-Qms_pipe+ulmscc=1   -W2,-Asac   -M map.256M.align   -lbsdmalloc
454.calculix:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=strong   -xprefetch=latx:2.0   -stackvar   -M map.bssalign
481.wrf:  -fast(cc)   -fast(f90)   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xunroll=9   -xprefetch=latx:0.4   -Qoption iropt -Rujam   -xO4   -M map.bssalign

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Fortran benchmarks:

 -xjobs=8

Benchmarks using both Fortran and C:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20140423.html,
http://www.spec.org/cpu2006/flags/Fujitsu-Mseries.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20140423.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-Mseries.xml.
