| CPU2006 license: | 3 | Test date: | Apr-2014 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Feb-2014 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4860 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 48 cores, 4 chips, 12 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC3-14900R-13, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 x 400 GB SSD SAS, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP3 Kernel 3.0.76-0.11-default |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

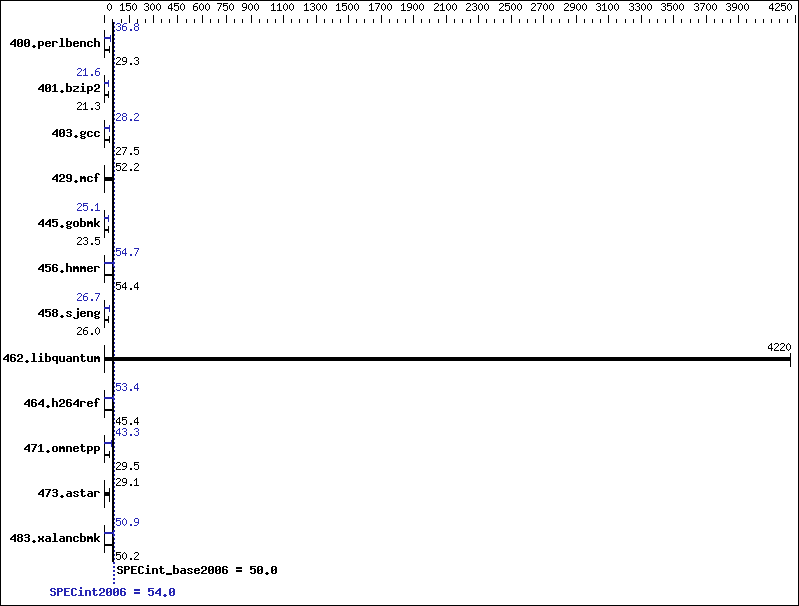

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 334 | 29.3 | 333 | 29.3 | 334 | 29.3 | 266 | 36.8 | 266 | 36.8 | 266 | 36.7 |
| 401.bzip2 | 452 | 21.3 | 452 | 21.3 | 452 | 21.4 | 446 | 21.6 | 447 | 21.6 | 446 | 21.6 |
| 403.gcc | 293 | 27.4 | 293 | 27.5 | 292 | 27.5 | 285 | 28.2 | 286 | 28.2 | 285 | 28.2 |
| 429.mcf | 175 | 52.2 | 174 | 52.3 | 175 | 52.2 | 175 | 52.2 | 174 | 52.3 | 175 | 52.2 |
| 445.gobmk | 446 | 23.5 | 447 | 23.5 | 447 | 23.5 | 419 | 25.1 | 419 | 25.1 | 419 | 25.1 |
| 456.hmmer | 171 | 54.4 | 171 | 54.4 | 170 | 54.9 | 171 | 54.7 | 170 | 54.7 | 171 | 54.5 |
| 458.sjeng | 465 | 26.0 | 463 | 26.1 | 465 | 26.0 | 453 | 26.7 | 453 | 26.7 | 454 | 26.7 |
| 462.libquantum | 4.91 | 4220 | 4.91 | 4220 | 4.91 | 4220 | 4.91 | 4220 | 4.91 | 4220 | 4.91 | 4220 |
| 464.h264ref | 489 | 45.3 | 487 | 45.4 | 488 | 45.4 | 414 | 53.5 | 414 | 53.4 | 414 | 53.4 |
| 471.omnetpp | 212 | 29.4 | 212 | 29.5 | 212 | 29.5 | 145 | 43.2 | 143 | 43.6 | 144 | 43.3 |
| 473.astar | 241 | 29.1 | 242 | 29.1 | 242 | 29.0 | 241 | 29.1 | 242 | 29.1 | 242 | 29.0 |
| 483.xalancbmk | 138 | 50.2 | 136 | 50.7 | 139 | 49.6 | 136 | 50.9 | 136 | 50.9 | 135 | 51.1 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> Disabled unused Linux services through "stop_services.sh" before running.
Platform Notes
BIOS Configuration: HP Power Profile set to Maximum Performance Minimum Processor Idle Power Core State set to C6 State to Enabled Minimum Processor Idle Power Packages State set to Package C6 (non-retention) State Collaborative Power Control set to Disabled Thermal Configuration set to Maximum Cooling Processor Power and Utilization Monitoring set to Disabled Memory Refresh Rate set to Disabled Sysinfo program /cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on DL580-Gen8-sr Mon Apr 14 21:15:28 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-4860 v2 @ 2.60GHz 4 "physical id"s (chips) 96 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 2: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 3: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 30720 KB From /proc/meminfo MemTotal: 1058855444 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux DL580-Gen8-sr 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Apr 14 15:30 last=S SPEC is set to: /cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext3 365G 14G 333G 5% / Additional information from dmidecode: BIOS HP P79 02/21/2014 Memory: 64x HP 712383-081 16 GB 1333 MHz 32x UNKNOWN NOT AVAILABLE (End of data from sysinfo program) Regarding the sysinfo display about the memory installed, the correct amount of memory is 1 TB and the dmidecode description should have one line reading as: 64x HP 712383-081 16 GB 1333 MHz 2 rank
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/cpu2006/libs/32:/cpu2006/libs/64:/cpu2006/sh" OMP_NUM_THREADS = "48" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
