SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power S824 (3.5 GHz, 24 core)

CPU2006 license: 11 Test date: Apr-2014
Test sponsor: IBM Corporation Hardware Availability: Jun-2014
Tested by: IBM Corporation Software Availability: Jun-2014

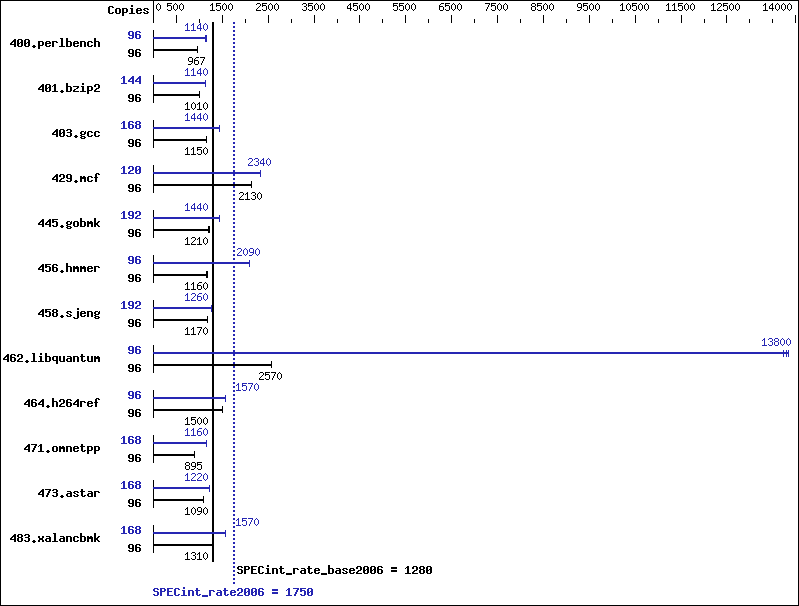

Benchmark results graph
Hardware
CPU Name: POWER8
CPU Characteristics: Intelligent Energy Optimization enabled,
up to 3.92 GHz
CPU MHz: 3525
FPU: Integrated
CPU(s) enabled: 24 cores, 4 chips, 6 cores/chip, 8 threads/core
CPU(s) orderable: 2 Modules
Primary Cache: 32 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per core
Other Cache: 16 MB I+D off chip per CDIMM
Memory: 512 GB (16 x 32 GB CDIMMs) DDR3 1600 MHz
Disk Subsystem: 5 x 300 GB 15K RPM SAS SFF-2 Raid0
Other Hardware: None
Software
Operating System: IBM AIX V7.1
Compiler: C/C++: Version 13.1 of IBM XL C/C++ for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 96 971 966 969 968 970 967 96 818 1150 820 1140 819 1140
401.bzip2 96 920 1010 922 1010 920 1010 144 1222 1140 1228 1130 1223 1140
403.gcc 96 674 1150 674 1150 675 1150 168 937 1440 935 1450 938 1440
429.mcf 96 412 2130 411 2130 412 2130 120 469 2330 468 2340 468 2340
445.gobmk 96 828 1220 831 1210 833 1210 192 1404 1430 1401 1440 1400 1440
456.hmmer 96 768 1170 773 1160 772 1160 96 428 2100 429 2090 428 2090
458.sjeng 96 993 1170 996 1170 992 1170 192 1842 1260 1840 1260 1839 1260
462.libquantum 96 774 2570 775 2570 775 2570 96 144 13800 145 13700 144 13800
464.h264ref 96 1412 1500 1413 1500 1412 1500 96 1352 1570 1348 1580 1353 1570
471.omnetpp 96 670 896 672 893 670 895 168 906 1160 903 1160 906 1160
473.astar 96 620 1090 621 1090 622 1080 168 970 1220 970 1220 973 1210
483.xalancbmk 96 506 1310 507 1310 506 1310 168 738 1570 737 1570 739 1570

Peak Tuning Notes

 400.perlbench fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 401.bzip2 fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 403.gcc fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 429.mcf fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 456.hmmer fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 458.sjeng fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 462.libquantum fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 464.h264ref fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 471.omnetpp fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 473.astar fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox
 483.xalancbmk fdpr options: -O4 -m power8 -A 2 -rcl 2 -sls -dir -vrox

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

 AIX updated to V7.1 TL3 SP3

 All ulimits set to unlimited.
 Set 8 threads per core via "smtctl -t 8 -w boot"

 19200 16M large pages defined with vmo command

General Notes

Environment variables set by runspec before the start of the run:
MALLOCOPTIONS = "pool"
MEMORY_AFFINITY = "MCM"
XLFRTEOPTS = "intrinthds=1"

Base Compiler Invocation

C benchmarks:

 /opt/IBM/xlc/13.1.0/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /opt/IBM/xlC/13.1.0/bin/xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Base Optimization Flags

C benchmarks:

 -qinline=40   -qipa=threads   -bmaxdata:0x50000000   -qlargepage   -O5   -qvecnvol   -D_ILS_MACROS   -qalias=noansi   -qalloca   -blpdata

C++ benchmarks:

 -qinline=40   -qipa=threads   -bmaxdata:0x20000000   -qlargepage   -O5   -qvecnvol   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Base Other Flags

C benchmarks:

 -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /opt/IBM/xlc/13.1.0/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /opt/IBM/xlC/13.1.0/bin/xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
403.gcc:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -qinline=40   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -D_ILS_MACROS   -qalias=noansi   -qfdpr   -blpdata   -btextpsize:64K
401.bzip2:  -qinline=40   -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qsimd=noauto   -qlargepage   -D_ILS_MACROS   -qfdpr   -blpdata   -btextpsize:64K
403.gcc:  -qinline=40   -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qvecnvol   -q64   -qlargepage   -D_ILS_MACROS   -qalloca   -qfdpr   -blpdata   -btextpsize:64K
429.mcf:  -qinline=40   -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qvecnvol   -qlargepage   -qprefetch=dscr=84   -D_ILS_MACROS   -qfdpr   -blpdata   -btextpsize:64K
445.gobmk:  -qinline=40   -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qvecnvol   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
456.hmmer:  -qinline=40   -qipa=threads   -O5   -qvecnvol   -qlargepage   -qassert=refalign   -D_ILS_MACROS   -qfdpr   -blpdata   -btextpsize:64K
458.sjeng:  -qinline=40   -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qprefetch=dscr=84   -D_ILS_MACROS   -qfdpr   -blpdata   -btextpsize:64K
462.libquantum:  -qinline=40   -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd=noauto   -qinline=400   -q64   -qlargepage   -D_ILS_MACROS   -qfdpr   -blpdata   -btextpsize:64K
464.h264ref:  -qinline=40   -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qvecnvol   -D_ILS_MACROS   -qfdpr   -blpdata   -btextpsize:64K

C++ benchmarks:

471.omnetpp:  -qinline=40   -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd=noauto   -qarch=pwr7   -qtune=pwr7   -qprefetch=dscr=84   -D_ILS_MACROS   -qfdpr   -qalign=natural   -qrtti=all   -qinlglue   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
473.astar:  -qinline=40   -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qvecnvol   -qlargepage   -qprefetch=dscr=147   -D_ILS_MACROS   -qfdpr   -qinlglue   -qalign=natural   -blpdata   -btextpsize:64K
483.xalancbmk:  -qinline=40   -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qsimd   -qvecnvol   -qlargepage   -qprefetch=dscr=147   -D_ILS_MACROS   -qfdpr   -qinlglue   -D__IBM_FAST_VECTOR   -blpdata   -btextpsize:64K

Peak Other Flags

C benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
400.perlbench:  -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.V13.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.V7.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.V13.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.V7.xml.
