| CPU2006 license: | 13 | Test date: | Jun-2014 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2014 |
| Tested by: | Intel Corporation | Software Availability: | Oct-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Celeron G1840 |
| CPU Characteristics: | |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 2 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 TB Seagate SATA HDD, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600 |
| Compiler: | C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

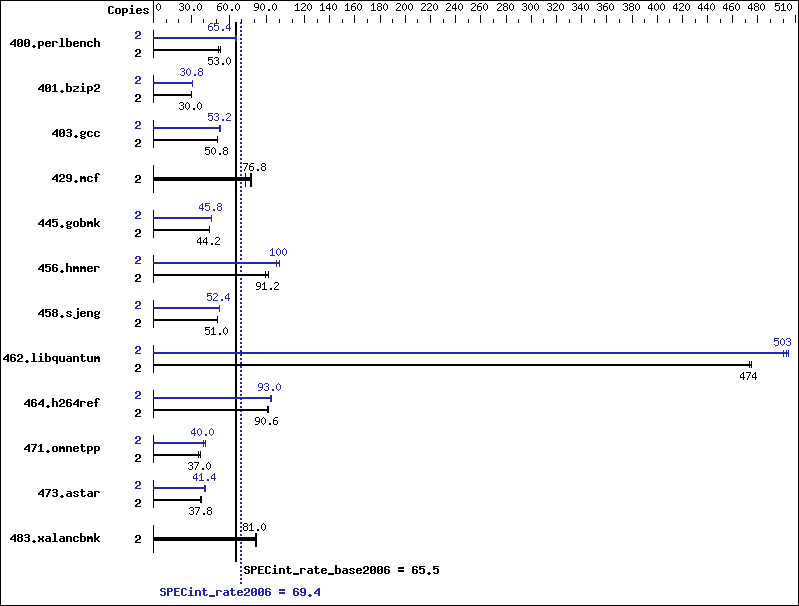

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 377 | 51.8 | 369 | 53.0 | 367 | 53.2 | 2 | 299 | 65.4 | 298 | 65.6 | 299 | 65.4 |
| 401.bzip2 | 2 | 641 | 30.0 | 639 | 30.2 | 642 | 30.0 | 2 | 630 | 30.6 | 627 | 30.8 | 628 | 30.8 |
| 403.gcc | 2 | 316 | 50.8 | 317 | 50.8 | 318 | 50.6 | 2 | 303 | 53.2 | 305 | 52.8 | 302 | 53.2 |
| 429.mcf | 2 | 235 | 77.6 | 251 | 72.8 | 238 | 76.8 | 2 | 235 | 77.6 | 251 | 72.8 | 238 | 76.8 |
| 445.gobmk | 2 | 473 | 44.4 | 476 | 44.2 | 475 | 44.2 | 2 | 458 | 45.8 | 459 | 45.8 | 459 | 45.8 |
| 456.hmmer | 2 | 210 | 89.0 | 205 | 91.2 | 205 | 91.2 | 2 | 186 | 100 | 191 | 97.6 | 187 | 100 |
| 458.sjeng | 2 | 476 | 50.8 | 475 | 51.0 | 475 | 51.0 | 2 | 463 | 52.4 | 464 | 52.2 | 461 | 52.6 |
| 462.libquantum | 2 | 87.2 | 475 | 87.6 | 473 | 87.5 | 474 | 2 | 82.8 | 500 | 82.4 | 503 | 82.2 | 504 |
| 464.h264ref | 2 | 491 | 90.2 | 489 | 90.6 | 487 | 91.0 | 2 | 477 | 92.8 | 472 | 93.8 | 476 | 93.0 |
| 471.omnetpp | 2 | 339 | 37.0 | 337 | 37.2 | 349 | 35.8 | 2 | 303 | 41.4 | 312 | 40.0 | 313 | 40.0 |
| 473.astar | 2 | 374 | 37.6 | 371 | 37.8 | 370 | 38.0 | 2 | 339 | 41.4 | 338 | 41.6 | 346 | 40.6 |
| 483.xalancbmk | 2 | 171 | 80.8 | 170 | 81.0 | 169 | 81.4 | 2 | 171 | 80.8 | 170 | 81.0 | 169 | 81.4 |
Compiler Invocation Notes
To compile these binaries, the Intel Compiler 14.0 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\SPEC14.0/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt10C37B4DEC70 Sat Jun 28 06:59:48 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 8.1 Pro OS Version : 6.3.9600 N/A Build 9600 System Manufacturer: ASUS System Model : All Series Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~2800 Mhz BIOS Version : American Megatrends Inc. 2001, 6/13/2014 Total Physical Memory: 8,005 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 2048 MaxClockSpeed : 2800 Name : Intel(R) Celeron(R) CPU G1840 @ 2.80GHz NumberOfCores : 2 NumberOfLogicalProcessors: 2 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc10 | |
| 473.astar: | C:\Program Files (x86)\Intel\Composer XE 2013 SP1/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
