SPEC® CINT2006 Result

Intel Corporation

ASUS H97M-PLUS Motherboard (Intel Core i5-4690)

SPECint®2006 = 59.0

SPECint_base2006 = 56.9

CPU2006 license:	13	Test date:	Jun-2014
Test sponsor:	Intel Corporation	Hardware Availability:	Jun-2014
Tested by:	Intel Corporation	Software Availability:	Oct-2013

Hardware
CPU Name:	Intel Core i5-4690
CPU Characteristics:	Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz:	3500
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx4 PC3-12800U-11)
Disk Subsystem:	1 TB Seagate SATA HDD, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600
Compiler:	C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 10.0 from http://www.microquill.com/

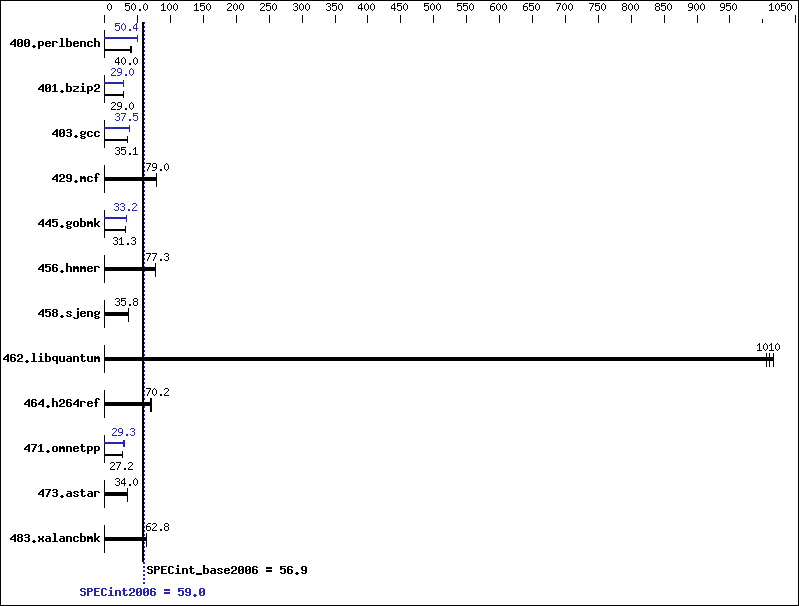

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	246	39.7	242	40.4	244	40.0	194	50.5	194	50.4	194	50.4
401.bzip2	333	29.0	333	29.0	332	29.0	333	29.0	334	28.9	331	29.2
403.gcc	229	35.1	230	35.1	230	35.0	214	37.6	215	37.5	214	37.5
429.mcf	116	78.8	115	79.0	116	79.0	116	78.8	115	79.0	116	79.0
445.gobmk	336	31.3	336	31.2	335	31.3	316	33.2	317	33.1	316	33.2
456.hmmer	121	77.3	121	77.4	121	77.0	121	77.3	121	77.4	121	77.0
458.sjeng	338	35.8	338	35.8	338	35.8	338	35.8	338	35.8	338	35.8
462.libquantum	20.6	1010	20.5	1010	20.4	1020	20.6	1010	20.5	1010	20.4	1020
464.h264ref	316	70.1	315	70.2	314	70.4	316	70.1	315	70.2	314	70.4
471.omnetpp	229	27.2	230	27.2	231	27.1	214	29.2	214	29.3	214	29.3
473.astar	206	34.0	207	33.9	206	34.1	206	34.0	207	33.9	206	34.1
483.xalancbmk	110	62.8	110	62.8	109	63.1	110	62.8	110	62.8	109	63.1

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 14.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Platform Notes

 Sysinfo program C:\SPEC14.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt10C37B4DED56 Fri Jun 27 15:39:29 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 8.1 Pro
 OS Version    : 6.3.9600 N/A Build 9600
 System Manufacturer: ASUS
 System Model  : All Series
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3501 Mhz
 BIOS Version  : American Megatrends Inc. 2001, 6/13/2014
 Total Physical Memory: 8,005 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 6144
 MaxClockSpeed : 3501
 Name          : Intel(R) Core(TM) i5-4690 CPU @ 3.50GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Base Portability Flags

400.perlbench:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 -DSPEC_CPU_NO_NEED_VA_COPY
401.bzip2:	-DSPEC_CPU_P64
403.gcc:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64
429.mcf:	-DSPEC_CPU_P64
445.gobmk:	-DSPEC_CPU_P64
456.hmmer:	-DSPEC_CPU_P64
458.sjeng:	-DSPEC_CPU_P64
462.libquantum:	-DSPEC_CPU_P64
464.h264ref:	-DSPEC_CPU_P64 -DWIN32 -DSPEC_CPU_NO_INTTYPES
471.omnetpp:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64
473.astar:	-DSPEC_CPU_P64
483.xalancbmk:	-DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE
401.bzip2:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias -Qauto-ilp32 /F512000000
403.gcc:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F512000000
429.mcf:	basepeak = yes
445.gobmk:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F512000000
456.hmmer:	basepeak = yes
458.sjeng:	basepeak = yes
462.libquantum:	basepeak = yes
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	-QxCORE-AVX2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE
473.astar:	basepeak = yes
483.xalancbmk:	basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.xml.
